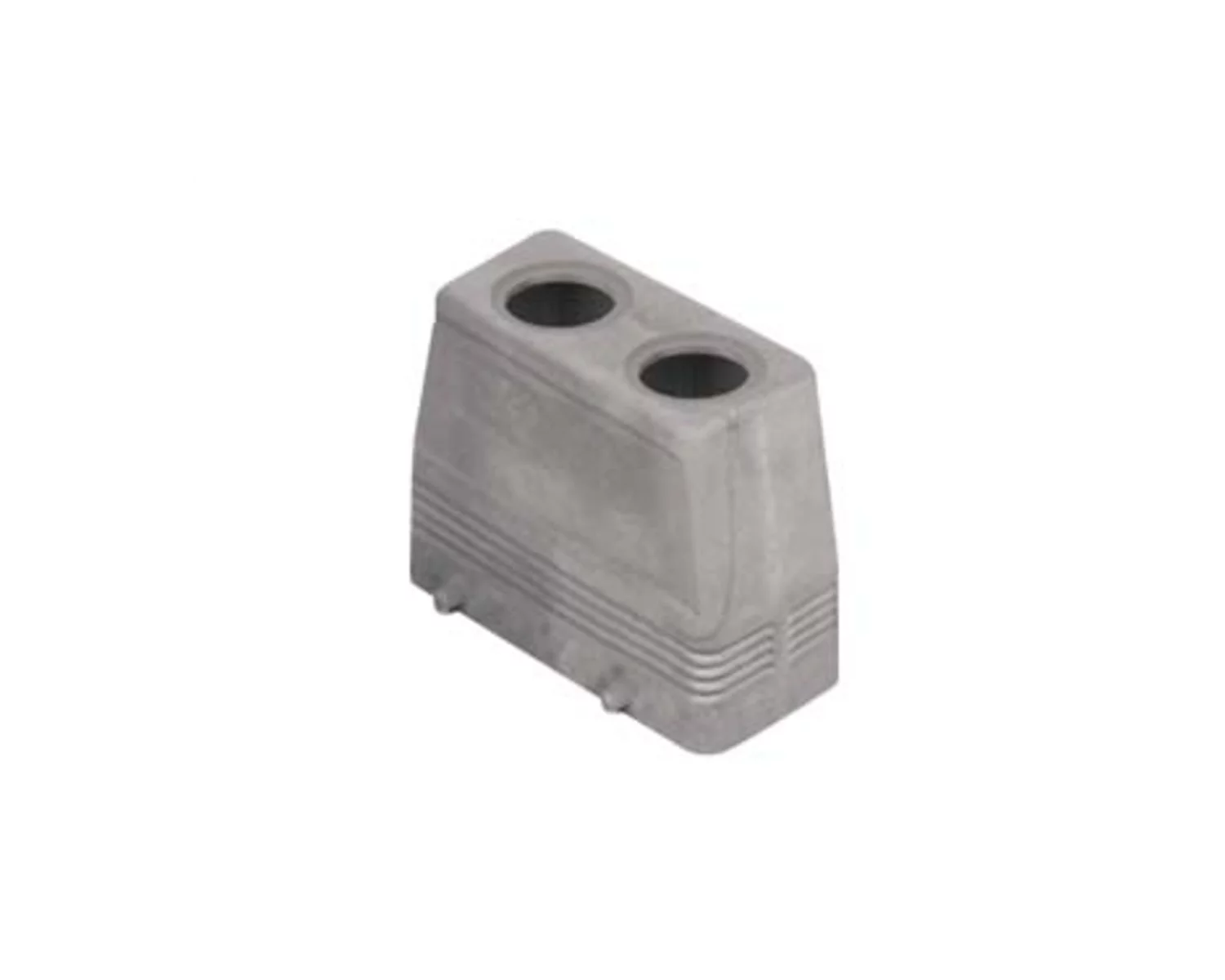

hood, high, size 57.27, EMC alu, 4 peg, 2xM20 top, without adaptor

MFVS 10.220

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	57.27
Enclosure series	EMC
Closing type	With 4 pegs
Locking mechanism	Double locking levers
Protection degree	IP65 / IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	double top cable entry
Cable entry size	M20 x 2
Position cable feed	Double top cable entry
Height	70 mm
Width	43 mm
Length	73 mm

Material housing	Aluminium
