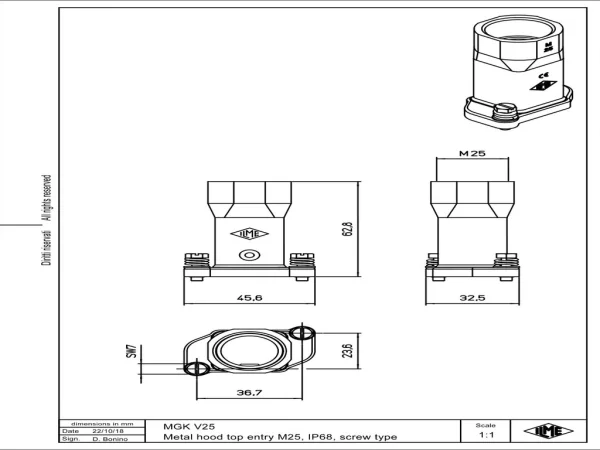

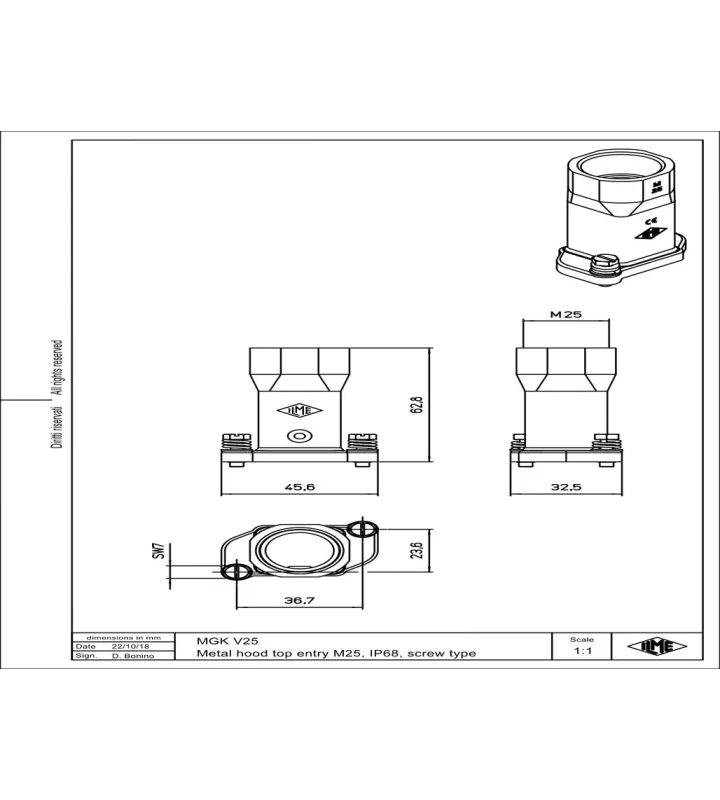

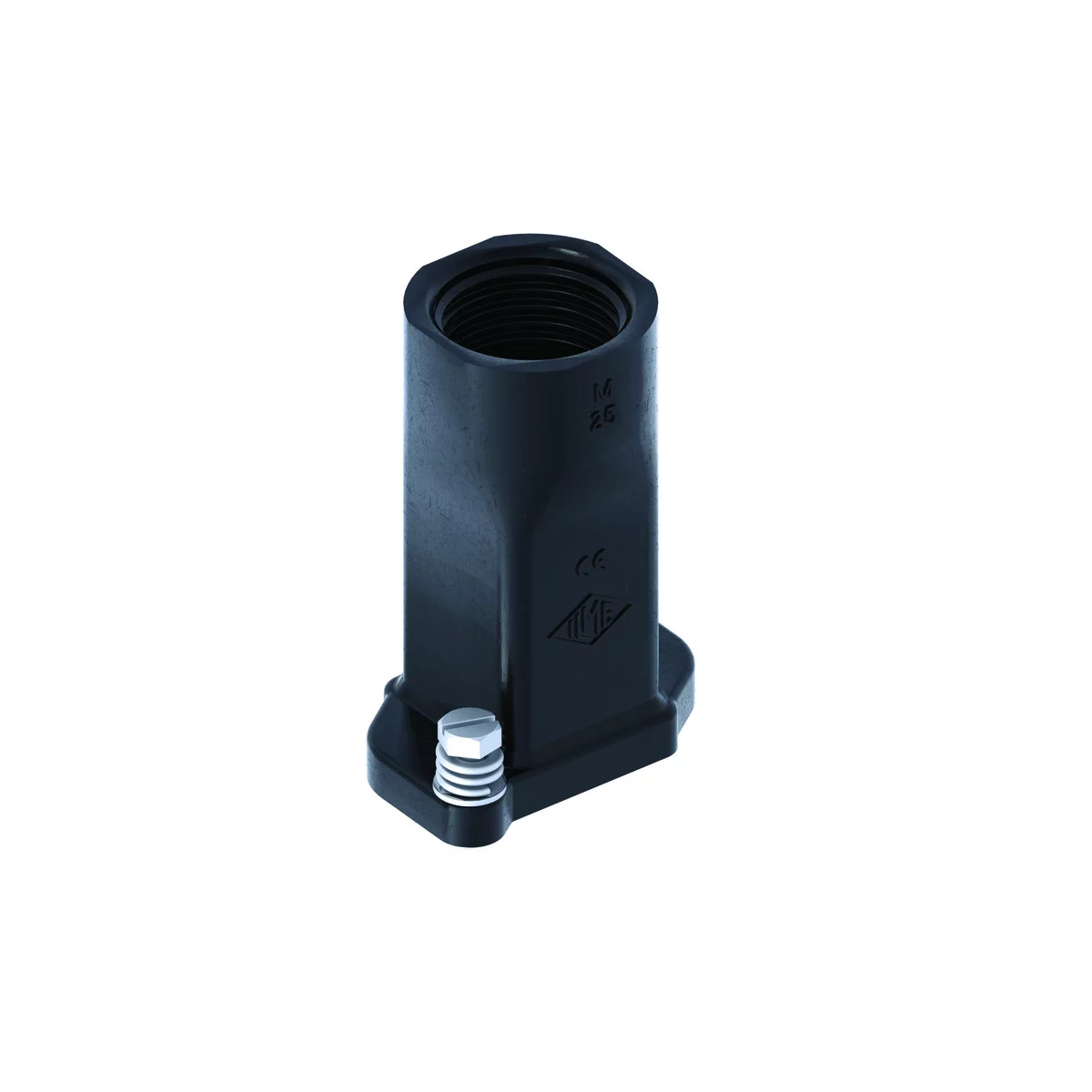

hood, size 21.21, IP68 alu, screw locking, 1xM25 top

MGK V25

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	21.21
Enclosure series	IP68
Closing type	With 2 screws
Locking mechanism	With 2 screws
Protection degree	IP66 / IP68 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	top cable entry
Cable entry size	M25
Position cable feed	Top entry
Height	62.8 mm
Width	32.5 mm
Length	45.6 mm

Material housing	Die cast aluminium alloy
Coating housing	With epoxy thermosetting powder coating
Inflammability class of insulation material acc. with UL94	V2
