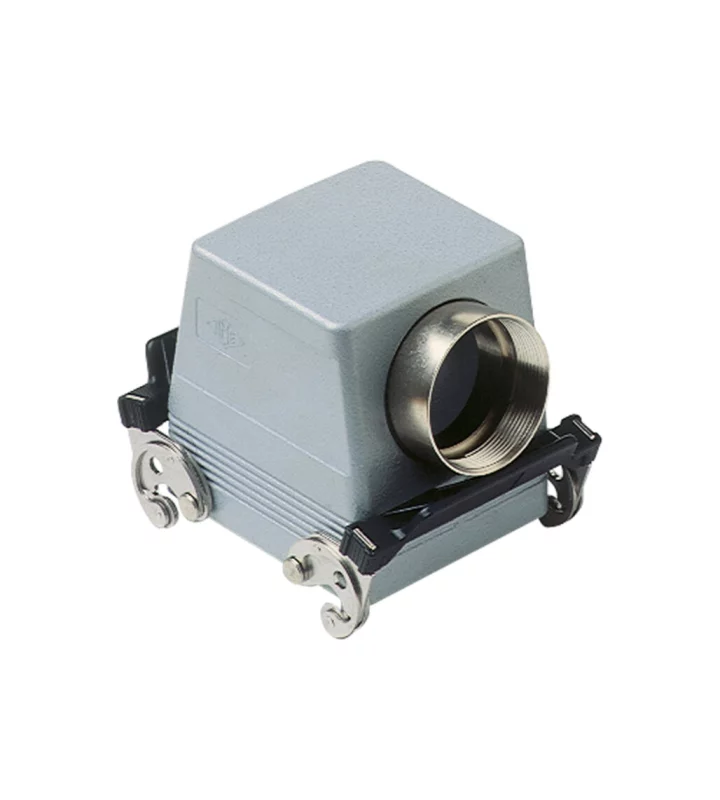

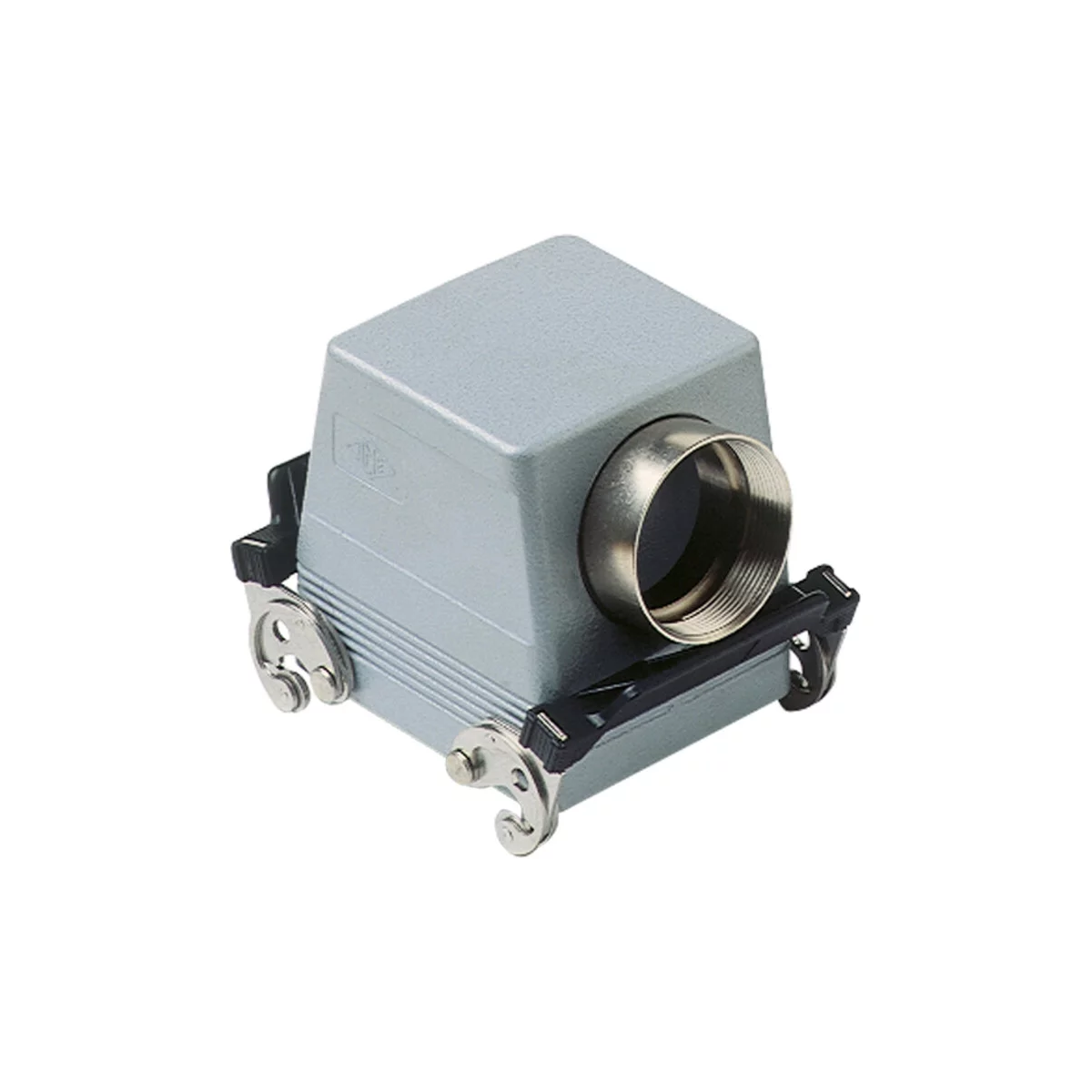

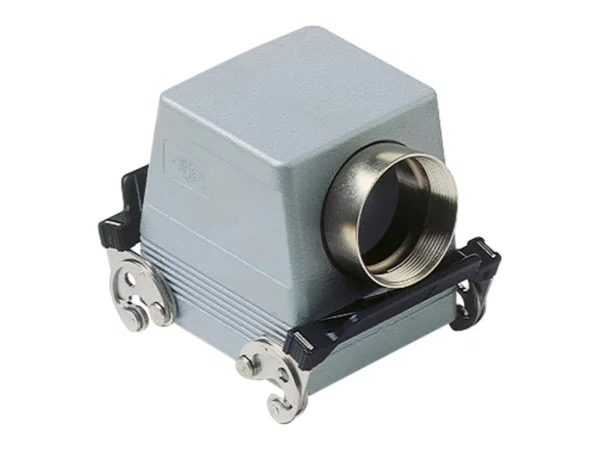

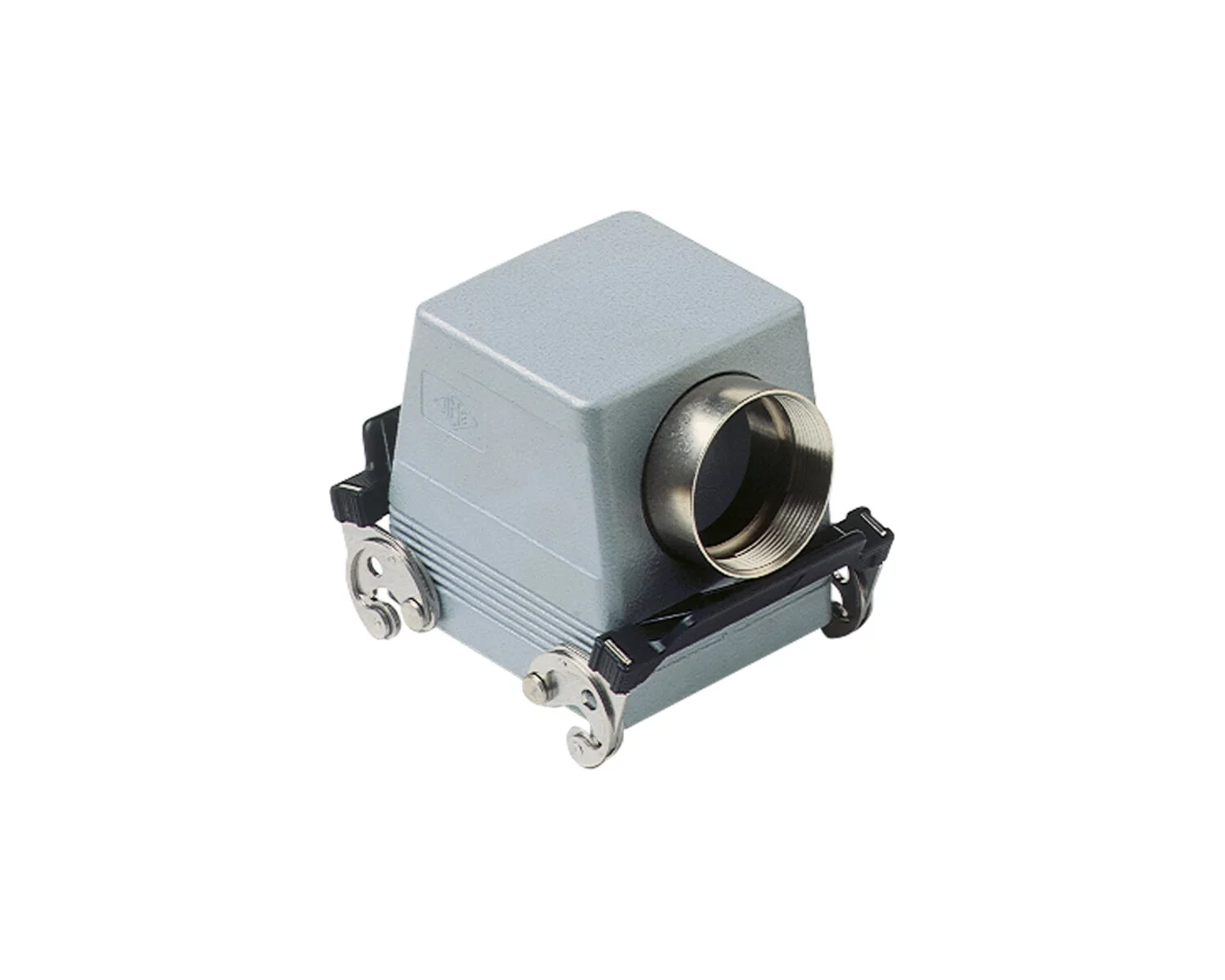

hood, size 66.40, C-TYPE alu, 2 levers, 1xM25 side
MHO 50 X25
Continue assembling your connector
Add the desired standard inserts to fully configure your connector.
Specifications
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 66.40 |
| Enclosure series | C-TYPE |
| Closing type | With 2 levers |
| Locking mechanism | Double locking levers |
| Protection degree | IP65 / IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | side cable entry |
| Cable entry size | M25 |
| Position cable feed | Side entry |

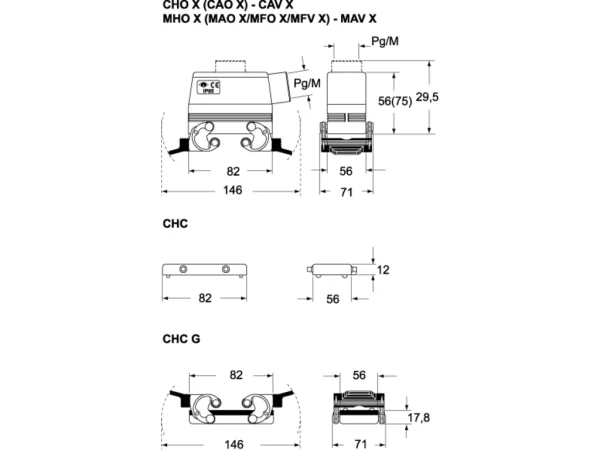

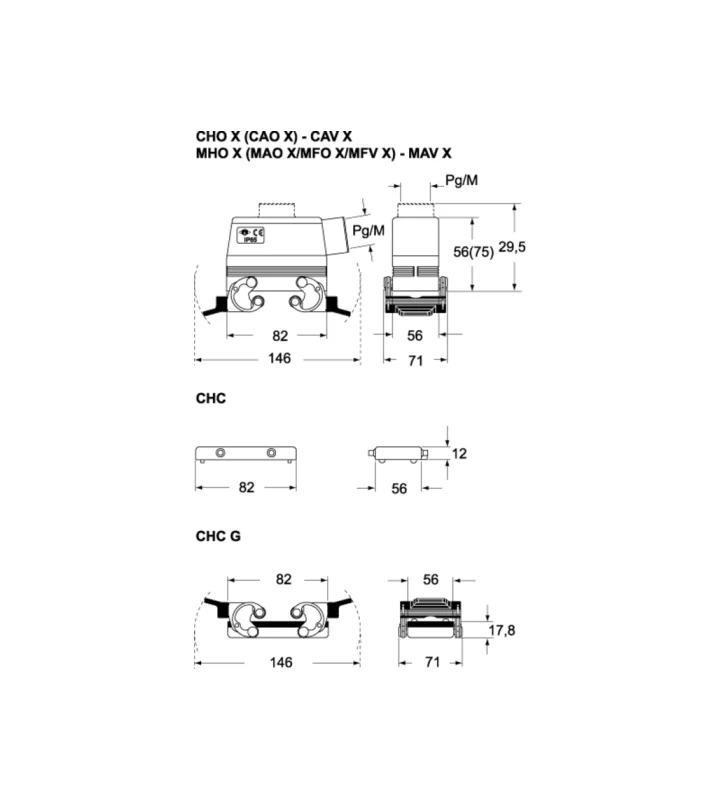

| Height | 56 mm |
| Width | 71 mm |
| Length | 82 mm |
| Remark | May be combined with enclosures: CHI 50 CS,CHP 50 CS,MHP 50 CS |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Extra information | Corrosion resistant,UV resistant,With interlocking device |
