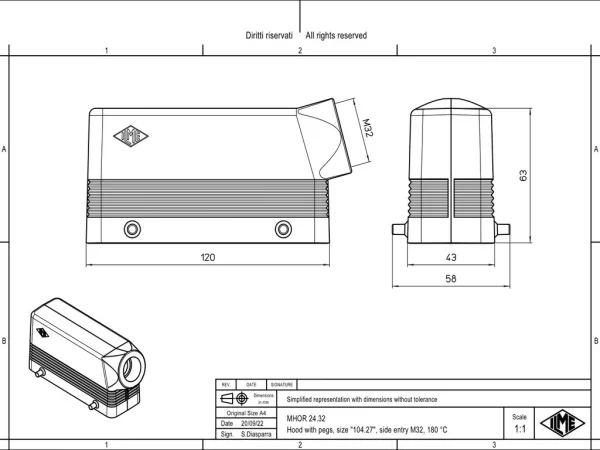

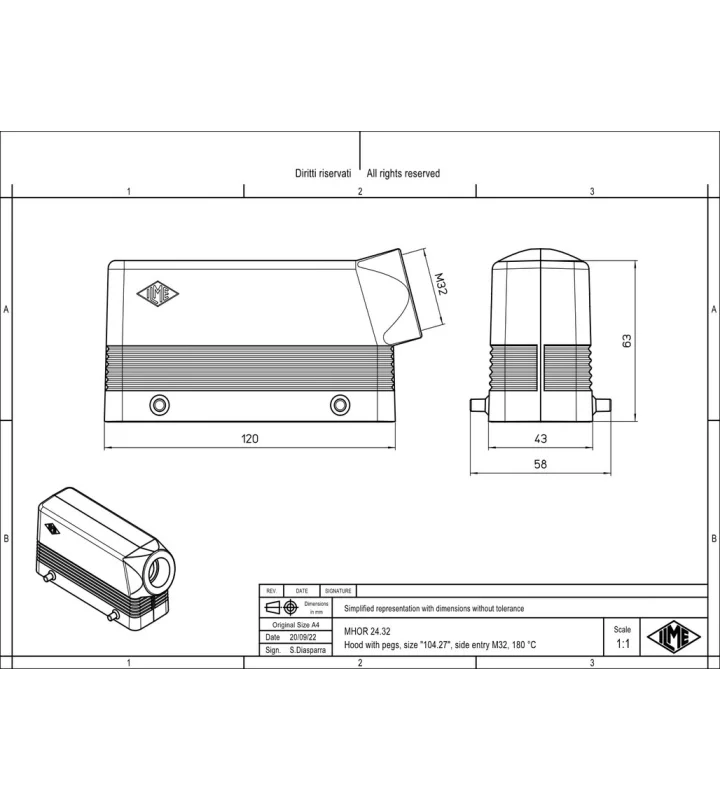

hood, size 104.27, 180 °C alu, 4 pegs, 1xM32 side

MHOR 24.32

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	104.27
Enclosure series	180°C
Closing type	With 4 pegs
Locking mechanism	Double locking levers
Protection degree	IP65
Ambient lower temperature	-40 °C
Ambient upper temperature	180 °C
Operation lower temperature	-40 °C
Operation upper temperature	180 °C
Cable entry type	side cable entry
Cable entry size	M32
Position cable feed	Side entry
Height	63 mm
Width	43 mm
Length	120 mm

Material housing	Die cast aluminium alloy
