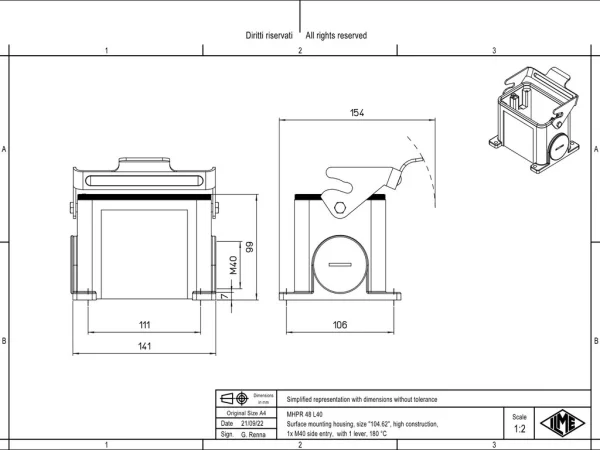

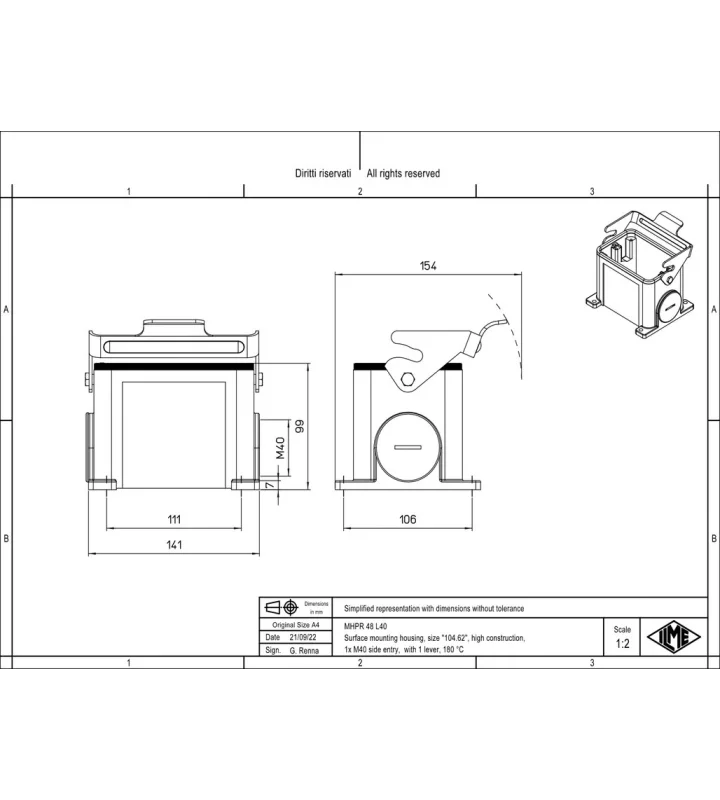

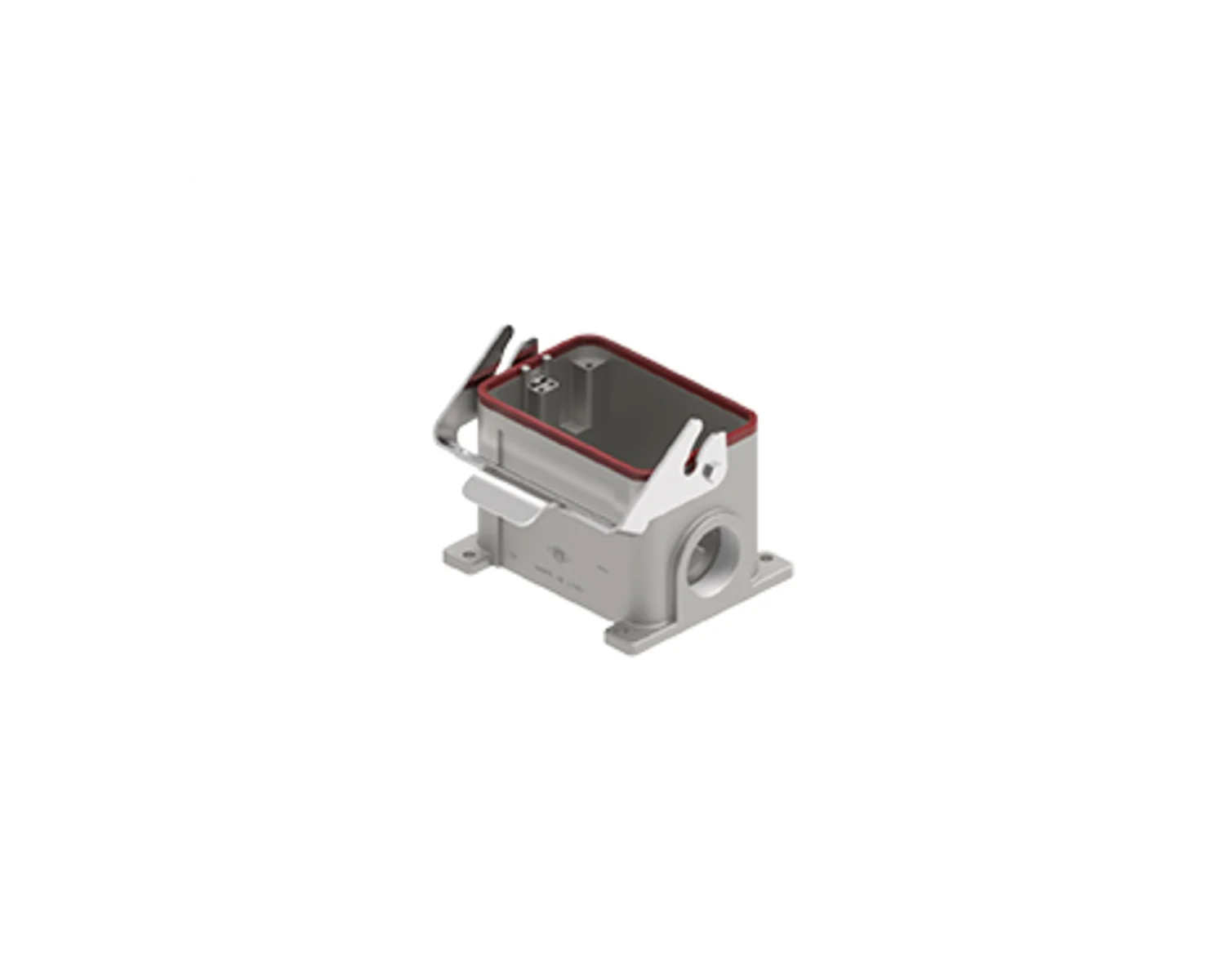

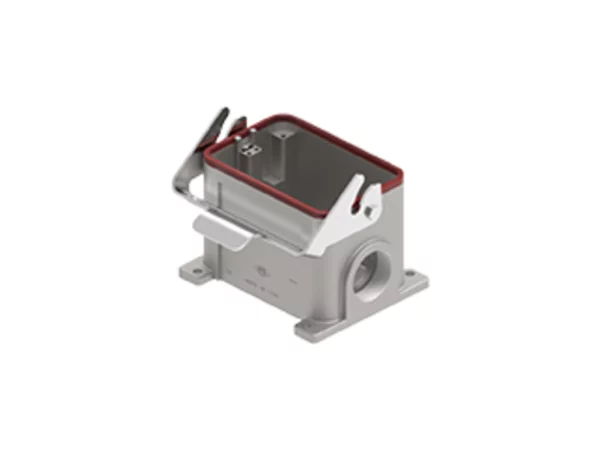

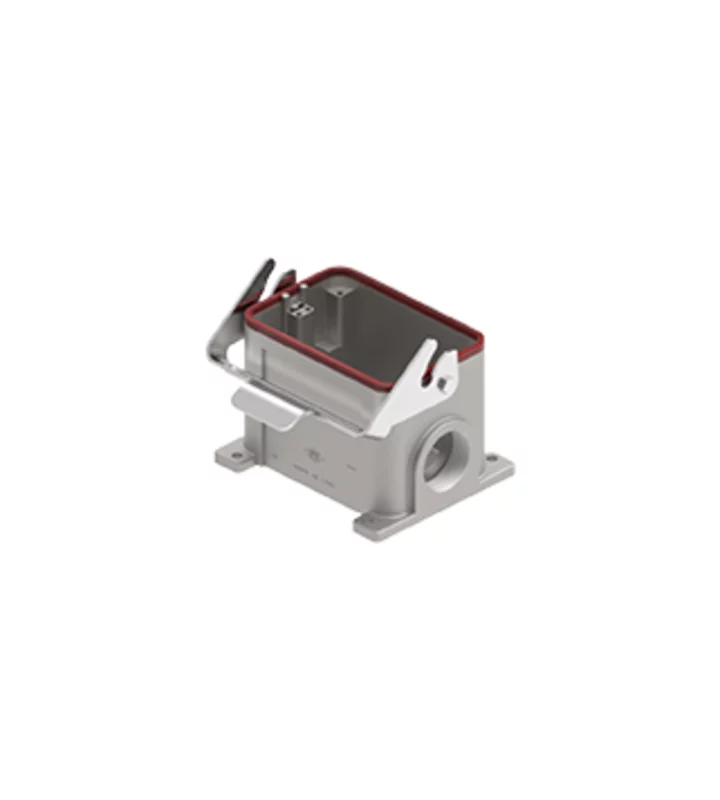

surface mounting housing, size 104.62, 180 °C alu, 1 lever, 1xM40 side

MHPR 48 L40

Add the desired standard inserts to fully configure your connector.

Enclosure type	Surface mounting housing
Size	104.62
Enclosure series	180°C
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP65
Ambient lower temperature	-40 °C
Ambient upper temperature	180 °C
Operation lower temperature	-40 °C
Operation upper temperature	180 °C
Cable entry type	side cable entry
Cable entry size	M40
Position cable feed	Side entry
Height	99 mm
Width	106 mm
Length	141 mm

Material housing	Die cast aluminium alloy
