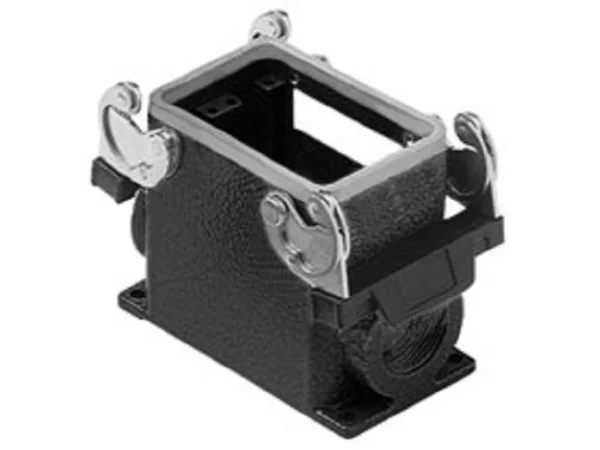

surface mounting housing, size 66.40, W-TYPE alu, 2 levers, 2xM40 side

MHPW 50.240

Add the desired standard inserts to fully configure your connector.

Enclosure type	Surface mounting housing
Size	66.40
Enclosure series	W-TYPE
Closing type	With 2 levers
Locking mechanism	Double locking levers
Protection degree	IP65 / IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	side cable entry
Cable entry size	M40 x 2
Position cable feed	Side entry

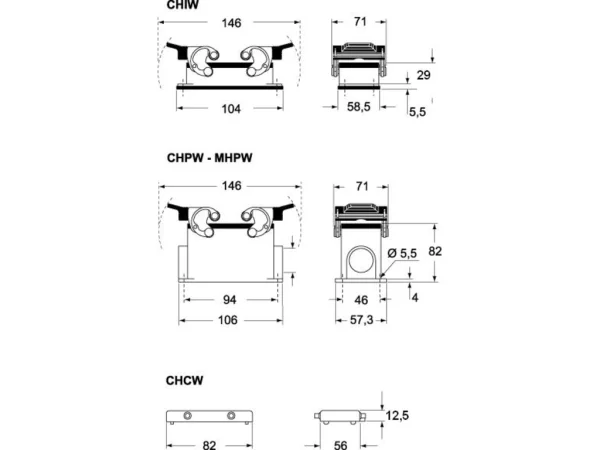

Height	82 mm
Width	46 mm
Length	94 mm

Material housing	Die cast aluminium alloy
Coating housing	With epoxy thermosetting powder coating
Inflammability class of insulation material acc. with UL94	V2
