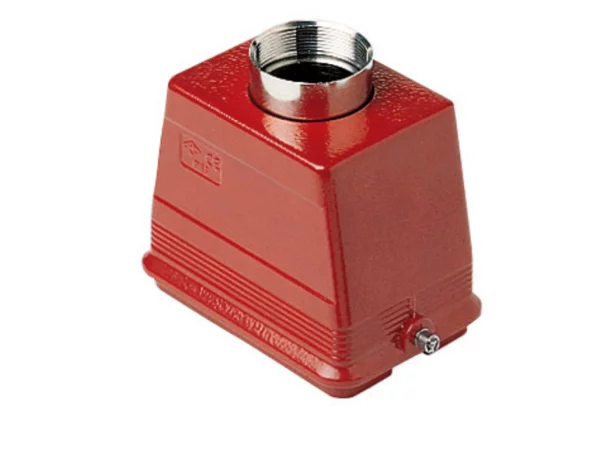

hood, size 104.62, 180°C alu, 2 pegs, 1xM40 top
MHVR 48 L40
Continue assembling your connector
Add the desired standard inserts to fully configure your connector.
Specifications
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 104.62 |
| Enclosure series | 180°C |
| Closing type | With 2 pegs |
| Locking mechanism | Single locking lever |
| Protection degree | IP65 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 180 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 180 °C |
| Cable entry type | top cable entry with adapter |
| Cable entry size | M40 |
| Position cable feed | Top entry |
| Height | 121 mm |
| Width | 90 mm |
| Length | 150.5 mm |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With special thermosetting powder coating with high resistance to high temperatures |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Extra information | Corrosion resistant,UV resistant,With interlocking device |
