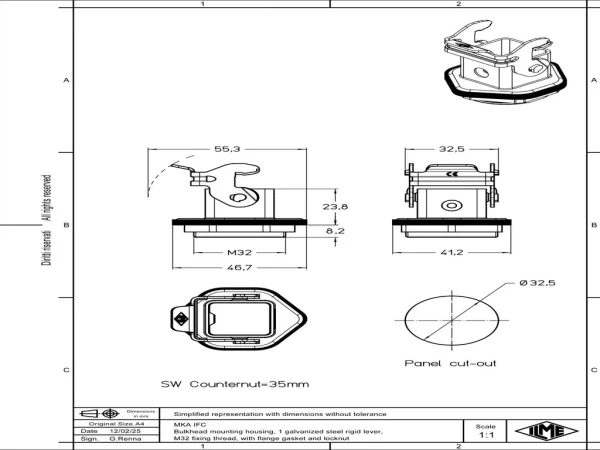

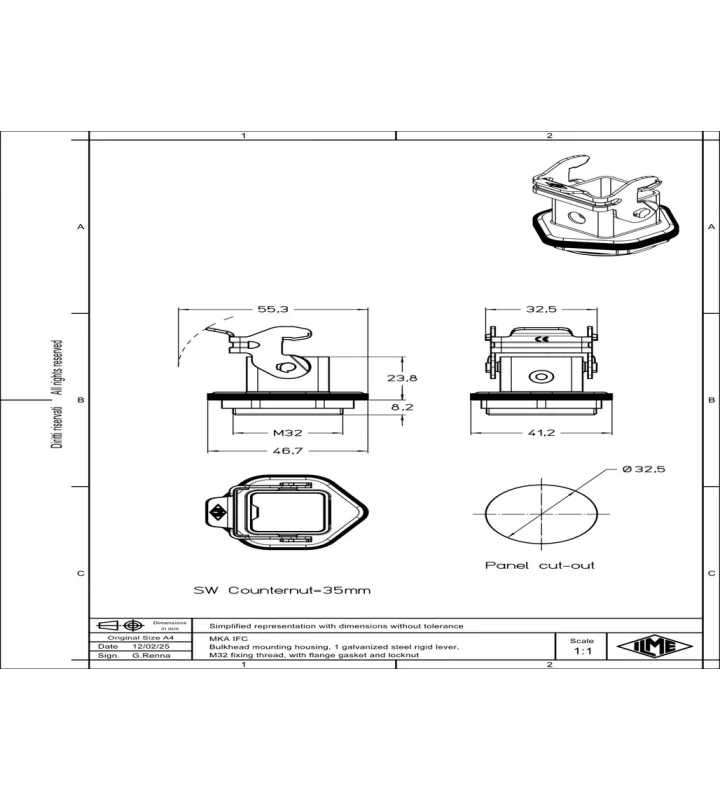

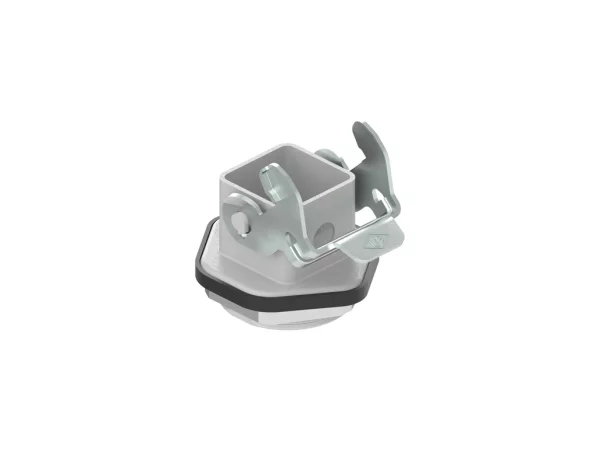

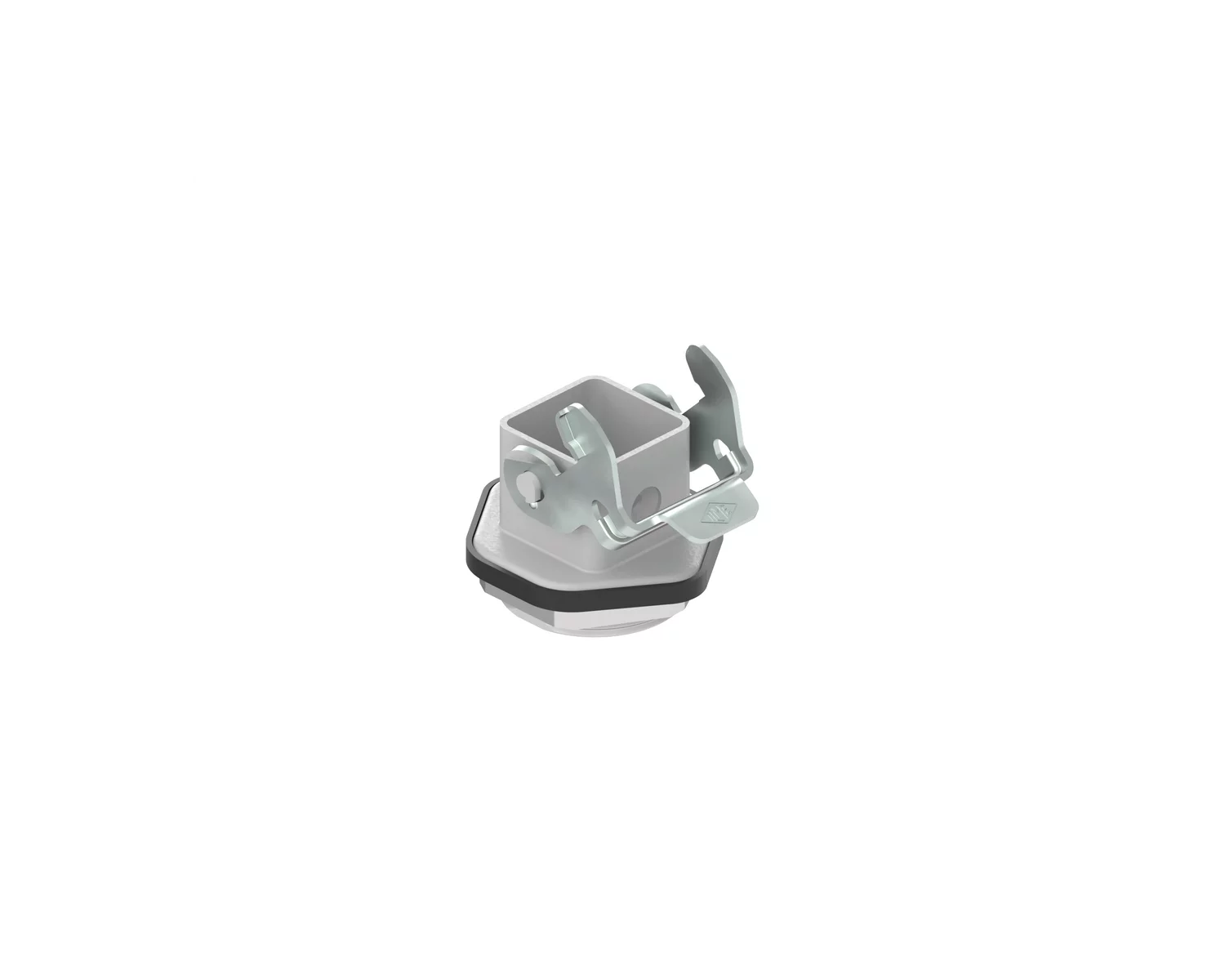

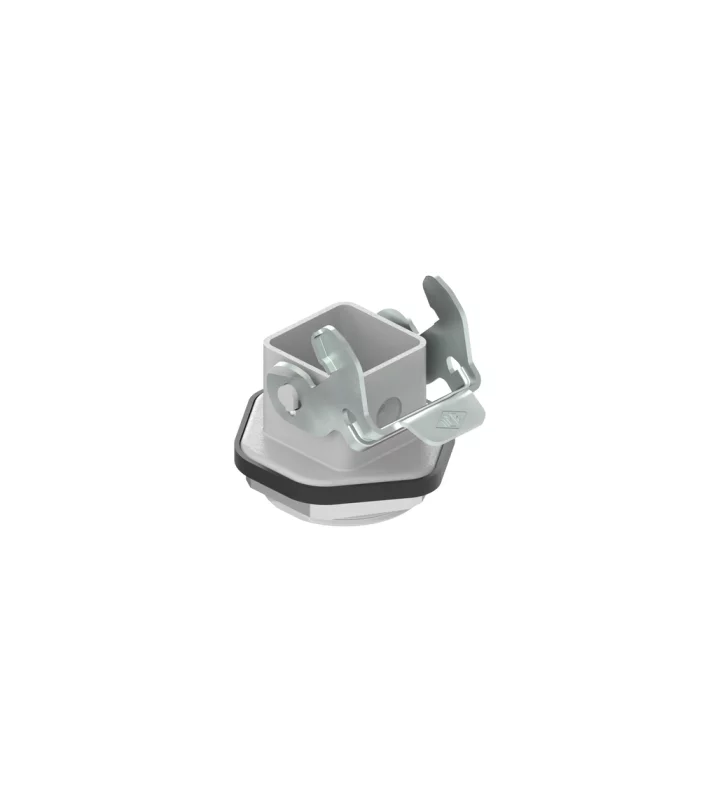

bulkhead mounting housing, size 21.21, CKA zinc, 1 rigid lever steel, 1xM32 external, profiled gasket

MKA IFC

Add the desired standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	21.21
Enclosure series	CKA
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	round threaded appendix
Cable entry size	M32
Position cable feed	Below
Height	23.8 mm
Width	41.2 mm
Length	46.7 mm

Material housing	Zinc die-cast
Coating housing	With epoxy-polyester thermosetting powder coating
