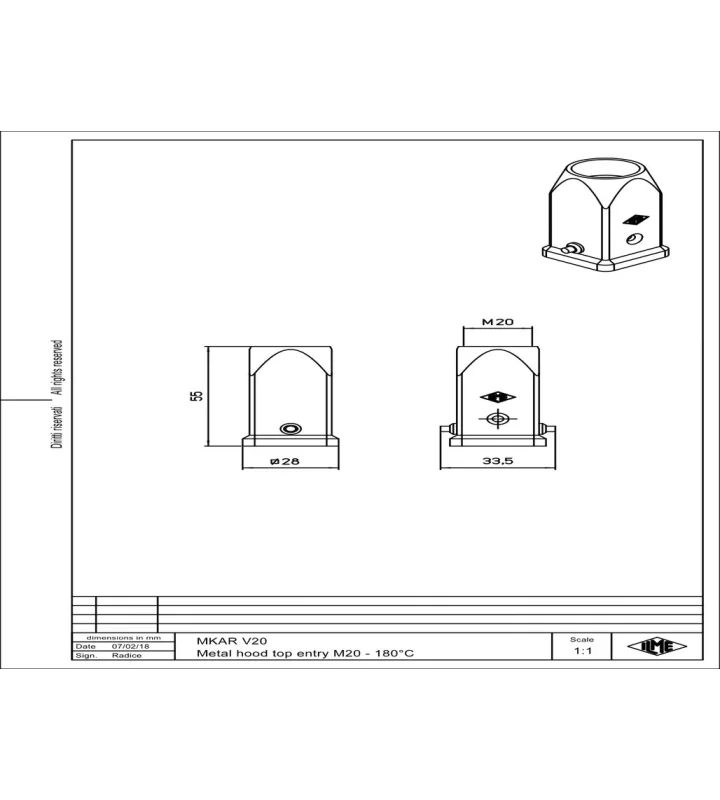

hood, size 21.21, 180°C alu, 2 pegs, 1xM20 top

MKAR V20

Add the desired accessories and standard inserts to fully configure your connector.

Enclosure type	Hood
Size	21.21
Enclosure series	180°C
Closing type	With 2 pegs
Locking mechanism	Single locking lever
Protection degree	IP44
Ambient lower temperature	-40 °C
Ambient upper temperature	180 °C
Operation lower temperature	-40 °C
Operation upper temperature	180 °C
Cable entry type	top cable entry
Cable entry size	M20
Position cable feed	Top entry
Height	55 mm
Width	28 mm
Length	33.5 mm

Material housing	Die cast aluminium alloy
Coating housing	With special thermosetting powder coating with high resistance to high temperatures
Inflammability class of insulation material acc. with UL94	V2
Extra information	Corrosion resistant,UV resistant,With interlocking device
