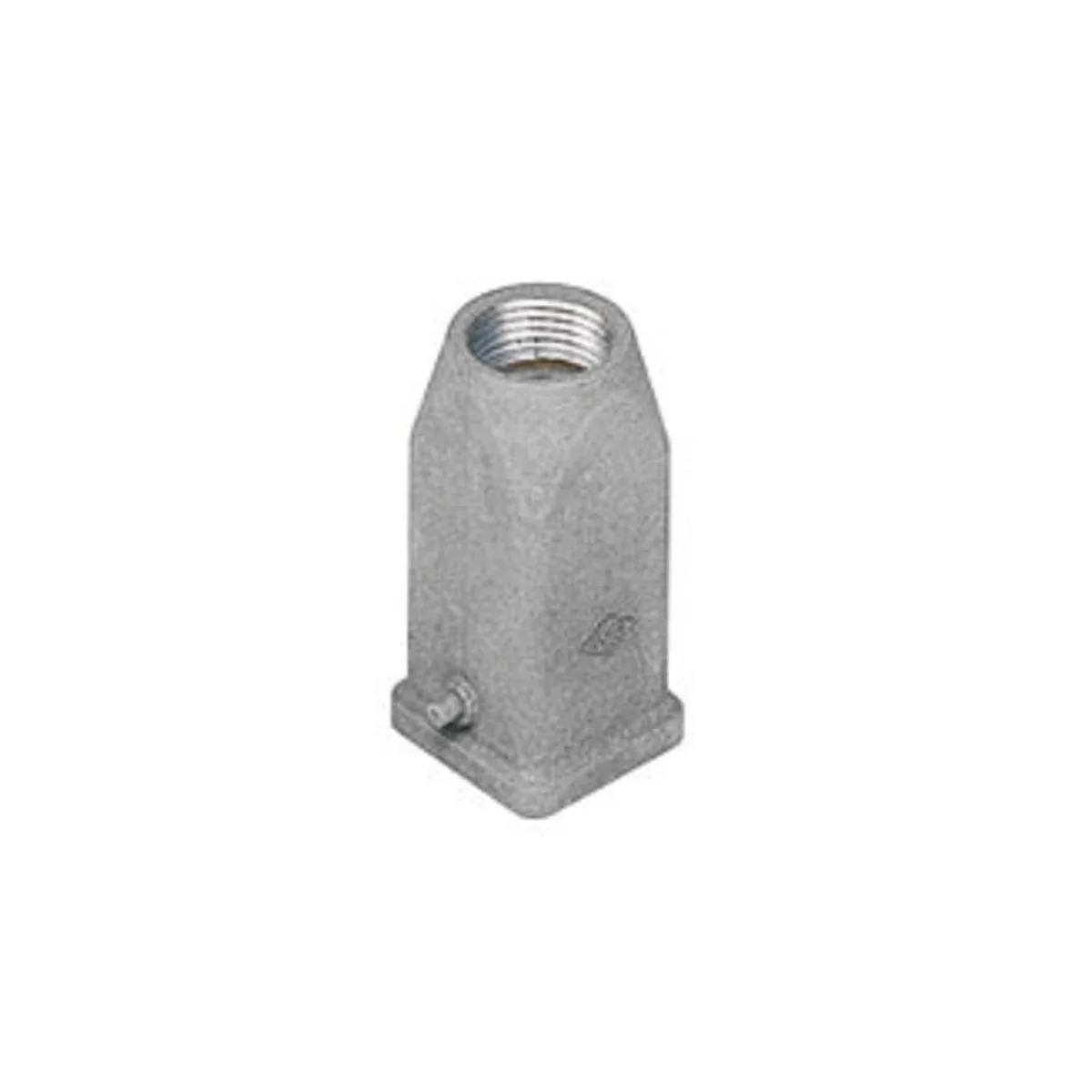

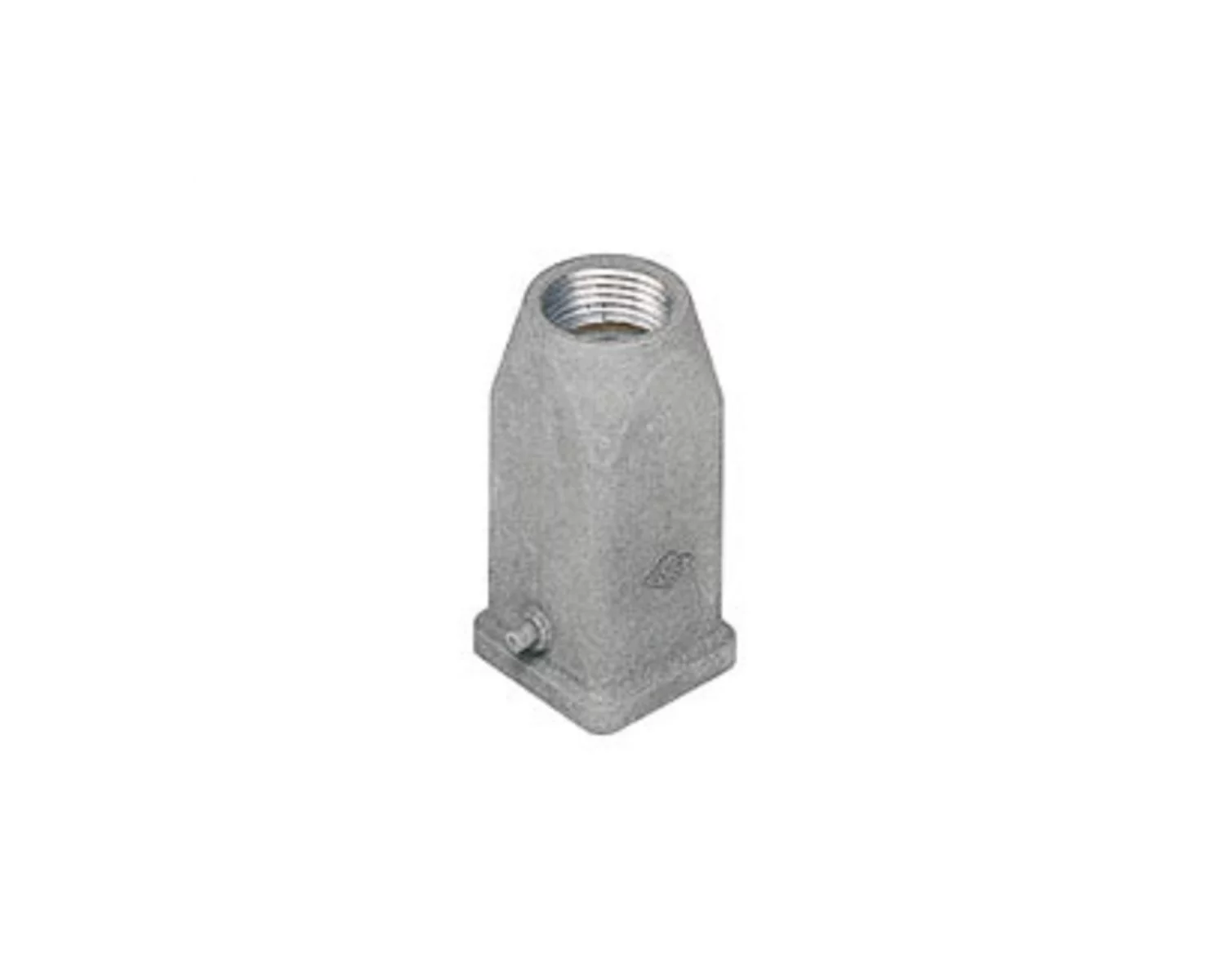

hood, size 21.21, EMC zinc, 2 pegs, 1xM20 top

MKAS V20

Add the desired accessories and standard inserts to fully configure your connector.

Enclosure type	Hood
Size	21.21
Enclosure series	EMC
Closing type	With 2 pegs
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	top cable entry
Cable entry size	M20
Position cable feed	Top entry

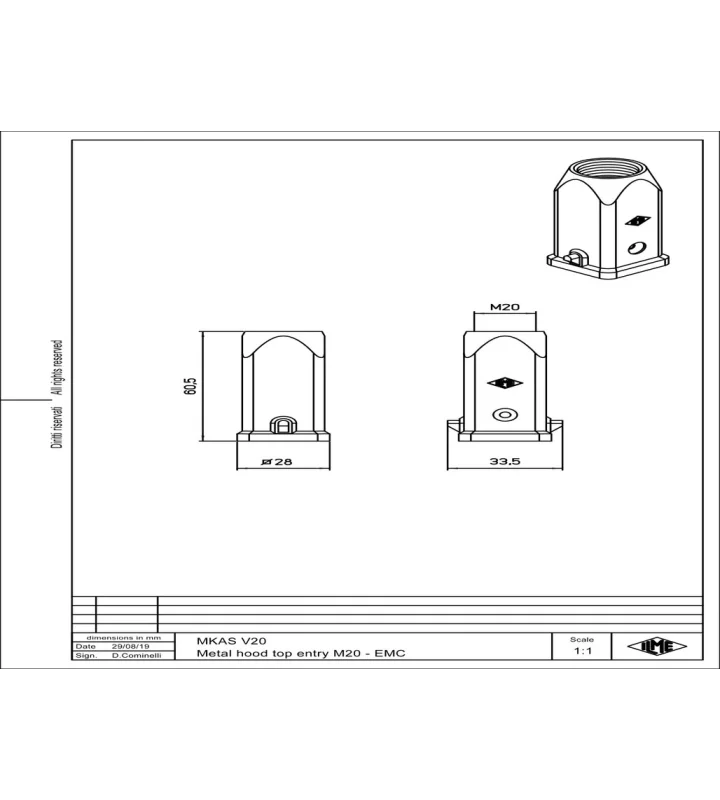

Height	60.5 mm
Width	28 mm
Length	33.5 mm

Material housing	Zinc
Coating housing	With powder coating
Extra information	Corrosion resistant,EMC Version,UV resistant,With interlocking device
