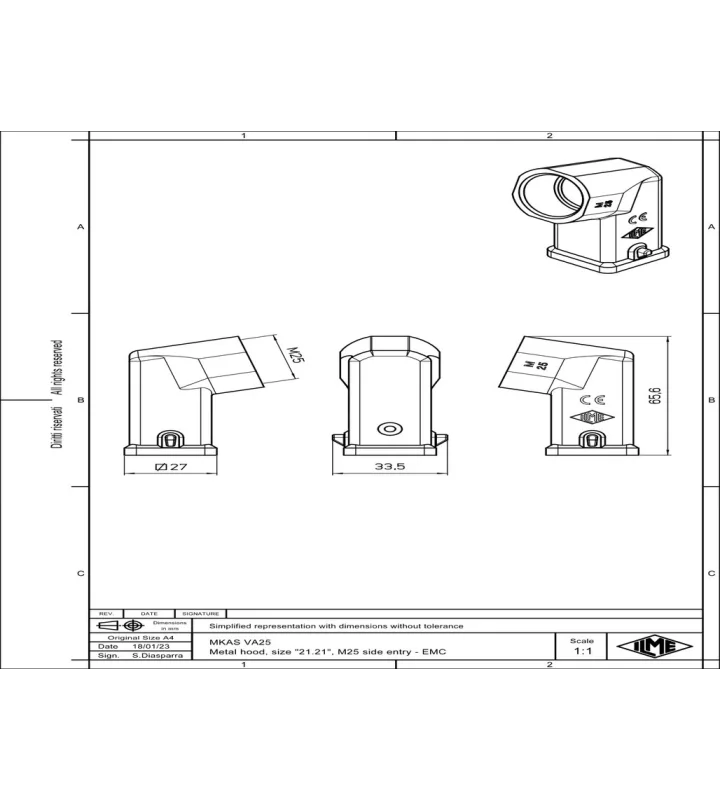

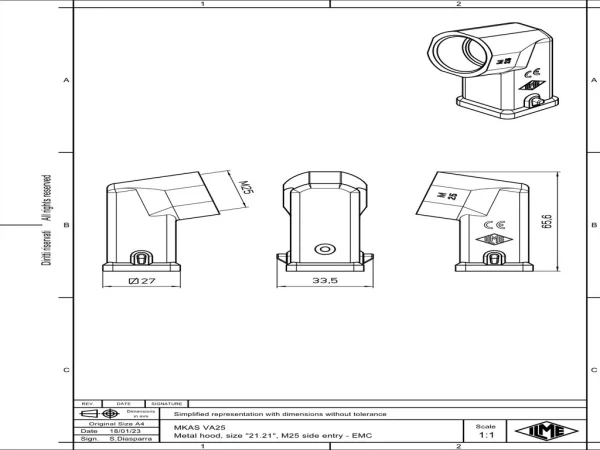

hood, size 21.21, EMC zinc, 2 pegs, 1xM25 side

MKAS VA25

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	21.21
Enclosure series	EMC
Closing type	With 2 pegs
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	side cable entry
Cable entry size	M25
Position cable feed	Side entry
Height	66 mm
Width	27 mm
Length	41 mm

Material housing	Zinc die-cast
