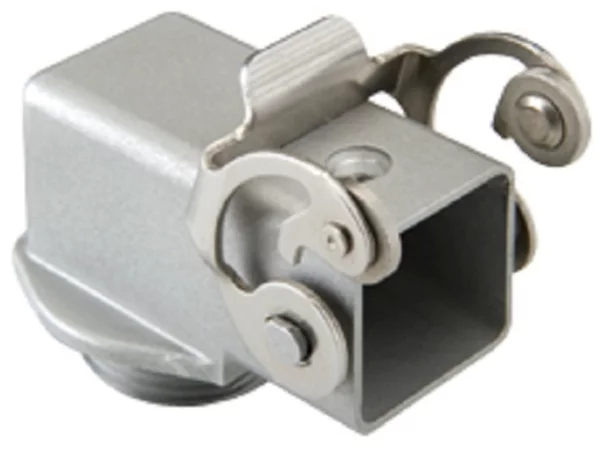

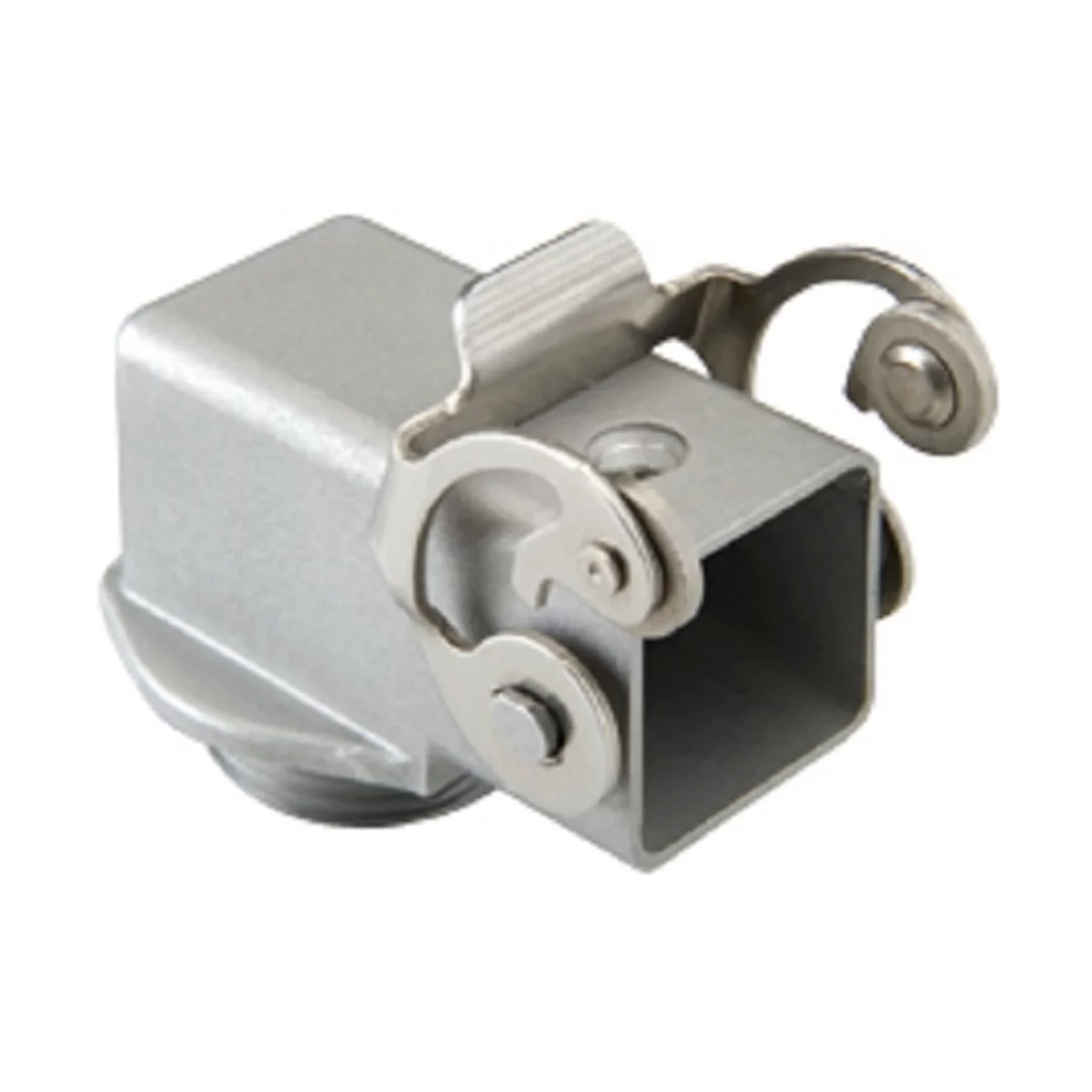

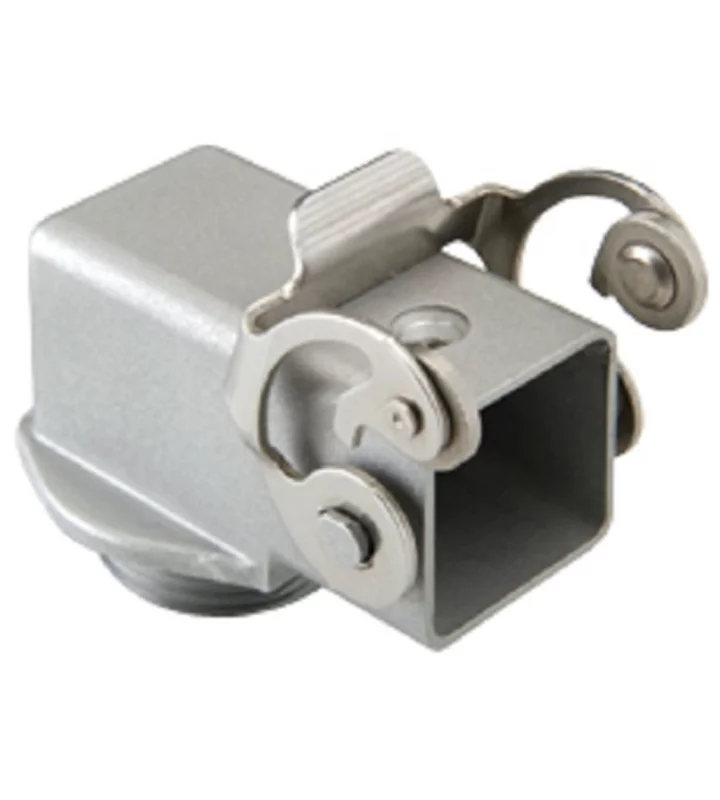

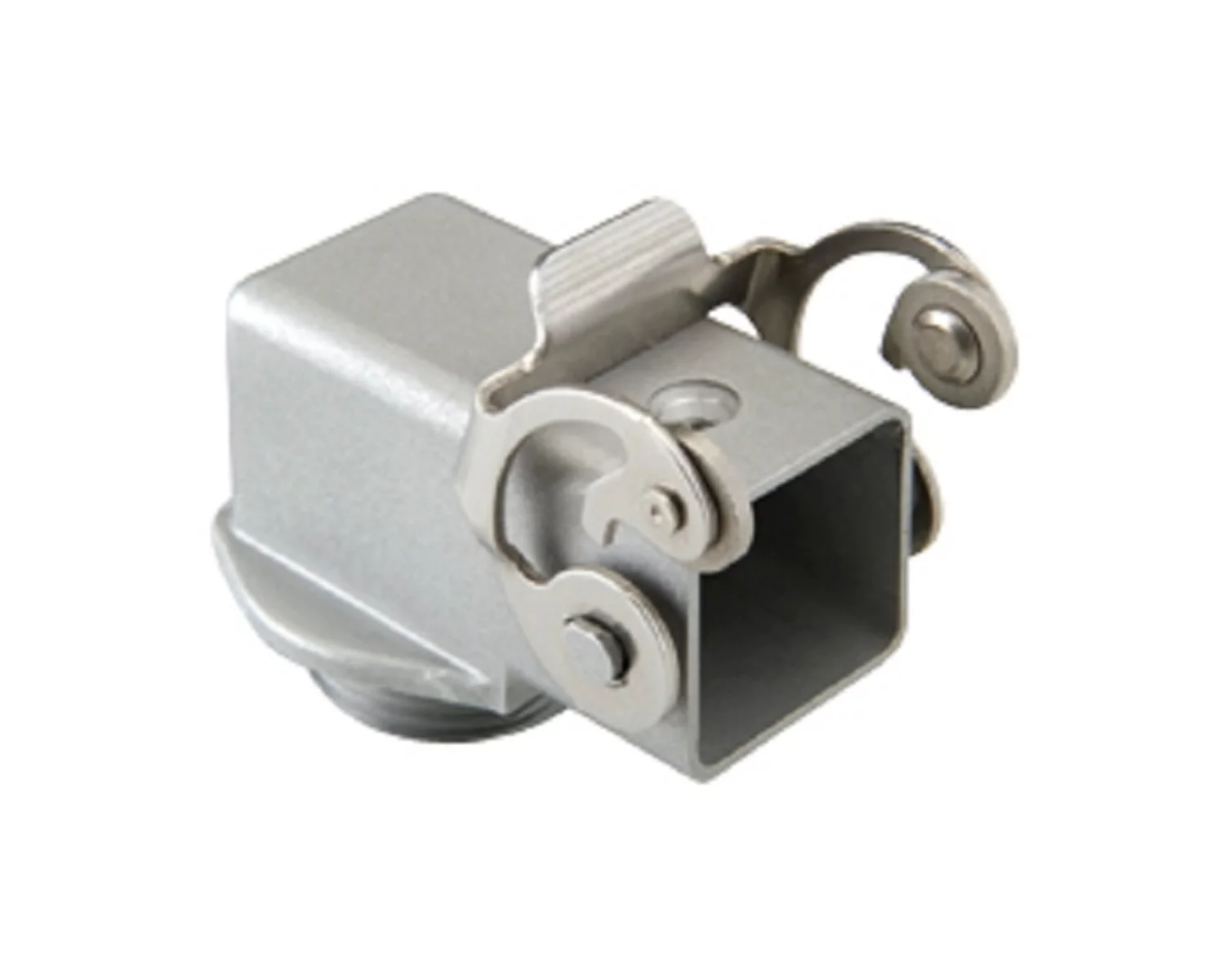

bulkhead mounting housing, angled, size 21.21, CKA zinc, 1 lever stainless steel, 1xM25 external

MKAX IAF25

Add the desired accessories and standard inserts to fully configure your connector.

Enclosure type	Angled bulkhead mounting housing
Size	21.21
Enclosure series	CKA
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	round threaded appendix
Cable entry size	M25
Position cable feed	Below
Height	26.5 mm
Width	36 mm
Length	55 mm

Material housing	Zinc die-cast
Coating housing	With powder coating
Extra information	Corrosion resistant,UV resistant,With interlocking device
