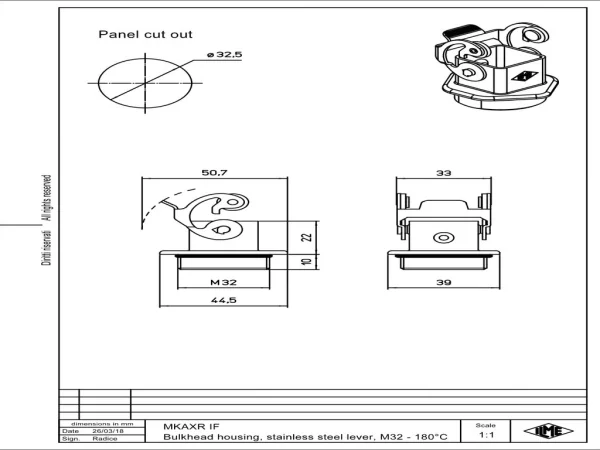

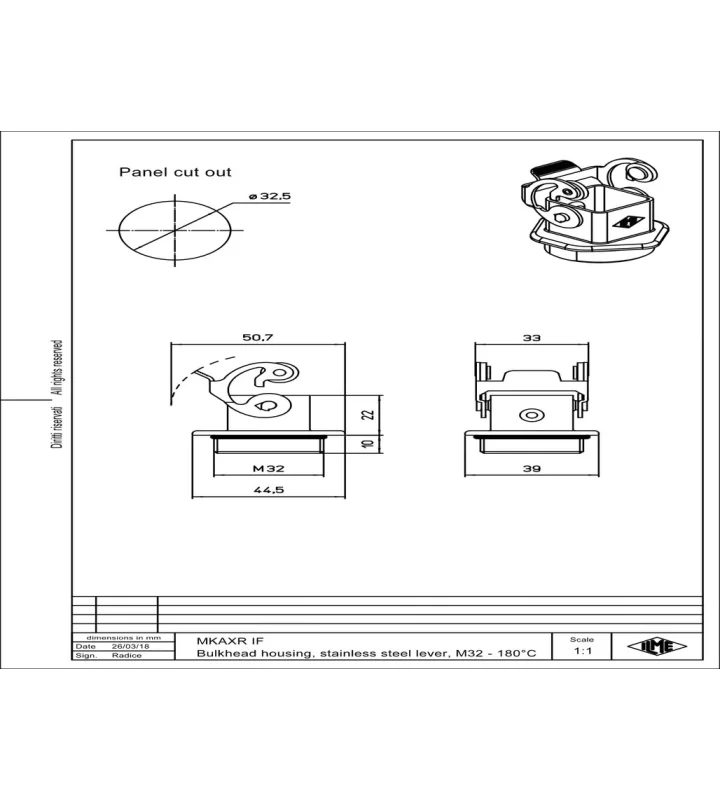

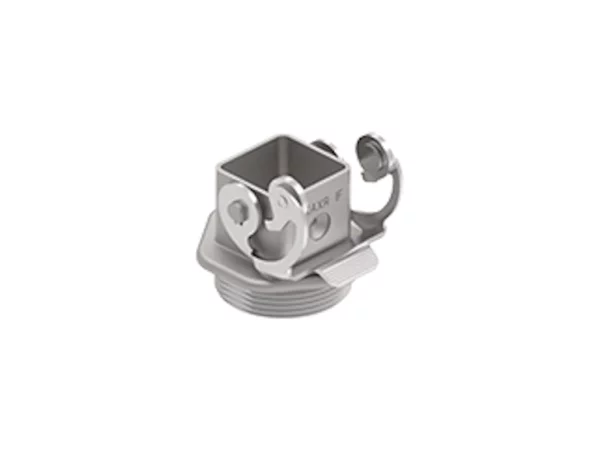

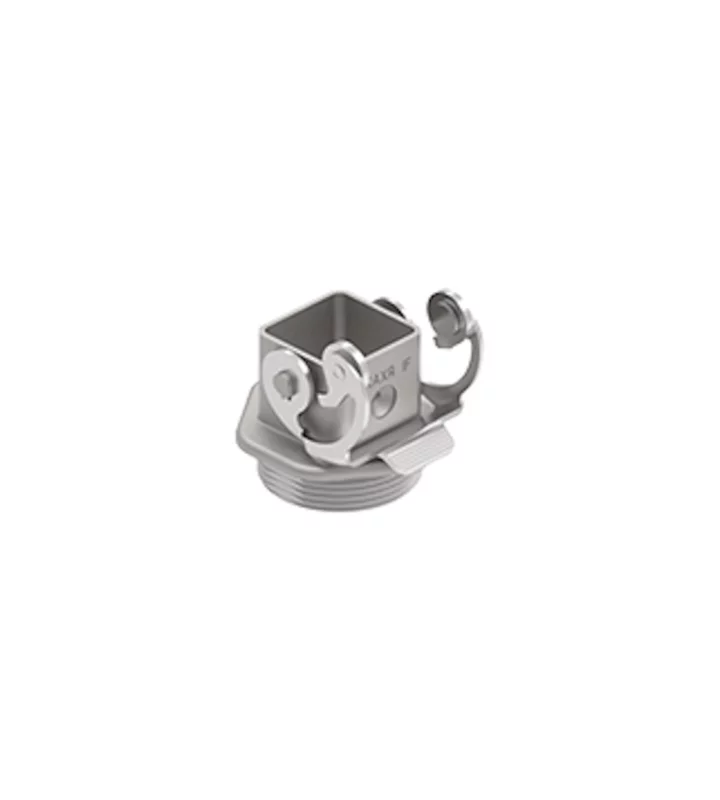

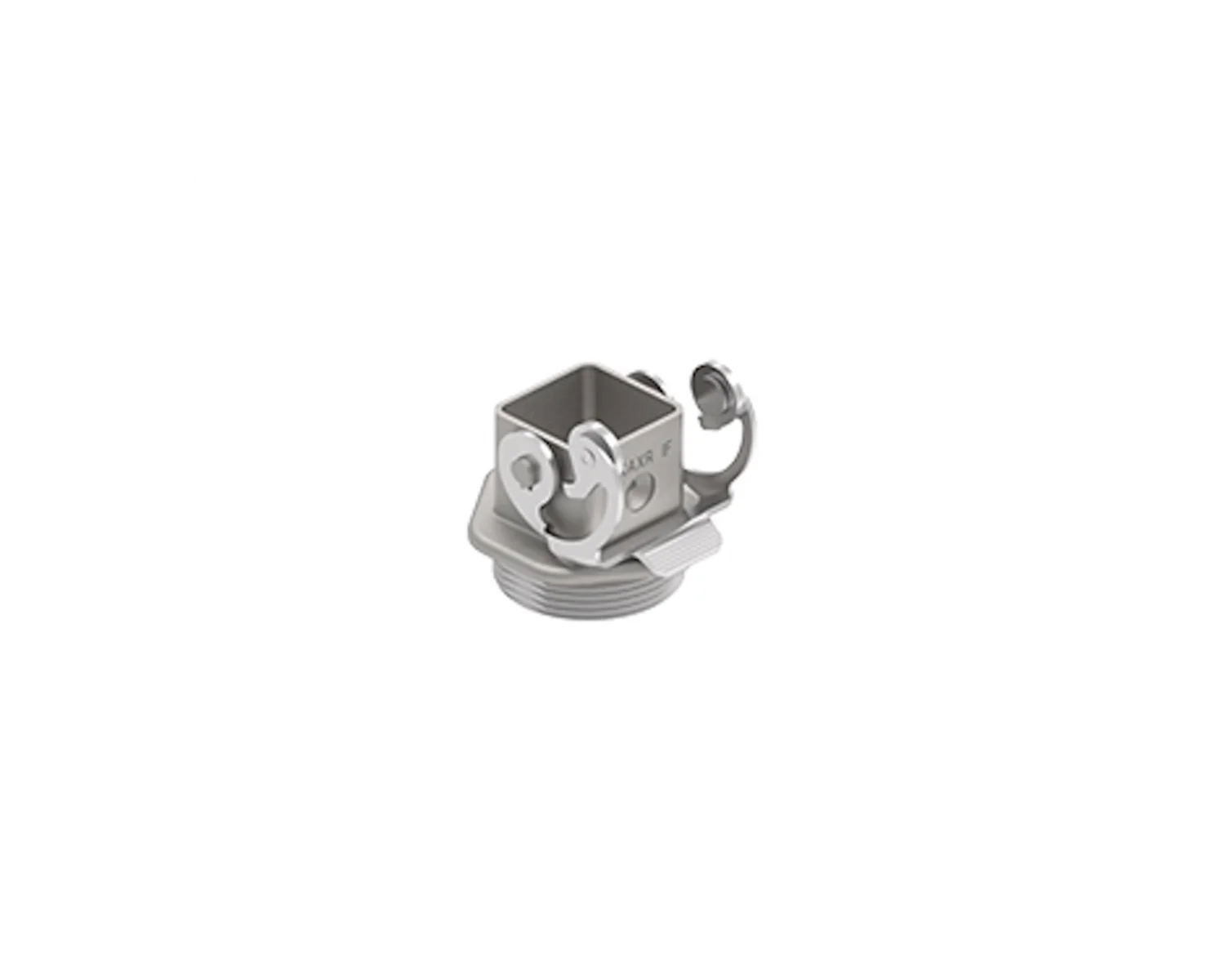

bulkhead mounting housing, size 21.21, 180° alu, 1 lever stainless steel, 1xM32 external

MKAXR IF

Add the desired standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	21.21
Enclosure series	180°C
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44
Ambient lower temperature	-40 °C
Ambient upper temperature	180 °C
Operation lower temperature	-40 °C
Operation upper temperature	180 °C
Cable entry type	round threaded appendix
Cable entry size	M32
Position cable feed	Below
Height	22 mm
Width	39 mm
Length	44.5 mm

Material housing	Die cast aluminium alloy
Coating housing	With special thermosetting powder coating with high resistance to high temperatures
Inflammability class of insulation material acc. with UL94	V2
