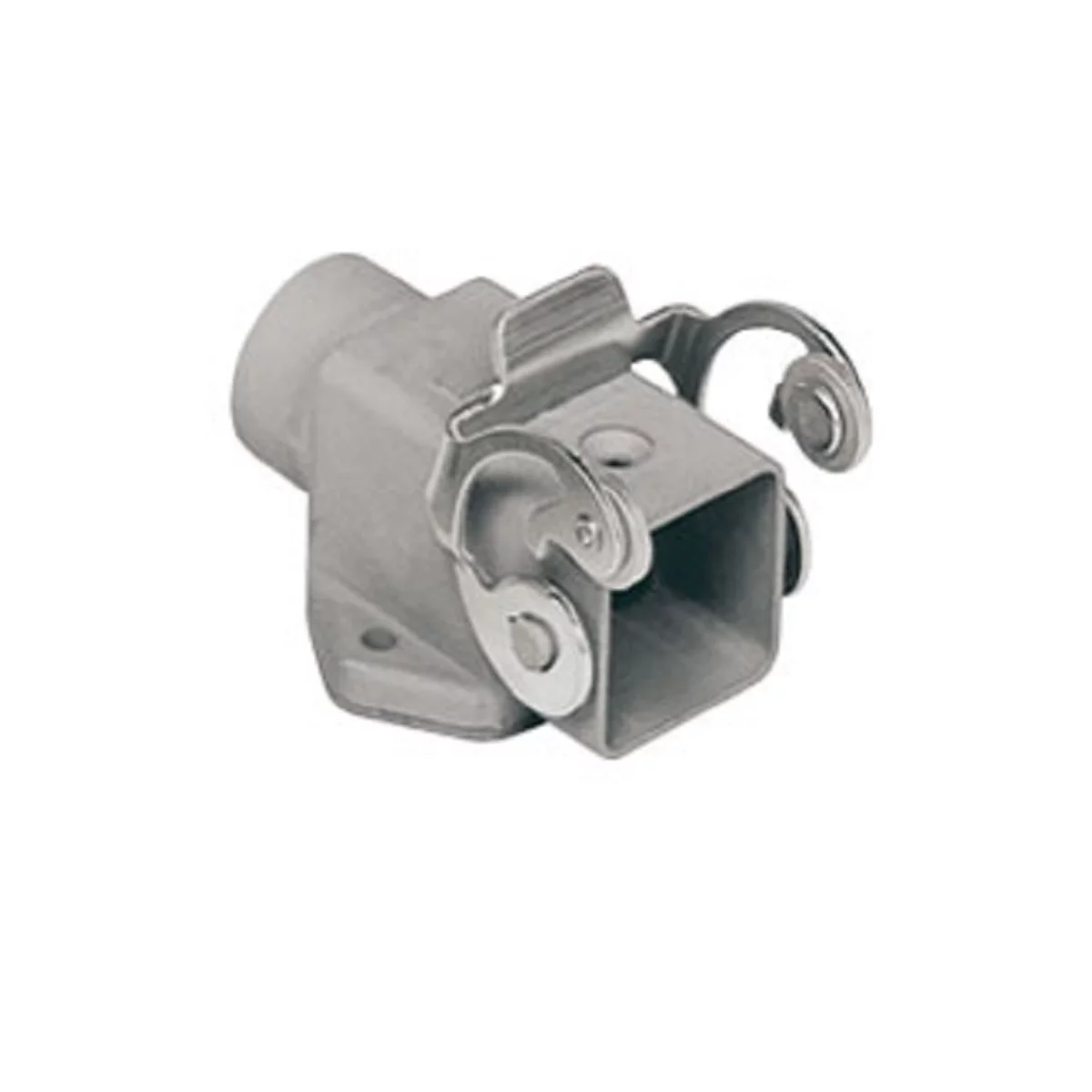

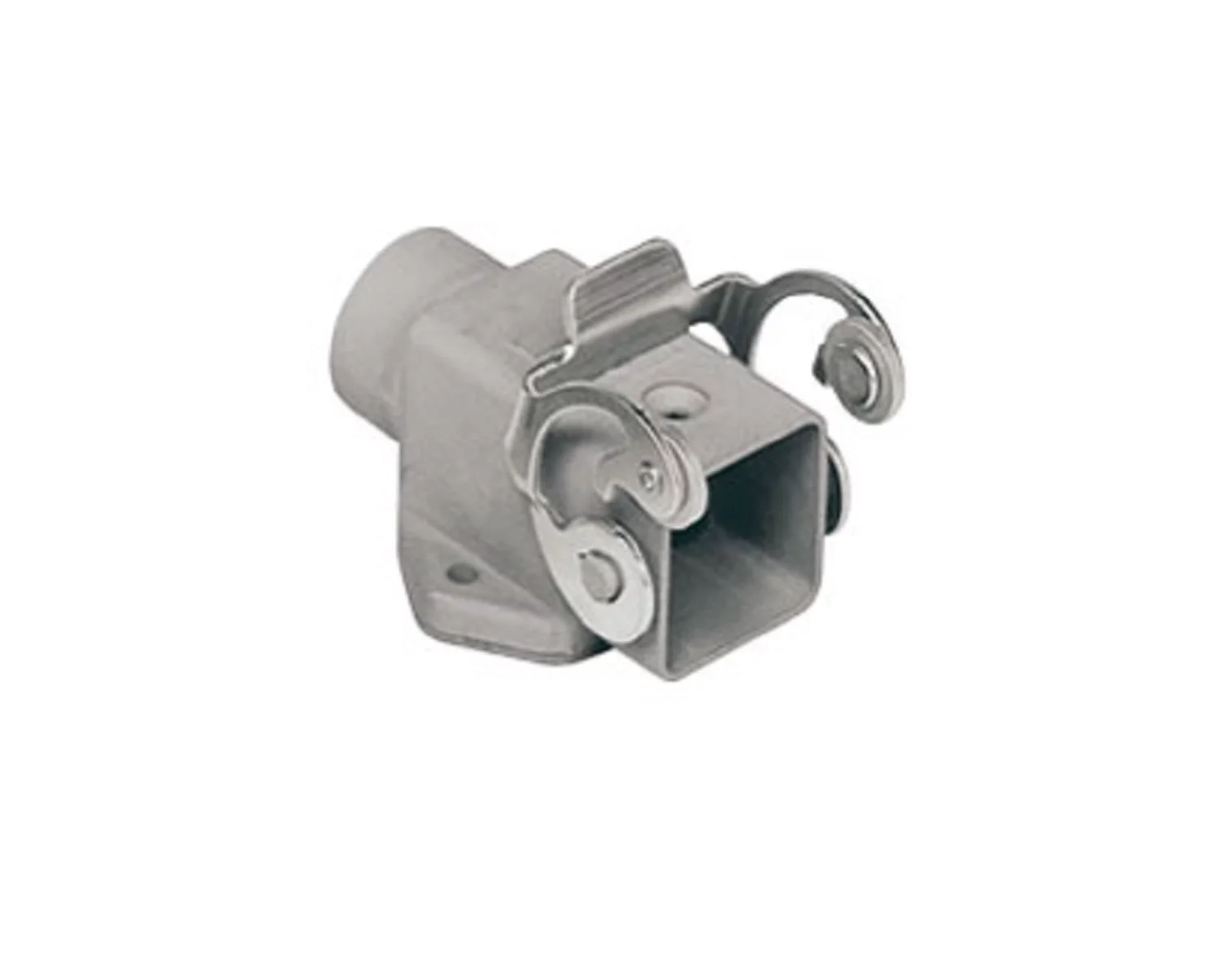

bulkhead mounting housing, angled, size 21.21, EMC zinc, 1 lever stainless steel, 1xM20 side

MKAXS IAP20

Add the desired accessories and standard inserts to fully configure your connector.

Enclosure type	Angled bulkhead mounting housing
Size	21.21
Enclosure series	EMC
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	side cable entry
Cable entry size	M20
Position cable feed	Side entry
Height	45 mm
Width	42.5 mm
Length	57 mm

Material housing	Zinc
Coating housing	With powder coating
Extra information	Corrosion resistant,EMC Version,UV resistant,With interlocking device
