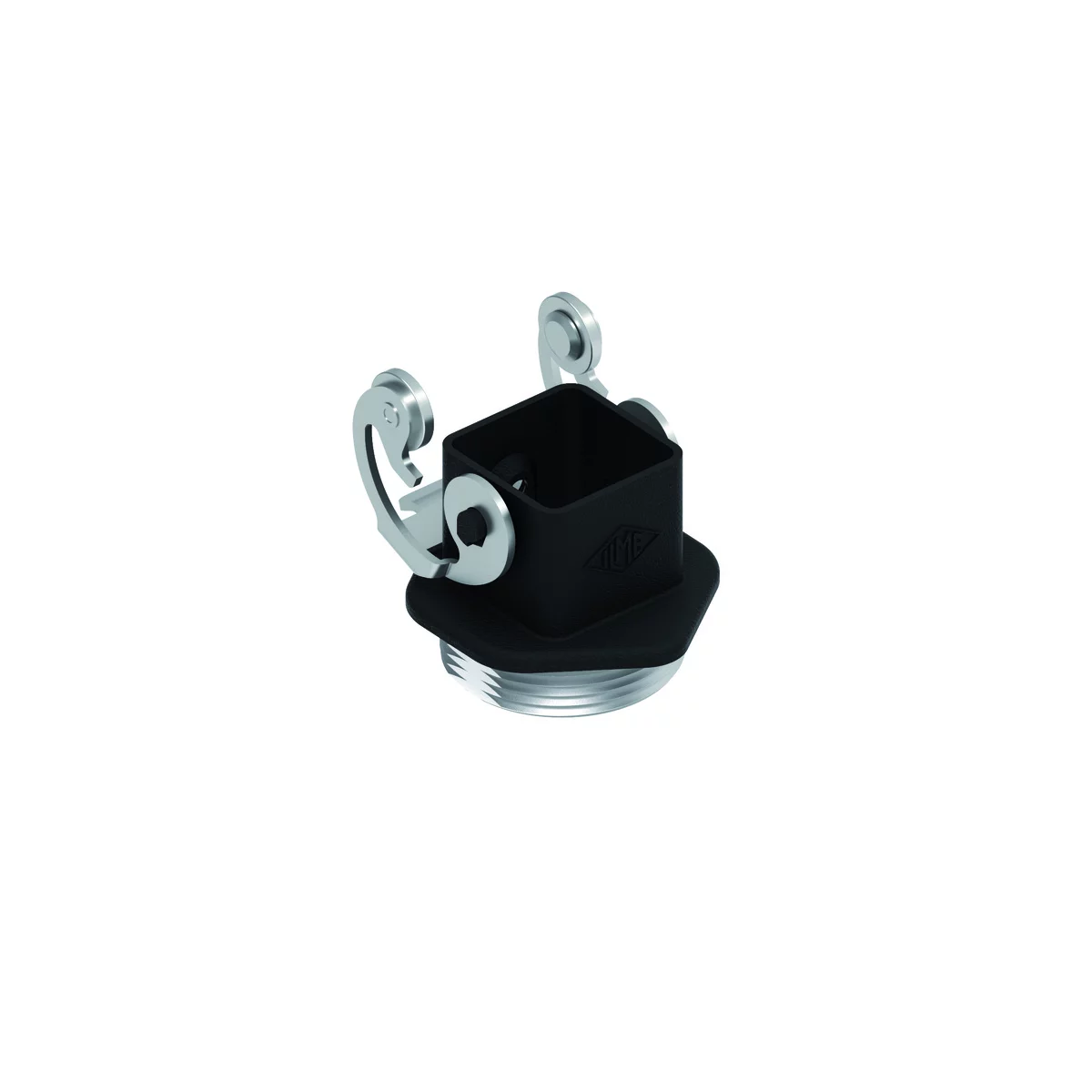

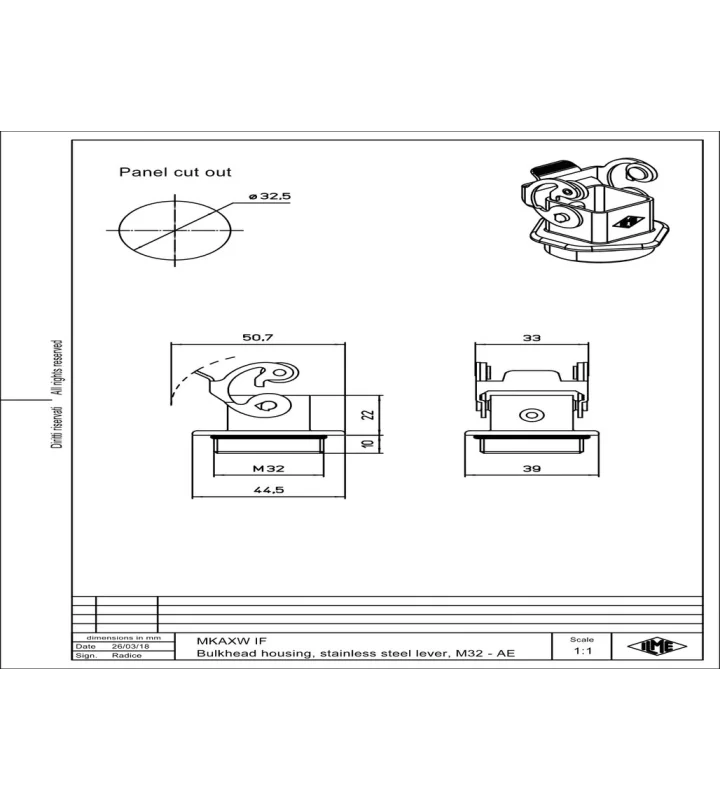

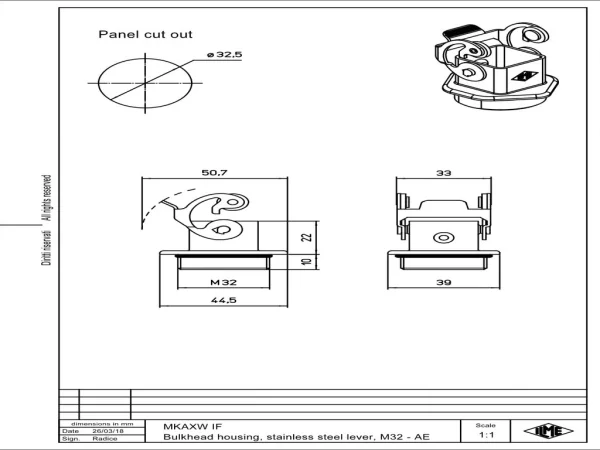

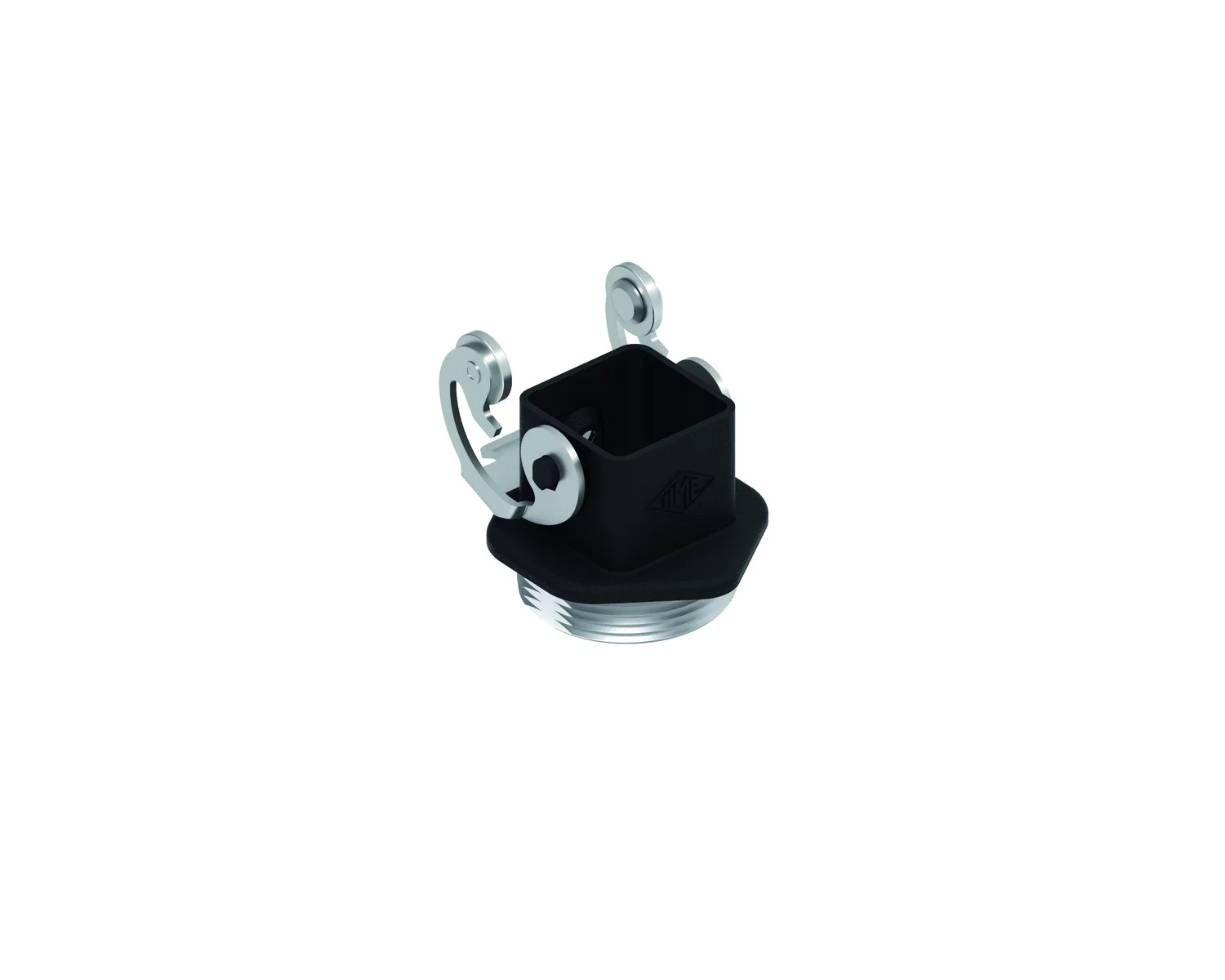

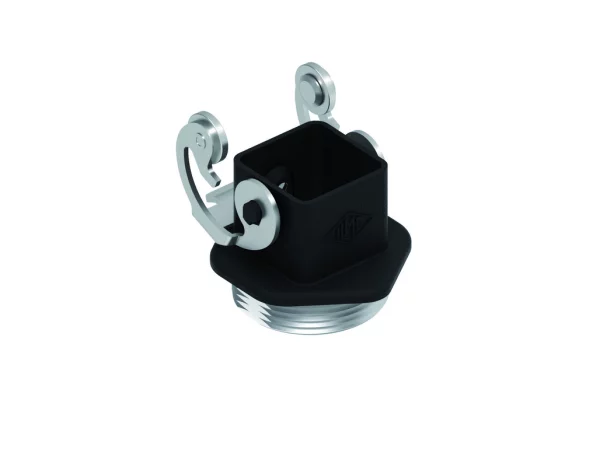

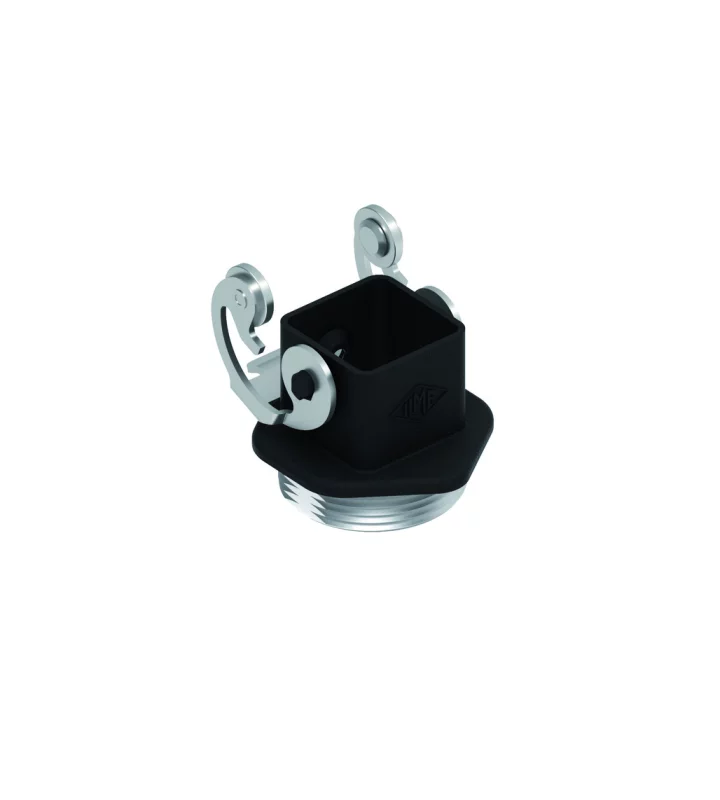

bulkhead mounting housing, size 21.21, W-TYPE alu, 1 lever stainless steel, 1xM32 external

MKAXW IF

Add the desired standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	21.21
Enclosure series	W-TYPE
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	round threaded appendix
Cable entry size	M32
Position cable feed	Below
Height	22 mm
Width	39 mm
Length	44.5 mm

Material housing	Die cast aluminium alloy
Coating housing	With epoxy thermosetting powder coating
Inflammability class of insulation material acc. with UL94	V2
