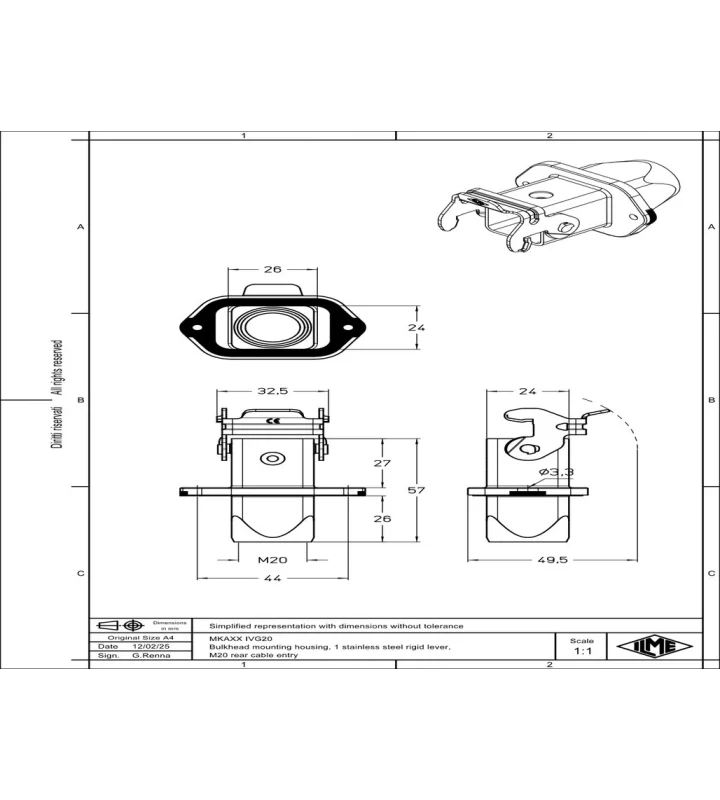

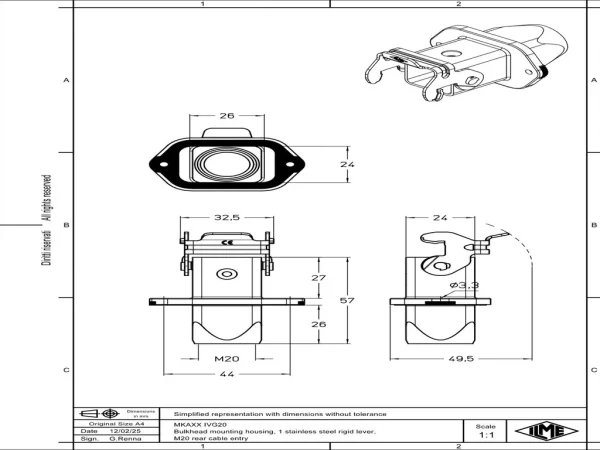

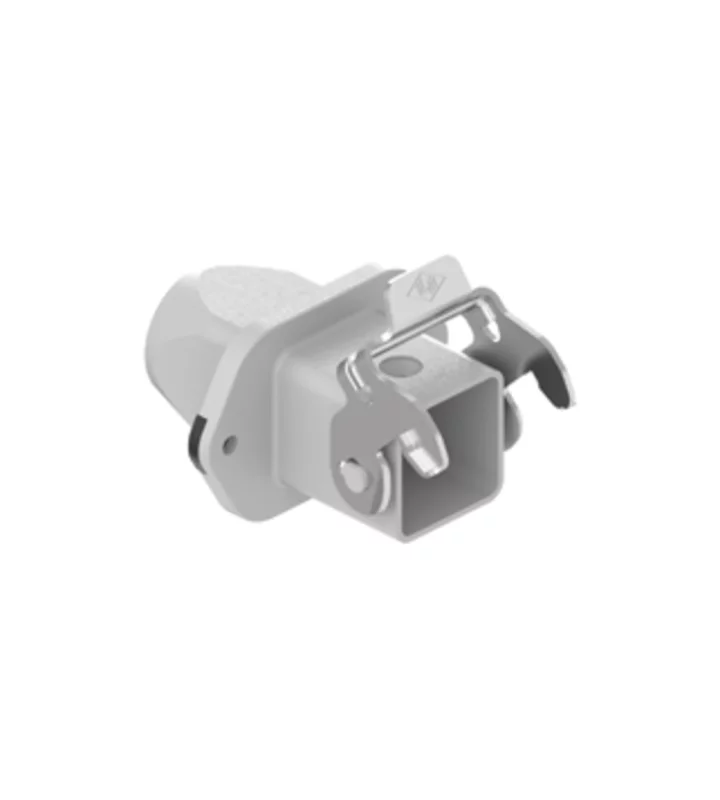

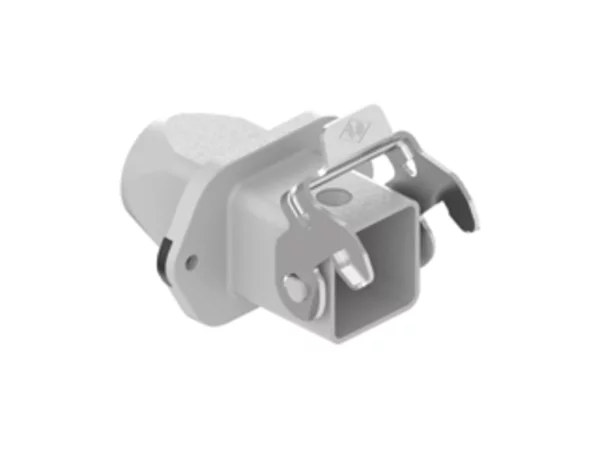

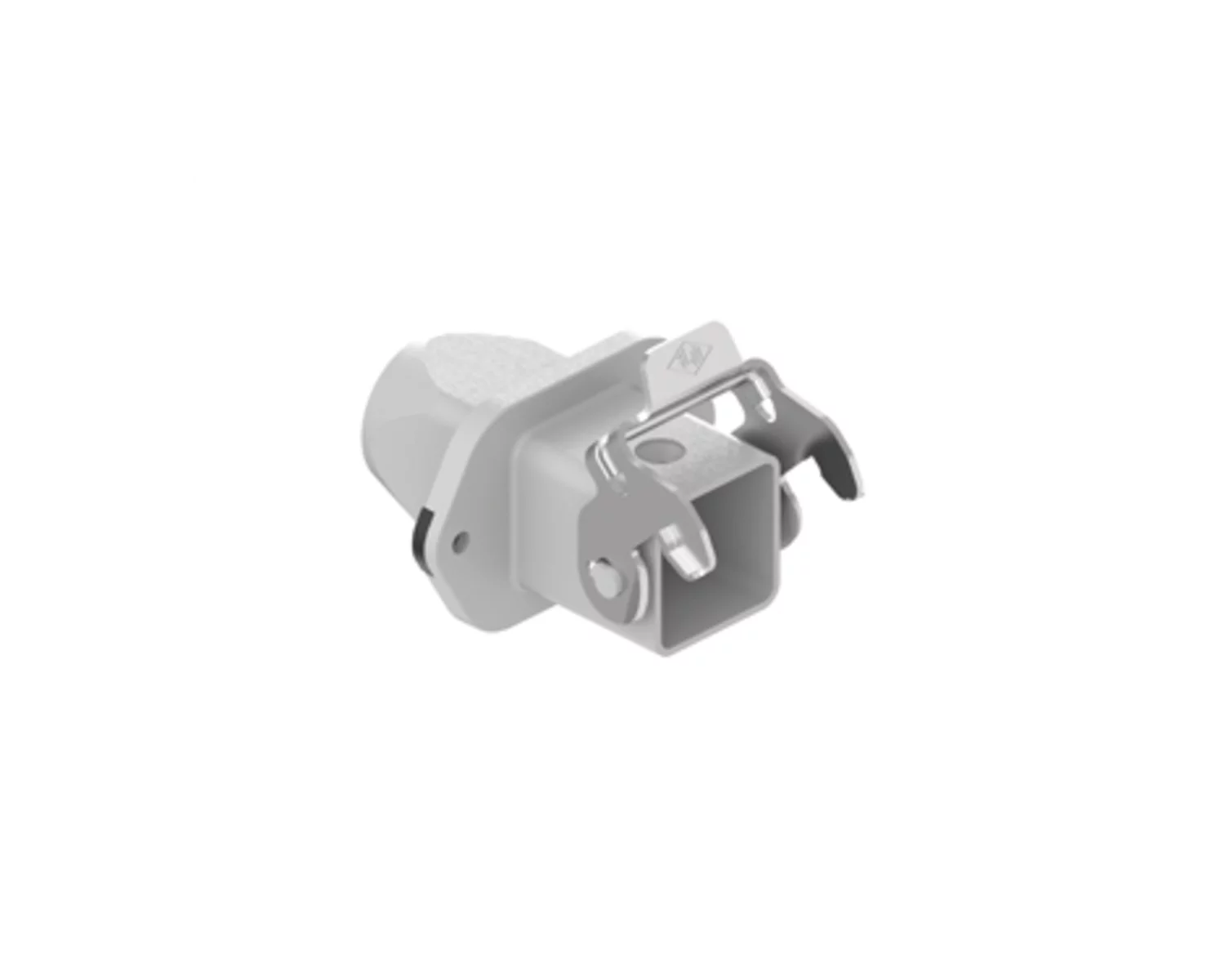

bulkhead mounting housing, size 21.21, CKA zinc, 1 lever, 1xM20 rear

MKAXX IVG20

Add the desired standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	21.21
Enclosure series	CKA
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	rear cable entry
Cable entry size	M20
Position cable feed	Rear entry
Height	57 mm
Width	24 mm
Length	44 mm

Material housing	Zinc die-cast
