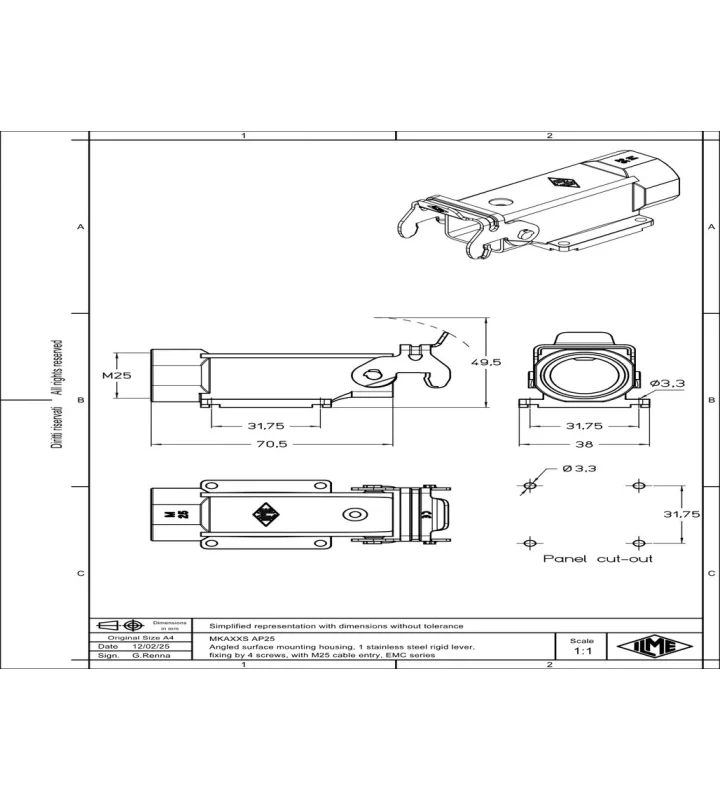

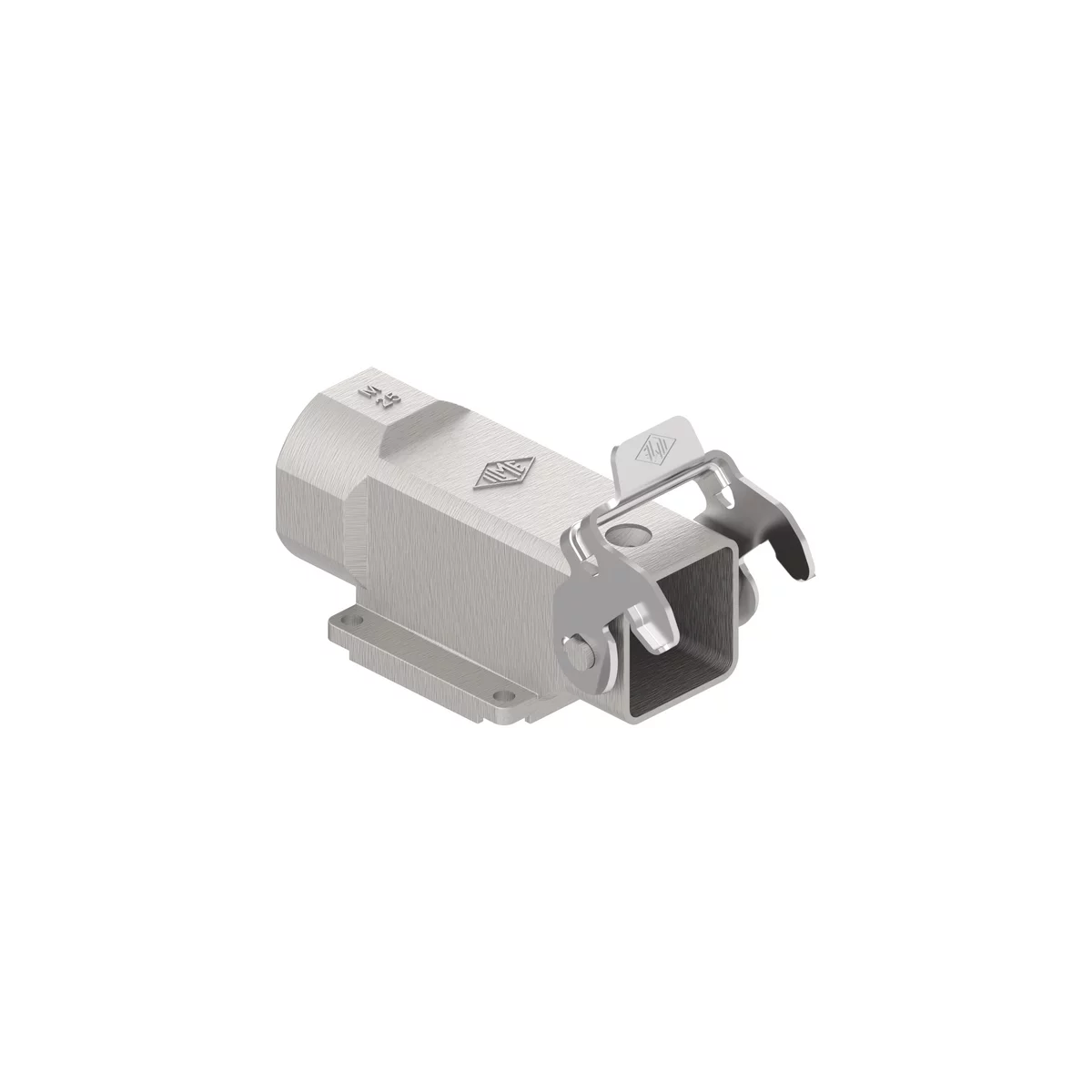

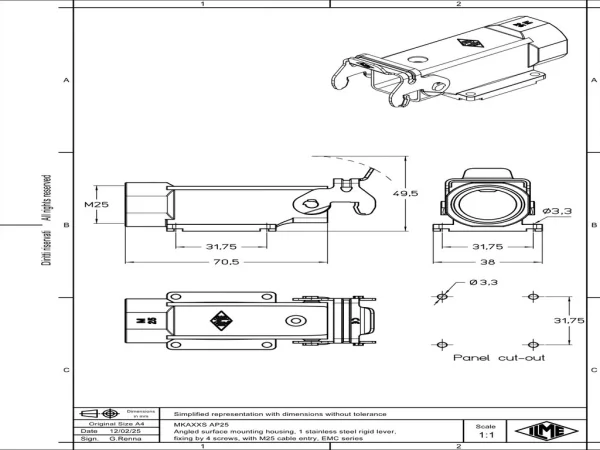

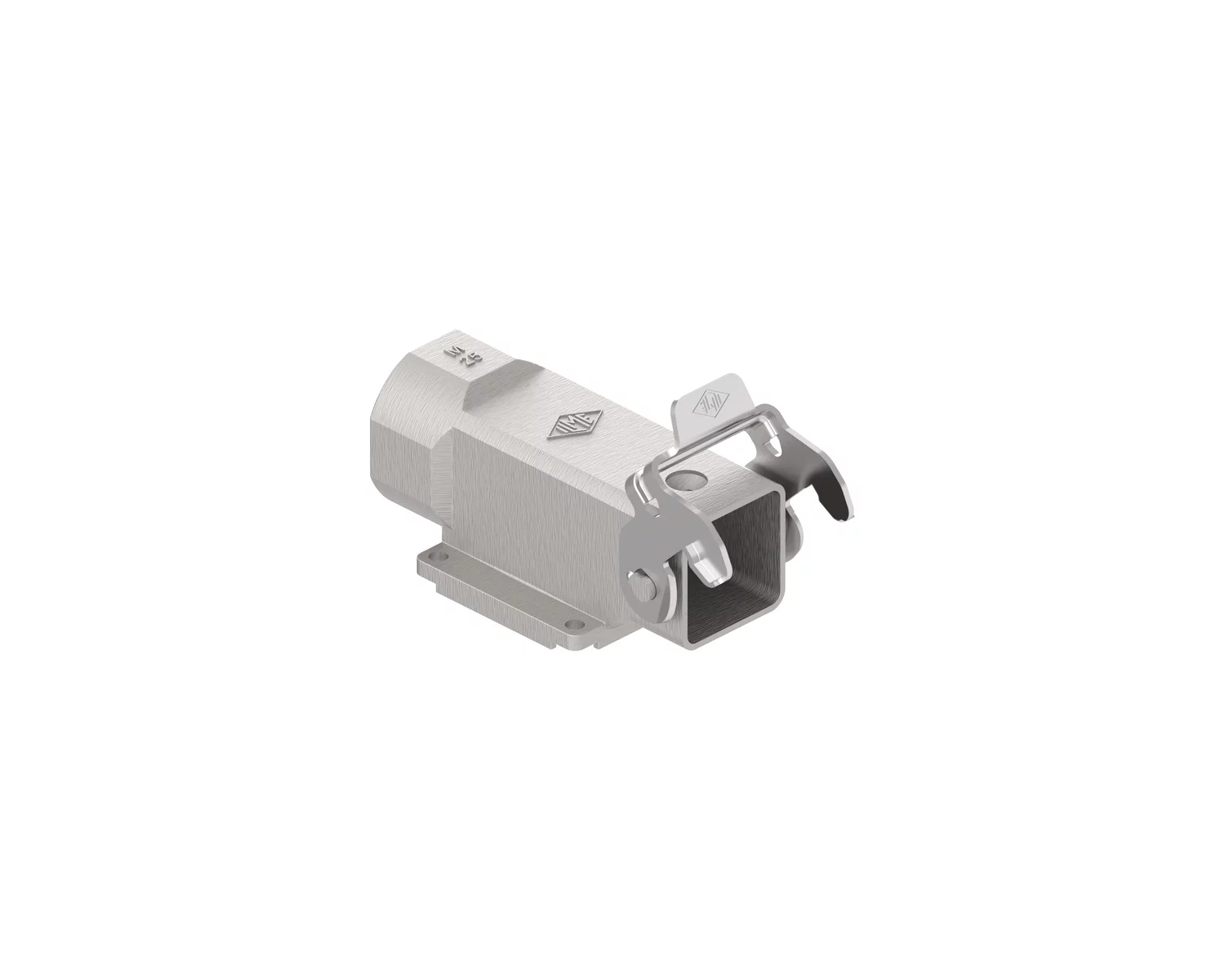

surface mounting housing, angled, size 21.21, EMC zinc, 1 rigid lever stainless steel, 1xM25 side, closed bottom

MKAXXS AP25

Add the desired standard inserts to fully configure your connector.

Enclosure type	Angled surface mounting housing
Size	21.21
Enclosure series	EMC
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	side cable entry
Cable entry size	M25
Position cable feed	Side entry
Height	49.5 mm
Width	38 mm
Length	70.5 mm

Material housing	Zinc die-cast
Coating housing	Chromate coating
