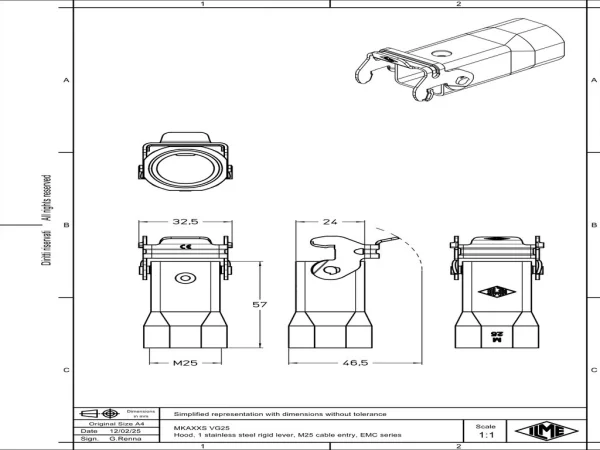

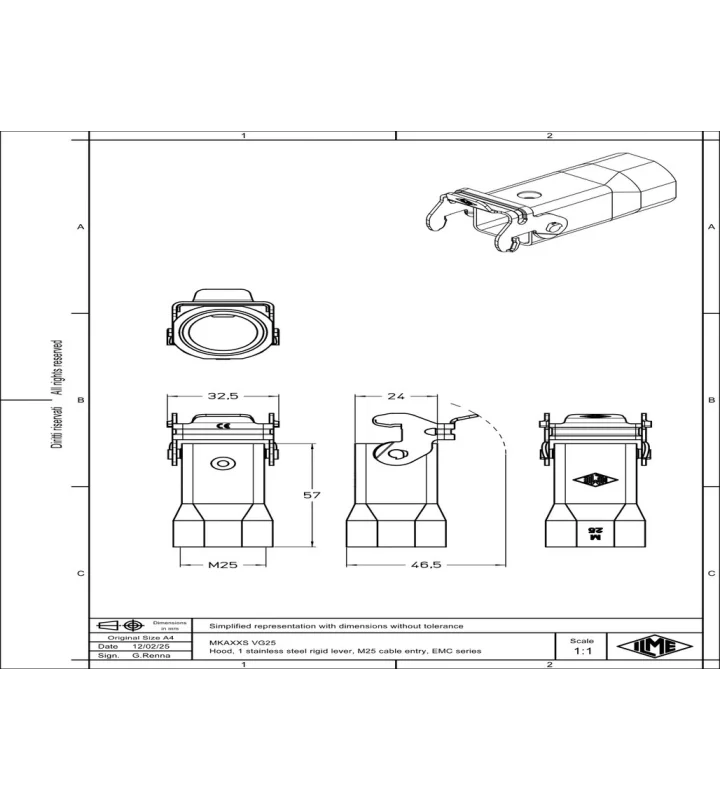

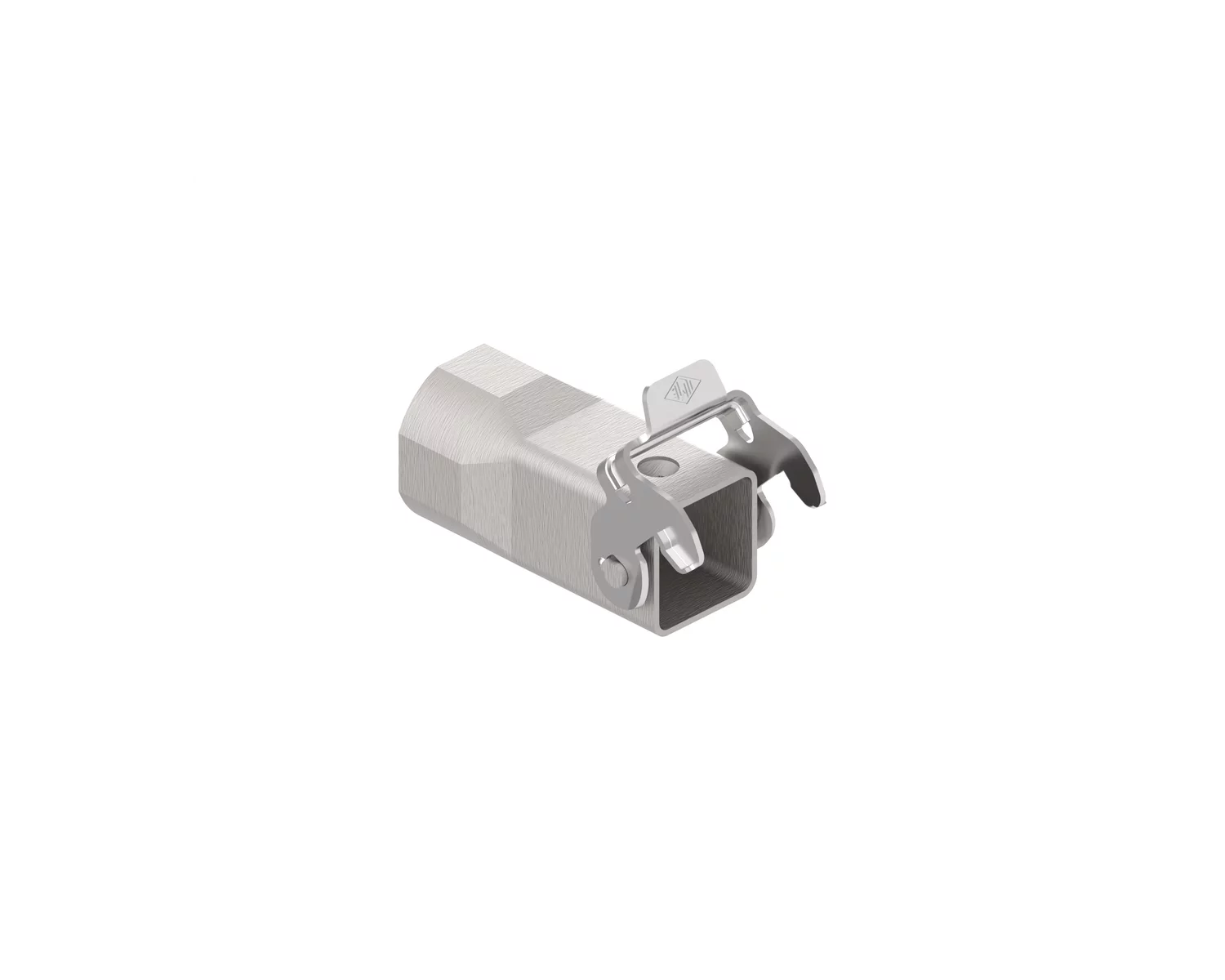

hood, size 21.21, EMC zinc, 1 rigid lever stainless steel, 1xM25 top

MKAXXS VG25

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	21.21
Enclosure series	EMC
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	top cable entry
Cable entry size	M25
Position cable feed	Top entry
Height	57 mm
Width	24 mm
Length	32.5 mm

Material housing	Zinc die-cast
Coating housing	Chromate coating
