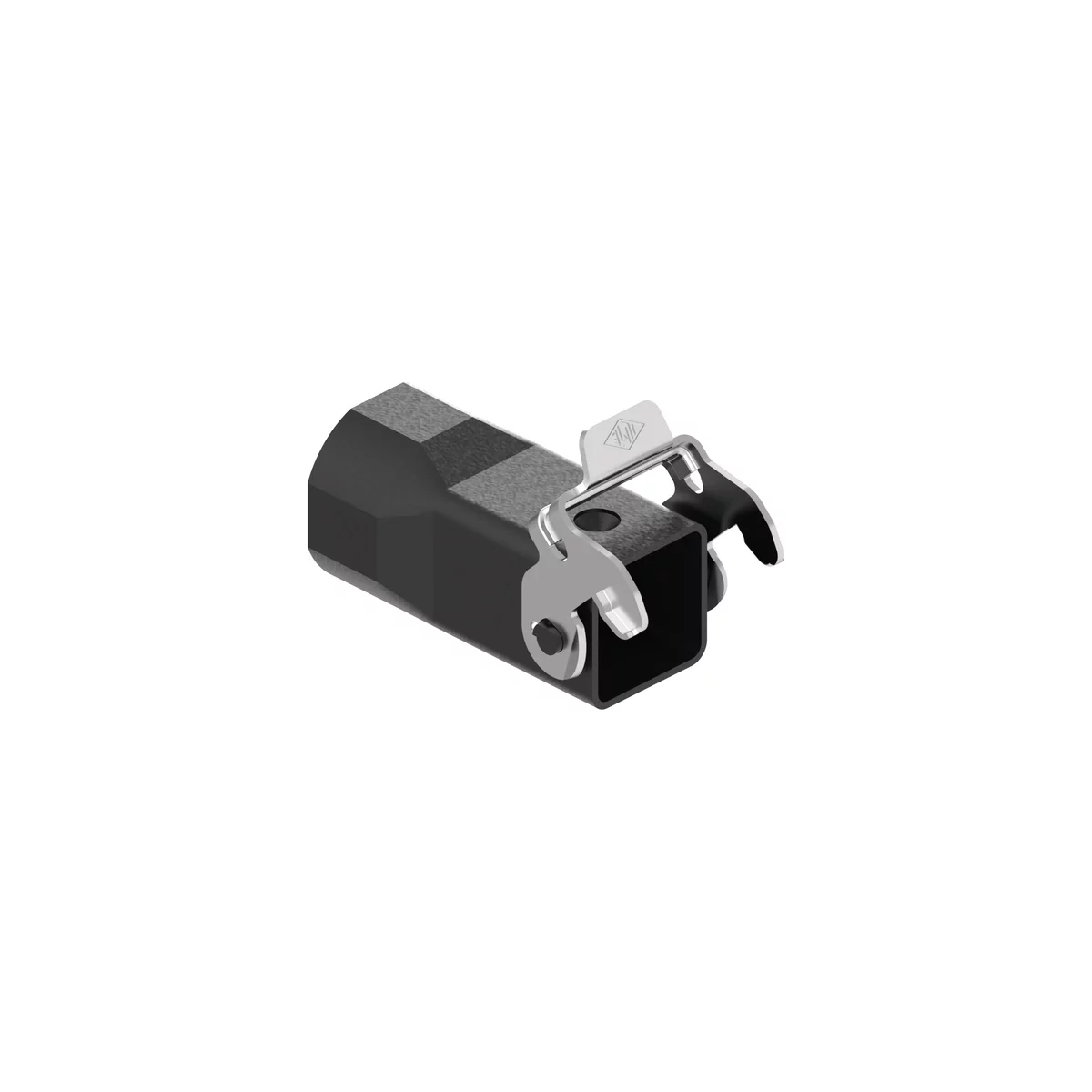

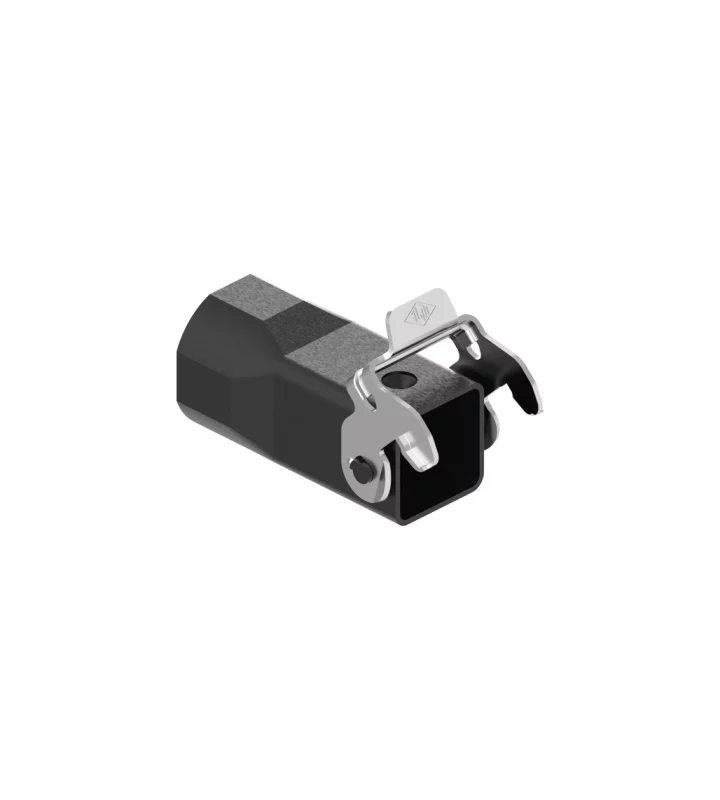

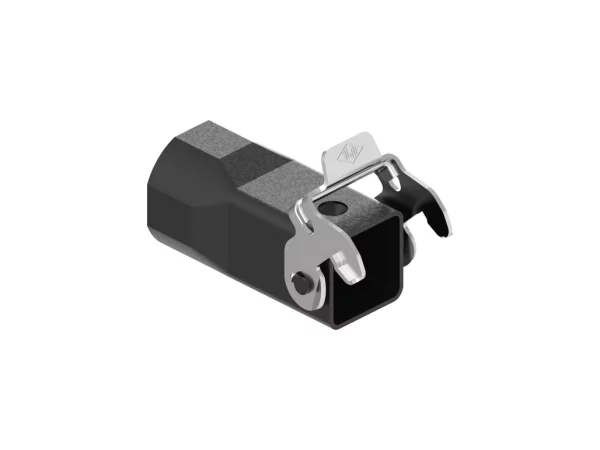

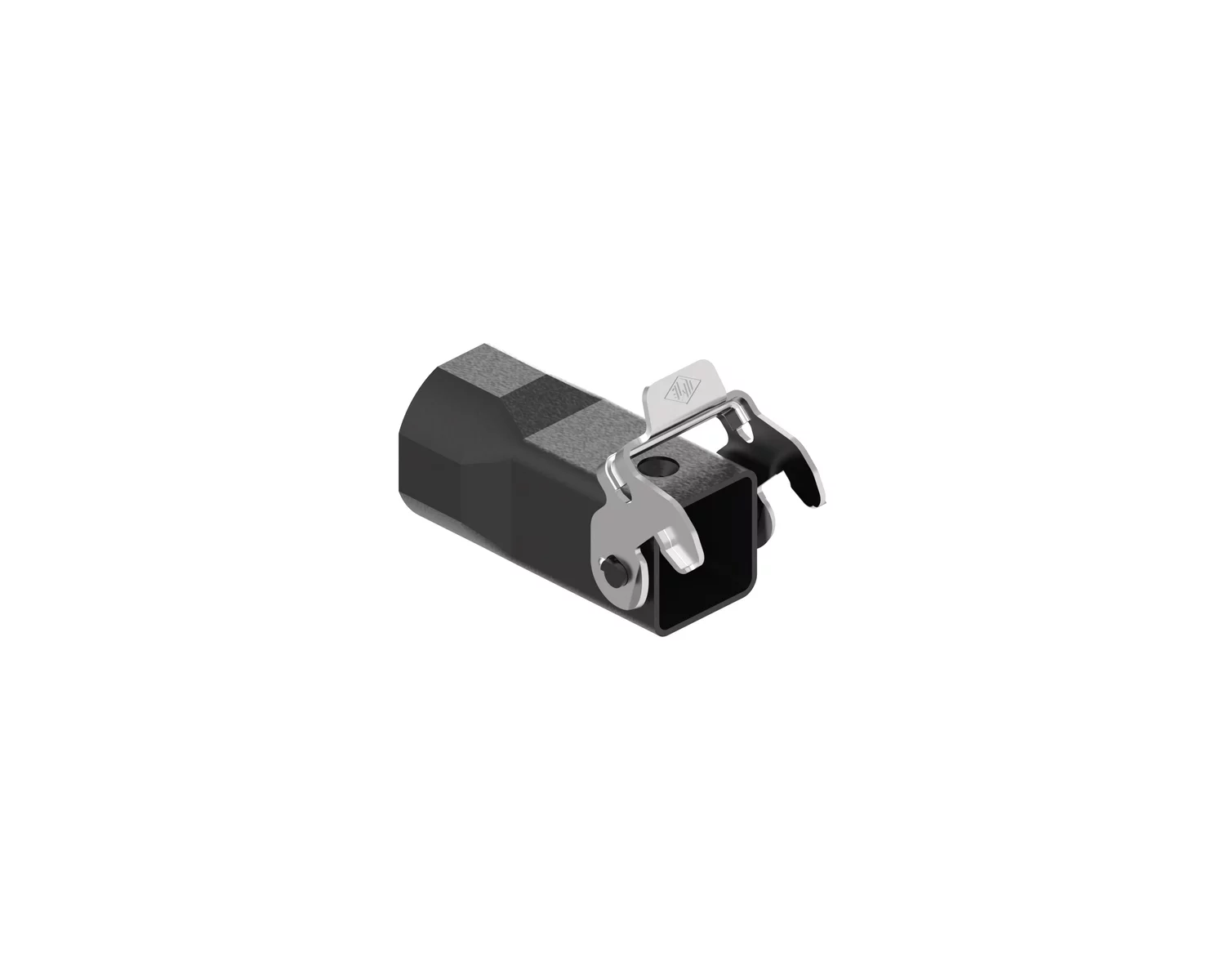

hood, size 21.21, W-TYPE zinc, 1 rigid lever stainless steel, 1xM25 top
MKAXXW VG25
Continue assembling your connector
Add the desired standard inserts to fully configure your connector.
Specifications
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 21.21 |
| Enclosure series | W-TYPE |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP44 | IP66 / IP67 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | top cable entry |
| Cable entry size | M25 |
| Position cable feed | Top entry |

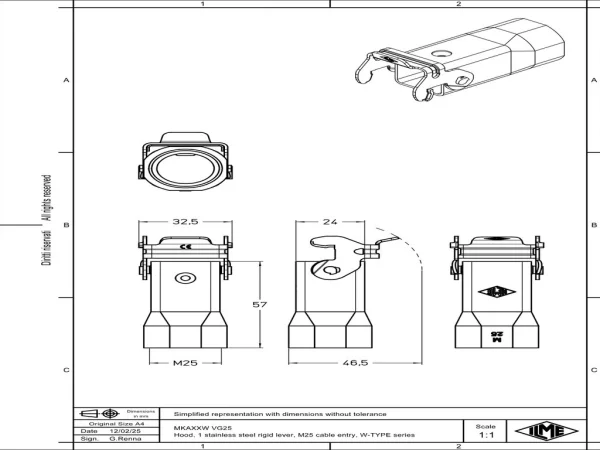

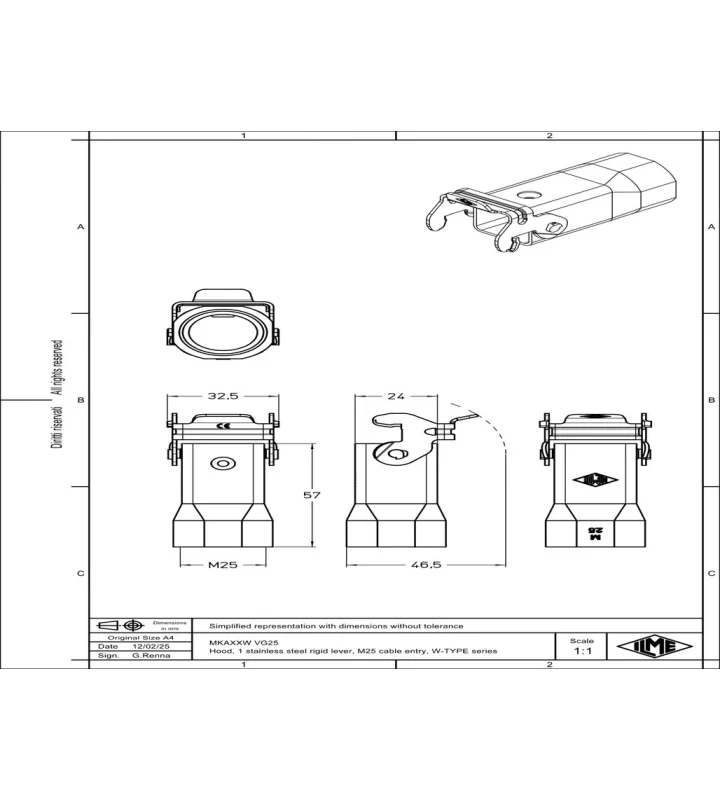

| Height | 57 mm |
| Width | 24 mm |
| Length | 32.5 mm |
Material
| Material housing | Zinc die-cast |
|---|---|
| Coating housing | With epoxy thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
