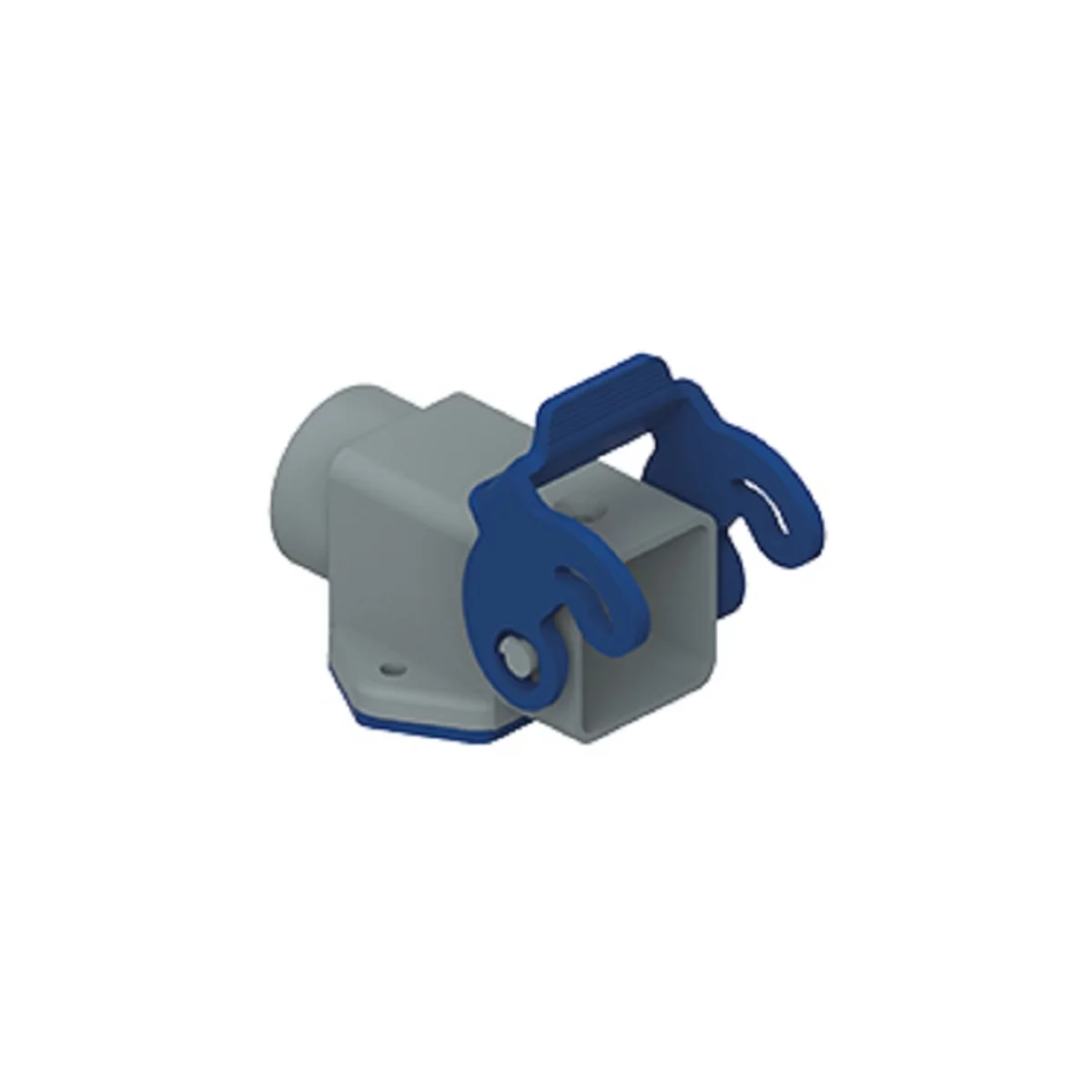

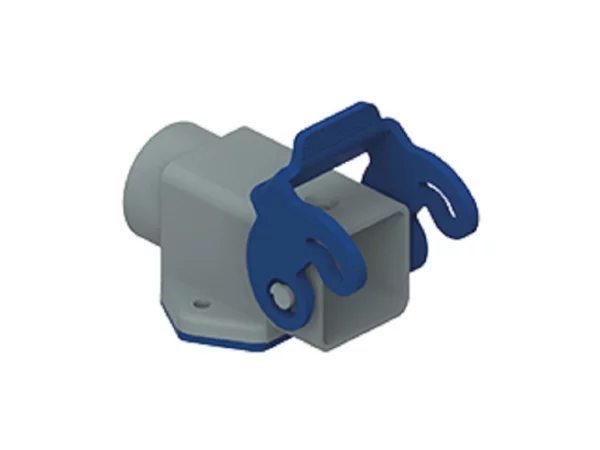

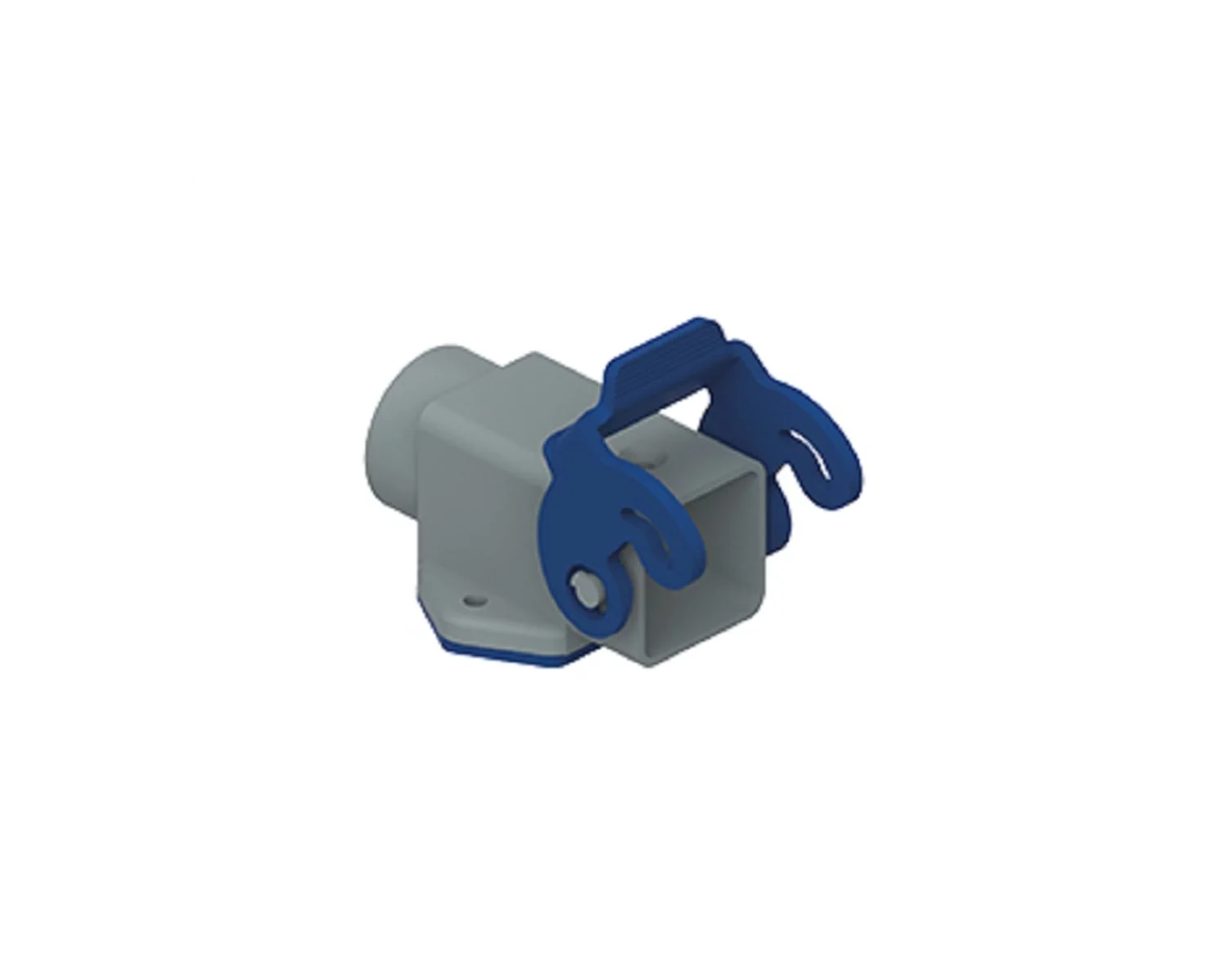

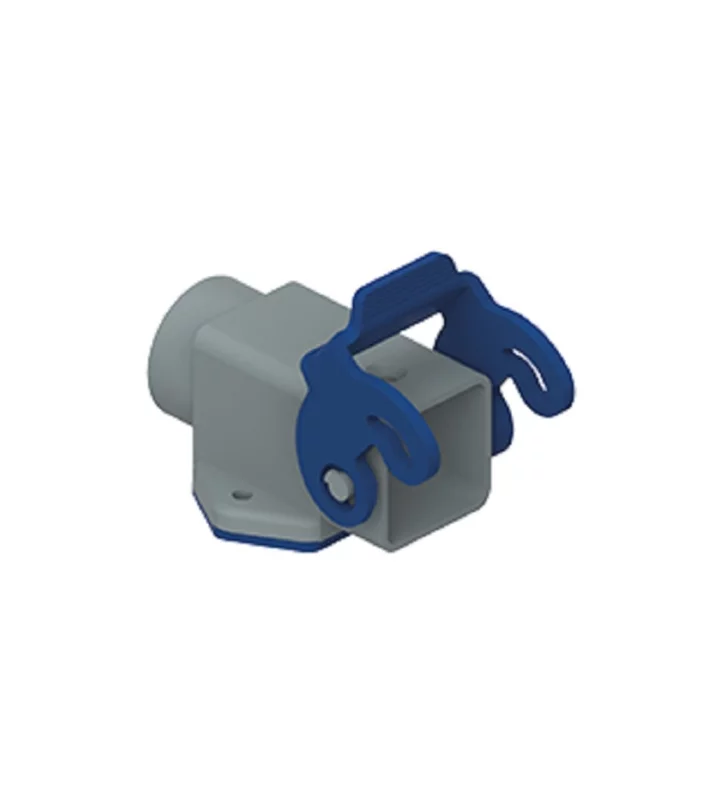

bulkhead mounting housing, angled, size 21.21, CKH plastic, 1 lever, 1xM20 side, sealing kit

MKH IAP20

Add the desired standard inserts to fully configure your connector.

Enclosure type	Angled bulkhead mounting housing
Size	21.21
Enclosure series	CKH
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	70 °C
Operation lower temperature	-40 °C
Operation upper temperature	70 °C
Cable entry type	side cable entry
Cable entry size	M20
Position cable feed	Top entry

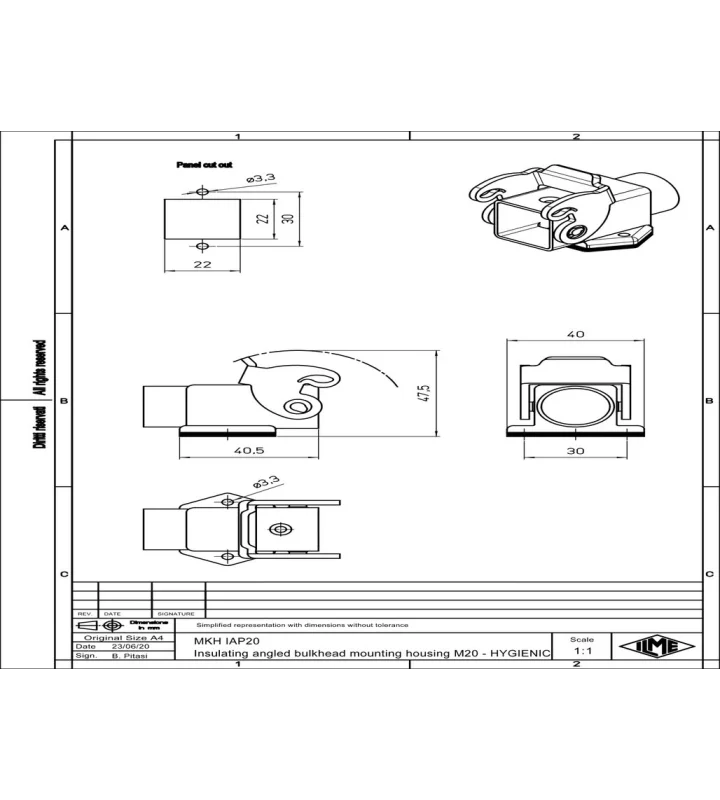

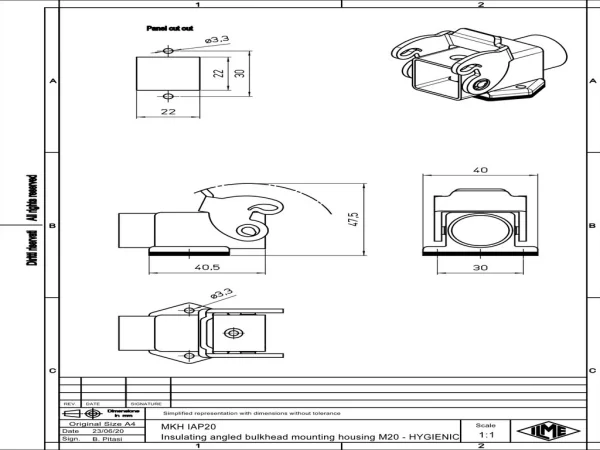

Height	47.5 mm
Width	30 mm
Length	40.5 mm

Material housing	Polyamide
