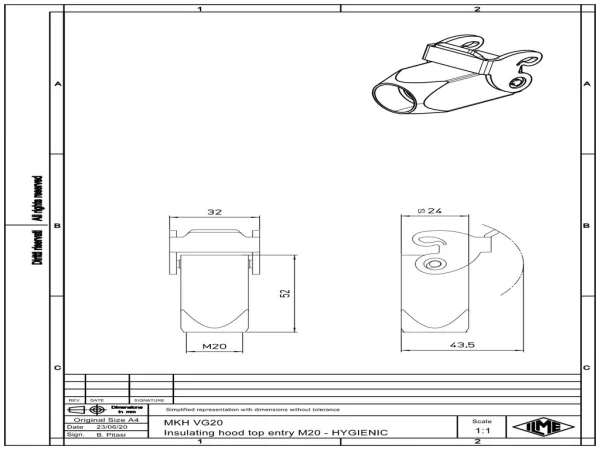

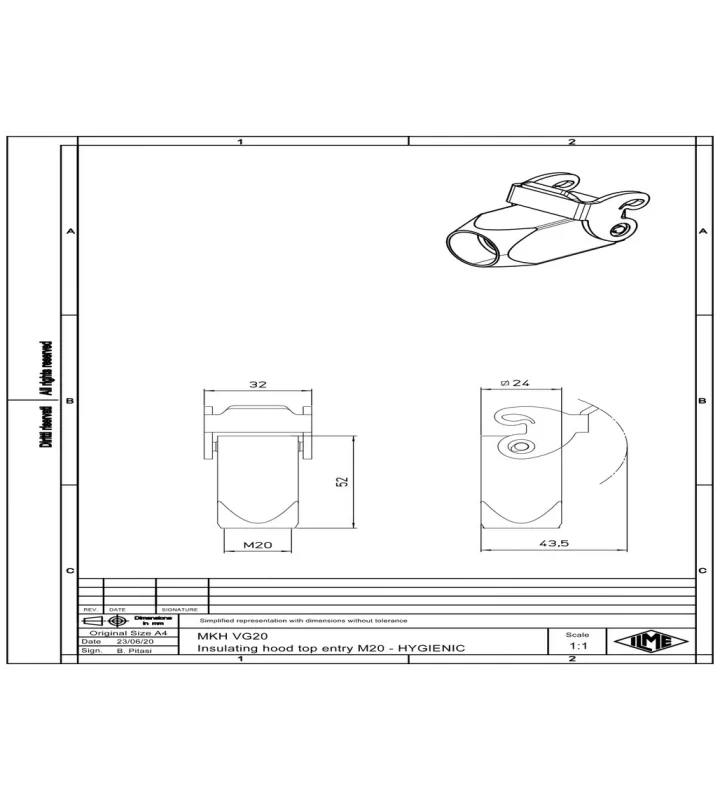

hood, size 21.21, CKH plastic, 1 lever, 1xM20 top

MKH VG20

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	21.21
Enclosure series	CKH
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	70 °C
Operation lower temperature	-40 °C
Operation upper temperature	70 °C
Cable entry type	top cable entry
Cable entry size	M20
Position cable feed	Top entry
Height	52 mm
Width	24 mm
Length	32 mm

Material housing	Polyamide
