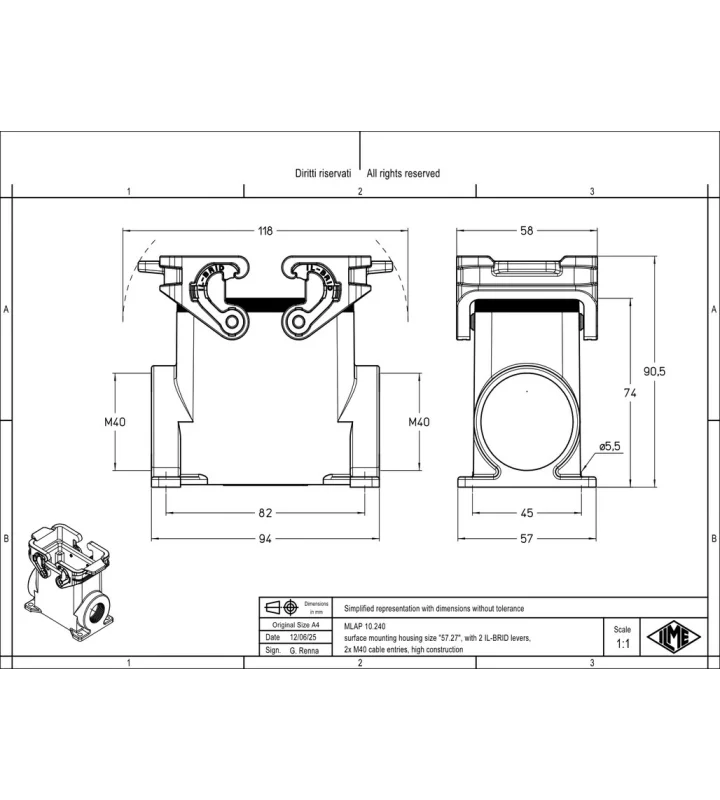

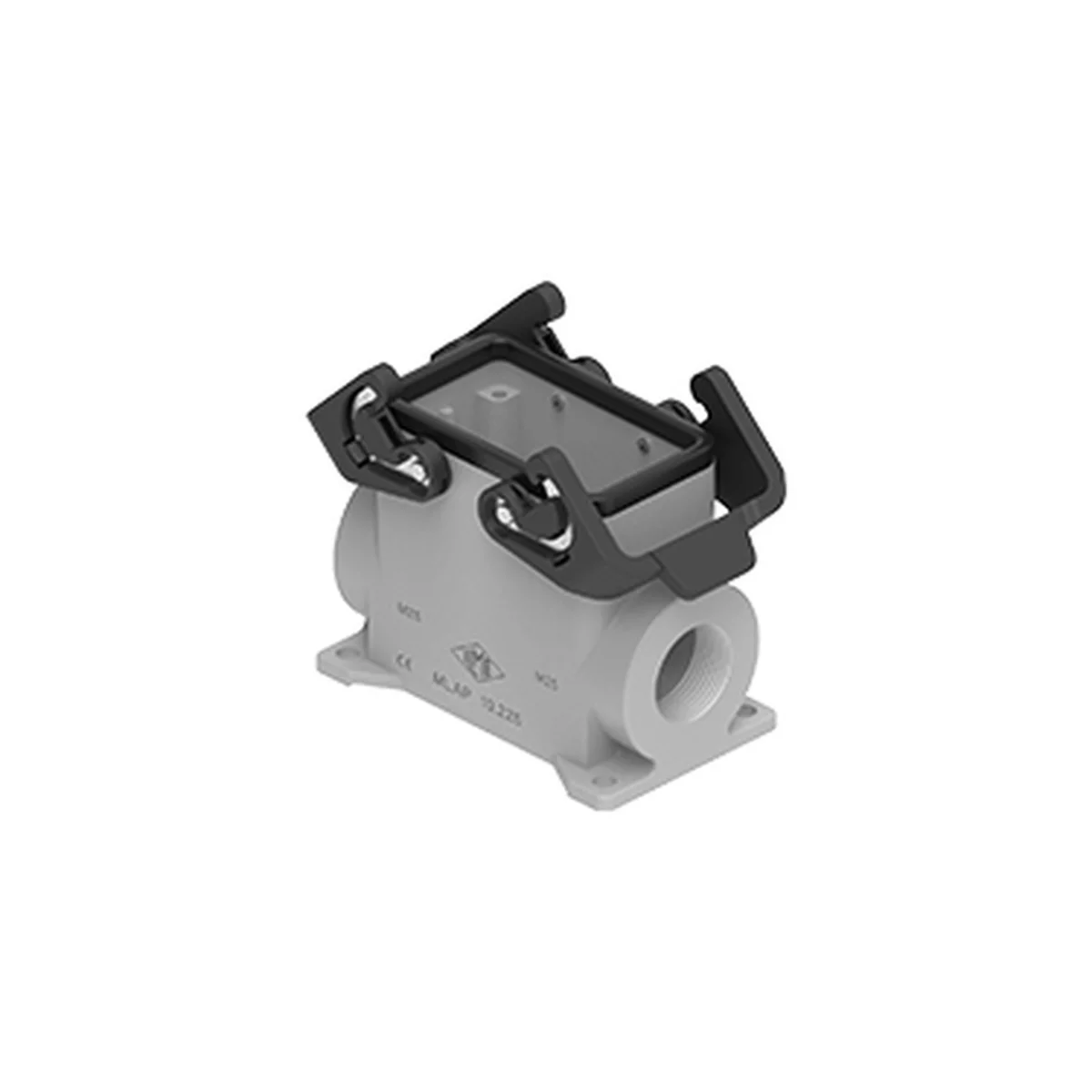

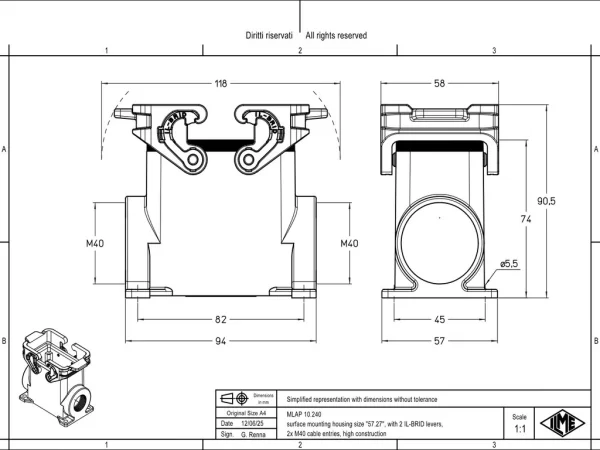

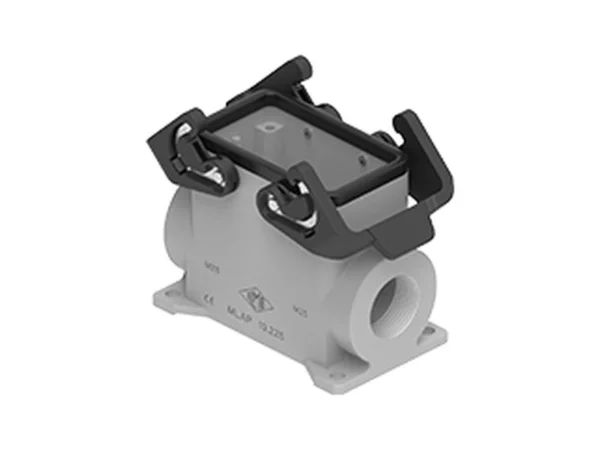

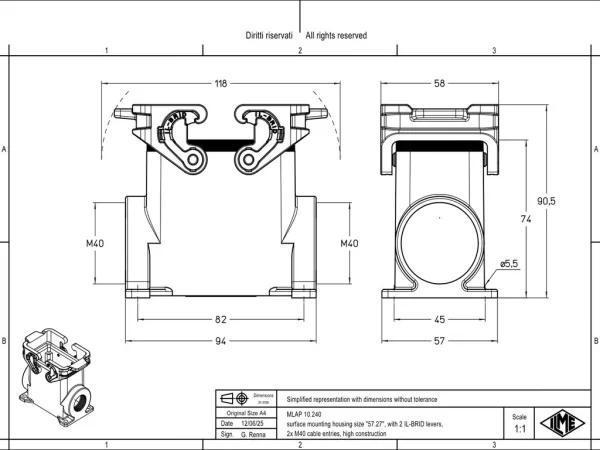

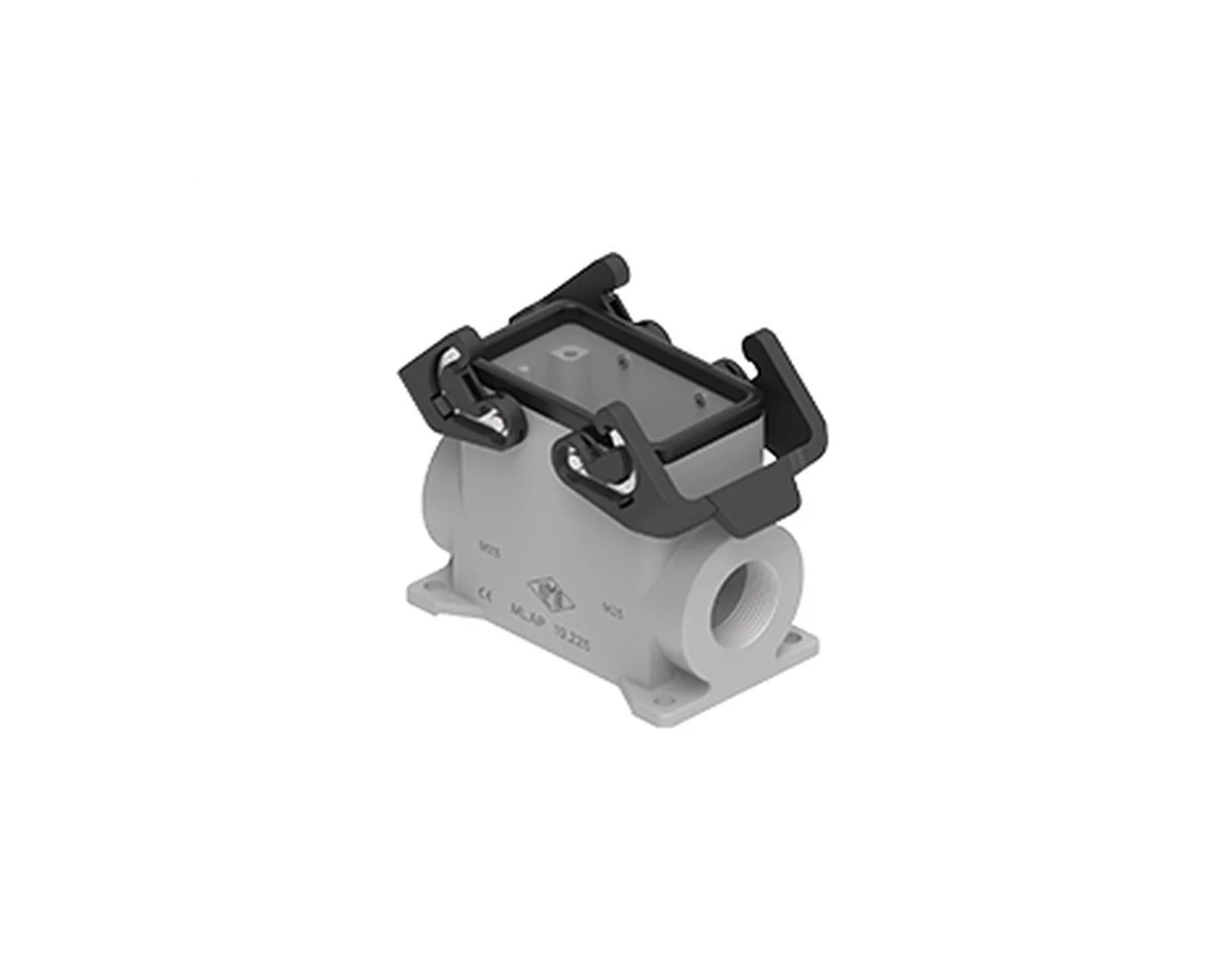

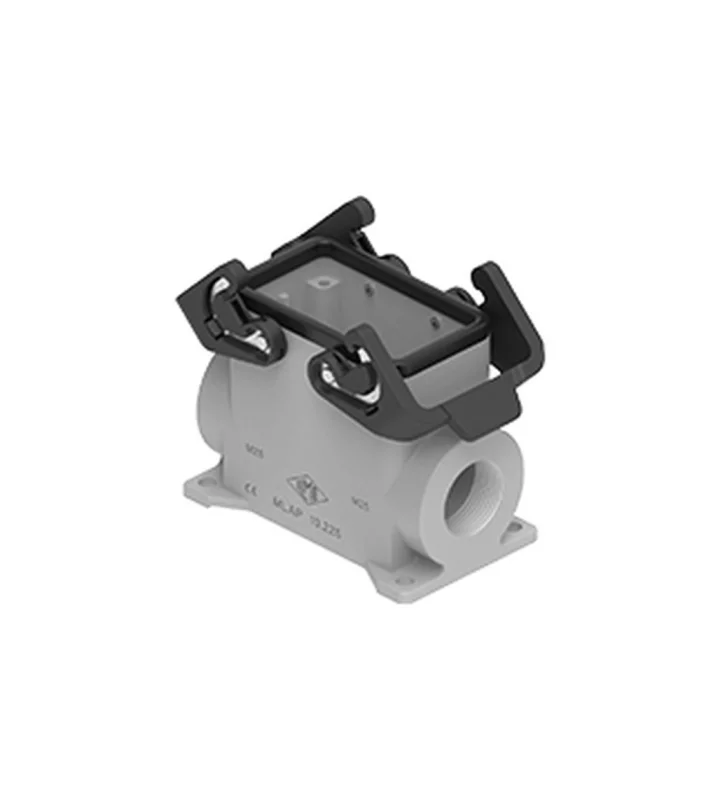

surface mounting housing, size 57.27, IL-BRID stainless steel, 2 levers, 2xM40 side

MLAP 10.240

Add the desired standard inserts to fully configure your connector.

Enclosure type	Surface mounting housing
Size	57.27
Enclosure series	IL-BRID
Closing type	With 2 levers
Locking mechanism	Double locking levers
Protection degree	IP65 / IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	side cable entry
Cable entry size	M40 x 2
Position cable feed	Side entry
Height	90.5 mm
Width	57 mm
Length	94 mm

Material housing	Stainless steel
