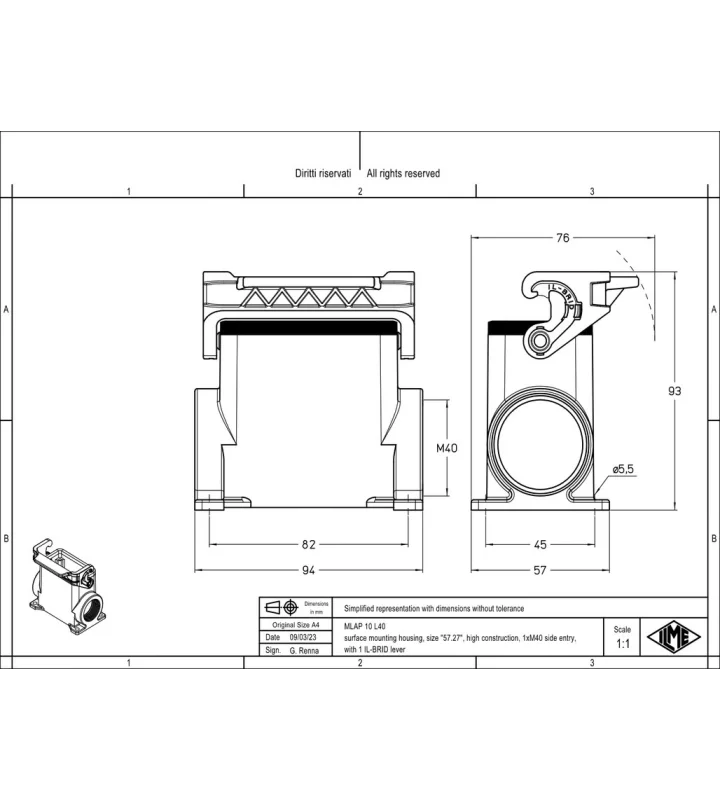

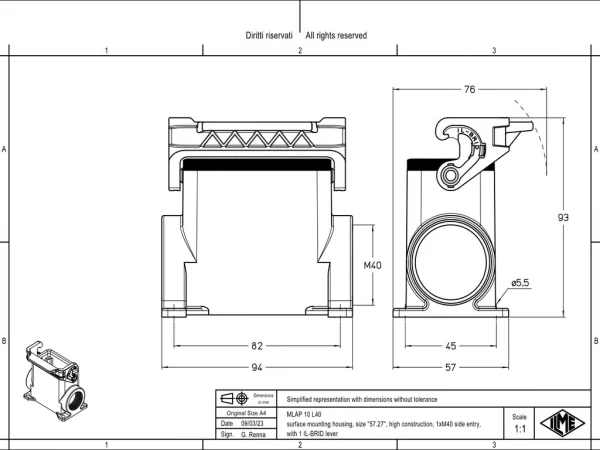

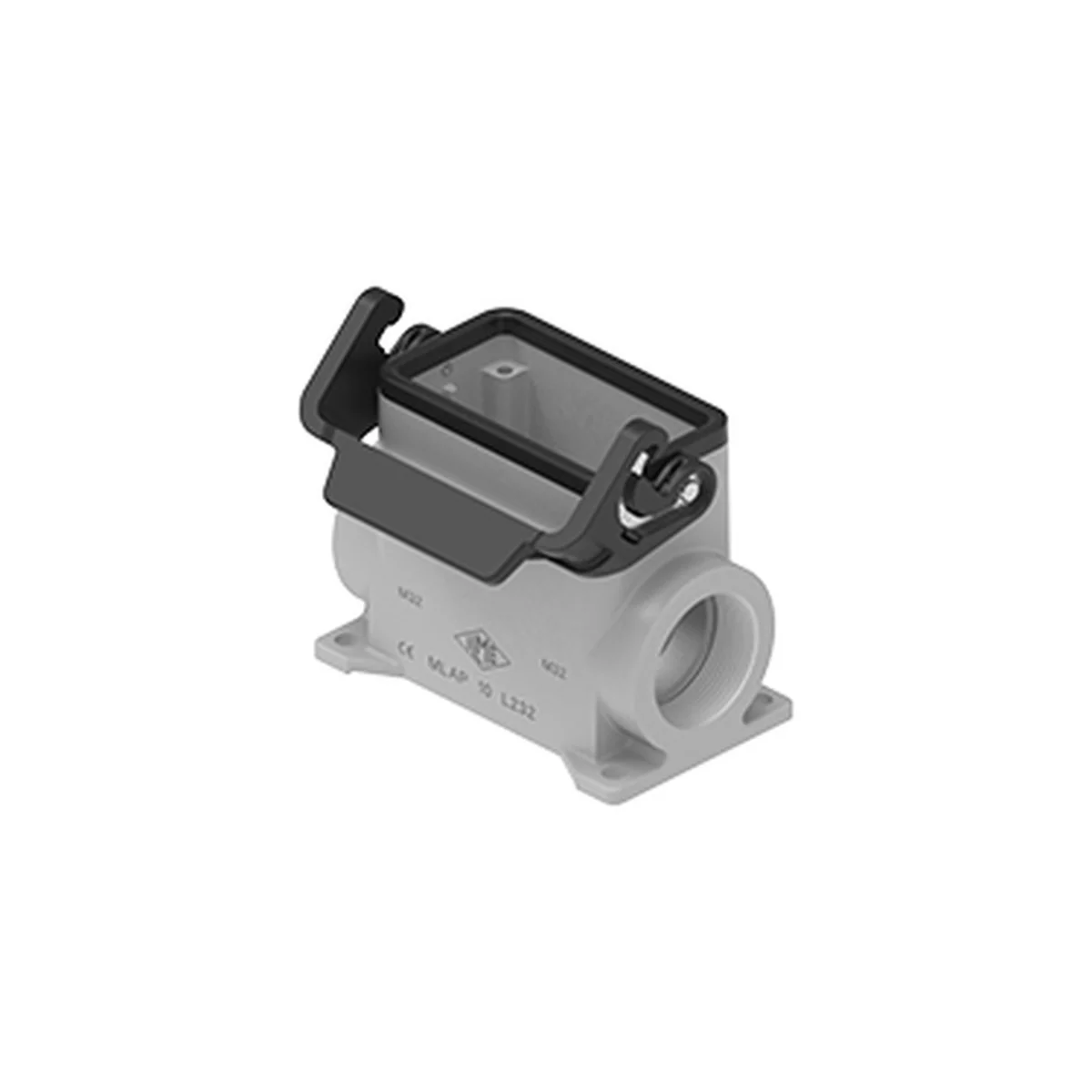

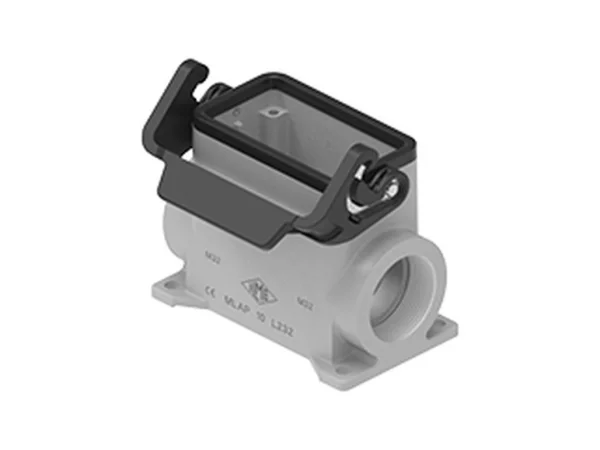

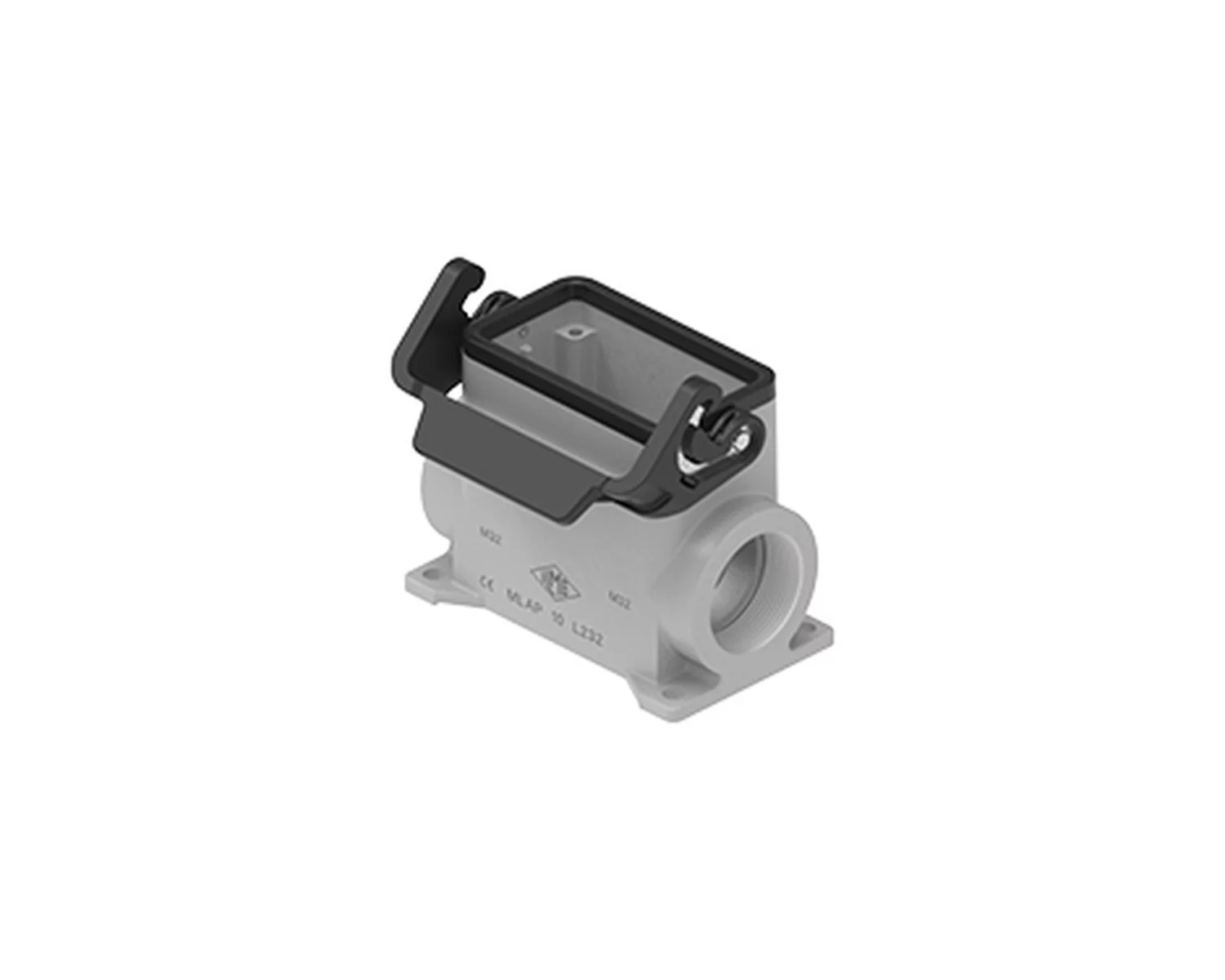

surface mounting housing, size 57.27, IL-BRID stainless steel, 1 lever, 1xM40 side

MLAP 10 L40

Add the desired standard inserts to fully configure your connector.

Enclosure type	Surface mounting housing
Size	57.27
Enclosure series	IL-BRID
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP65 / IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	side cable entry
Cable entry size	M40
Position cable feed	Side entry
Height	93 mm
Width	57 mm
Length	94 mm

Material housing	Stainless steel
