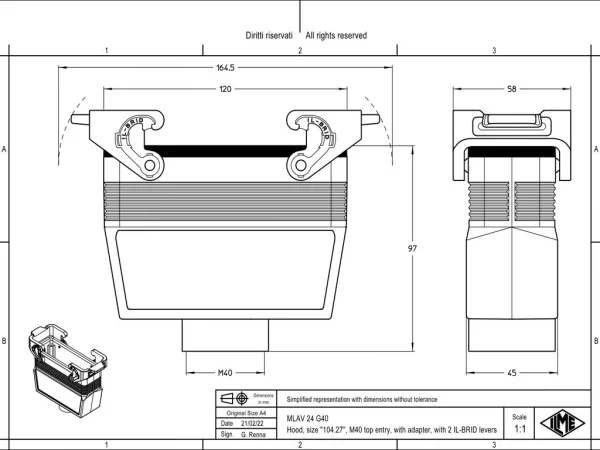

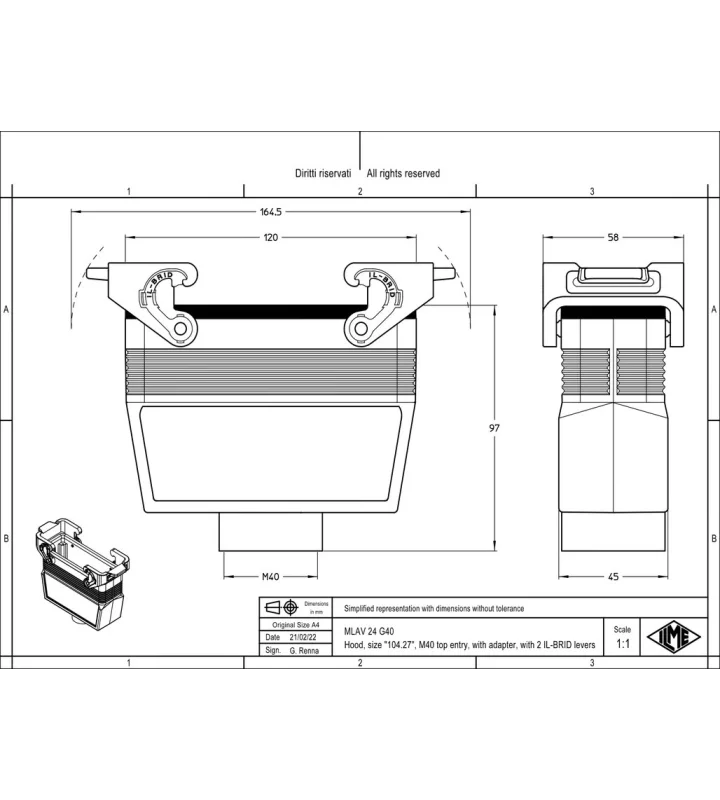

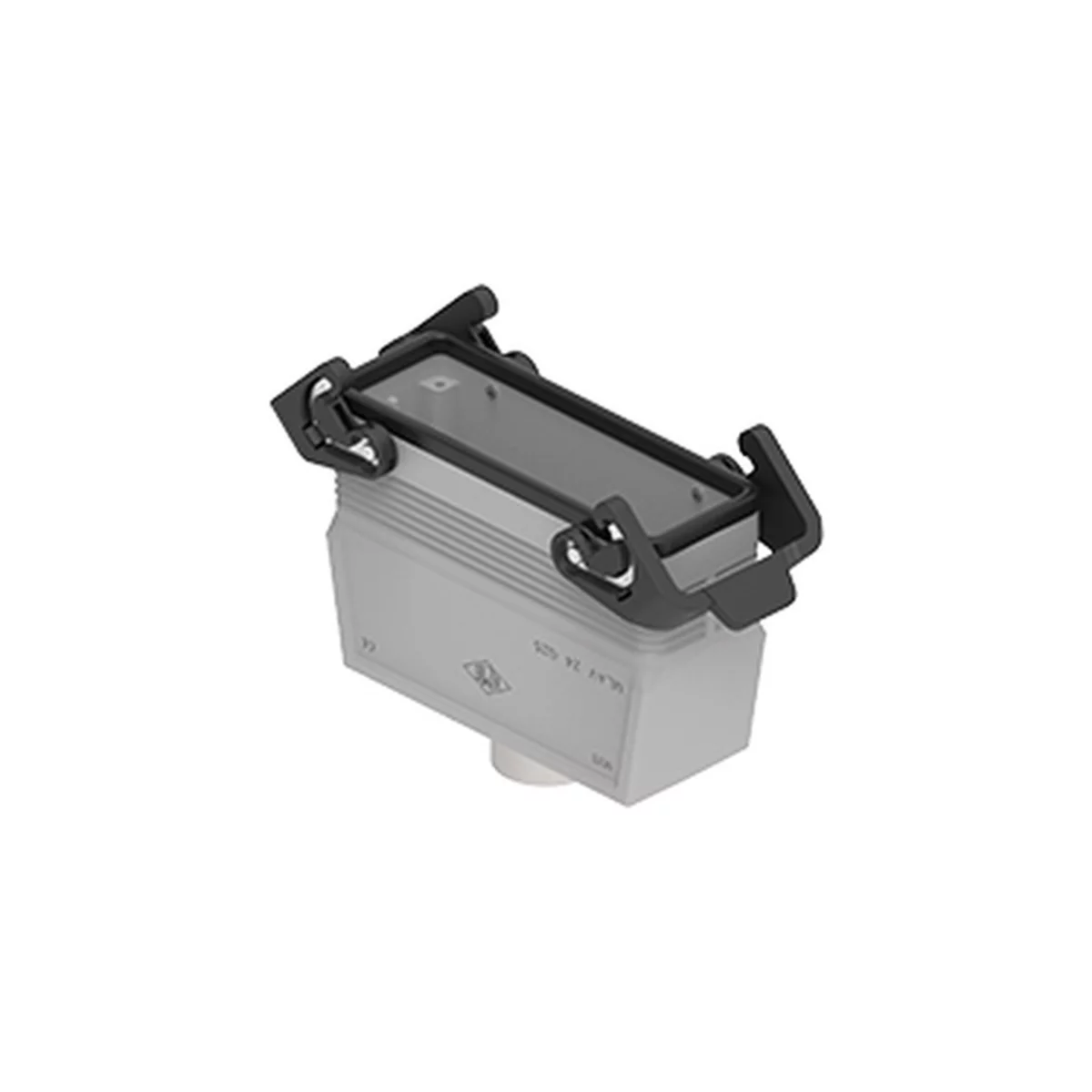

hood, size 104.27, IL-BRID stainless steel, 2 levers, 1xM40 top

MLAV 24 G40

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	104.27
Enclosure series	IL-BRID
Closing type	With 2 levers
Locking mechanism	Double locking levers
Protection degree	IP65 / IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	top cable entry with adapter
Cable entry size	M40
Position cable feed	Top entry
Height	113 mm
Width	45 mm
Length	120 mm

Material housing	Stainless steel
