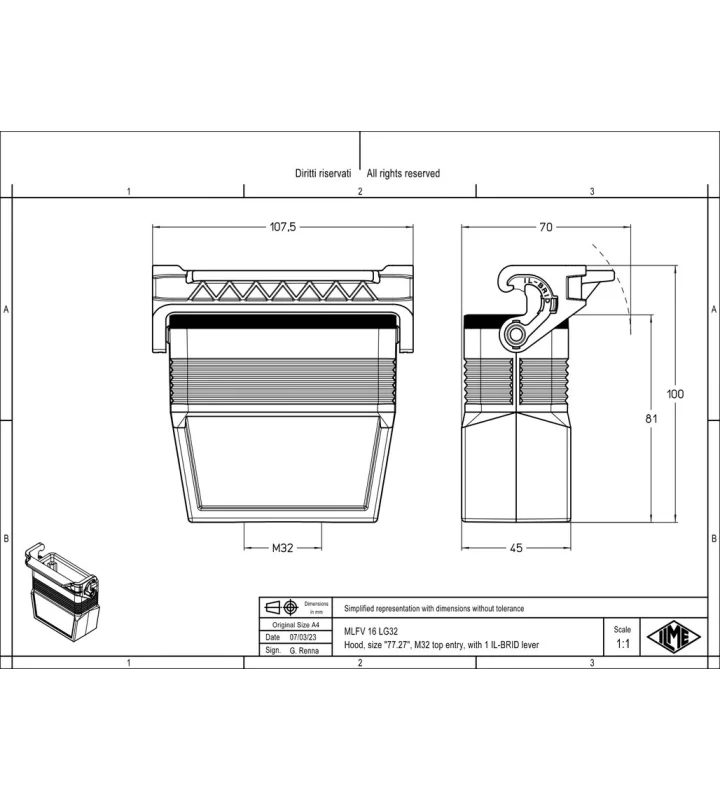

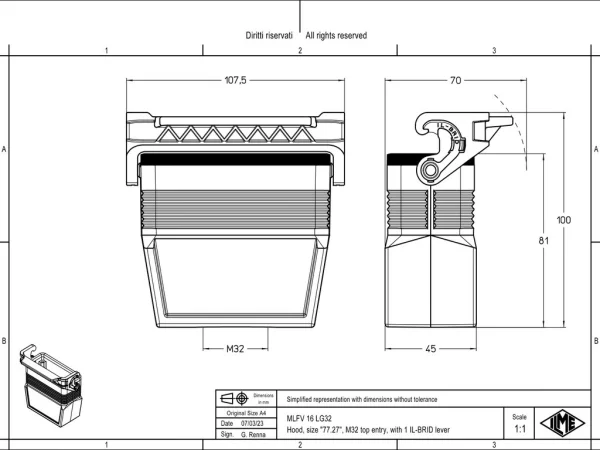

hood, size 77.27, IL-BRID stainless steel, 1 lever, 1xM32 top

MLFV 16 LG32

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	77.27
Enclosure series	IL-BRID
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP65 / IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	top cable entry
Cable entry size	M32
Position cable feed	Top entry
Height	100 mm
Width	45 mm
Length	107.5 mm

Material housing	Stainless steel
