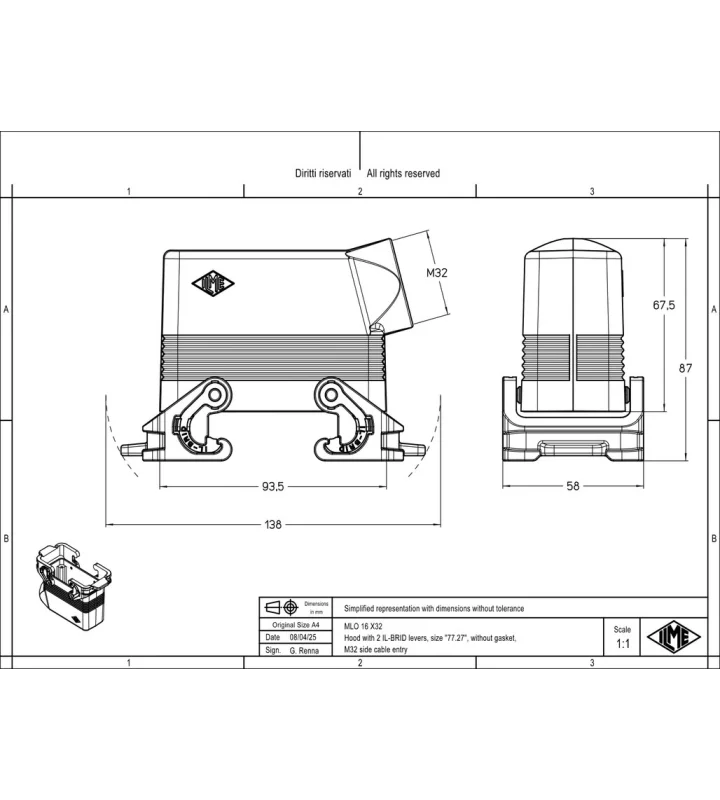

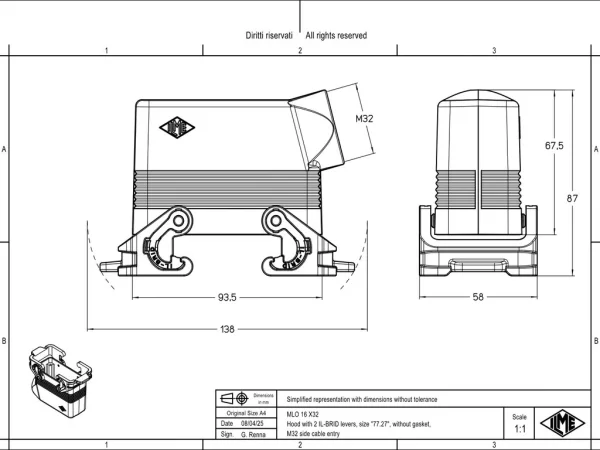

hood, size 77.27, IL-BRID stainless steel, 2 levers, 1xM32 side

MLO 16 X32

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	77.27
Enclosure series	IL-BRID
Closing type	With 2 levers
Locking mechanism	Double locking levers
Protection degree	IP65 / IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	side cable entry with adapter
Cable entry size	M32
Position cable feed	Side entry
Height	87 mm
Width	58 mm
Length	93.5 mm

Material housing	Stainless steel
