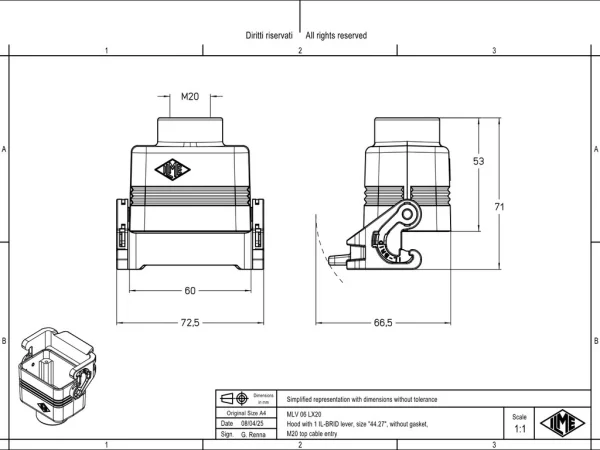

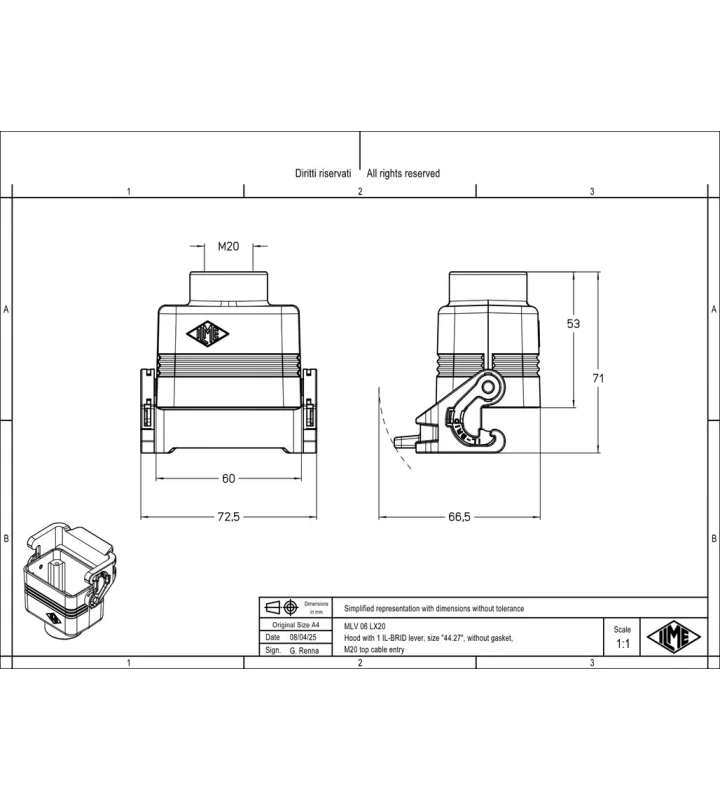

hood, size 44.27, IL-BRID stainless steel, 1 lever, 1xM20 top

MLV 06 LX20

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	44.27
Enclosure series	IL-BRID
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP65 / IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	top cable entry with adapter
Cable entry size	M20
Position cable feed	Top entry
Height	71 mm
Width	66.5 mm
Length	72.5 mm

Material housing	Stainless steel
