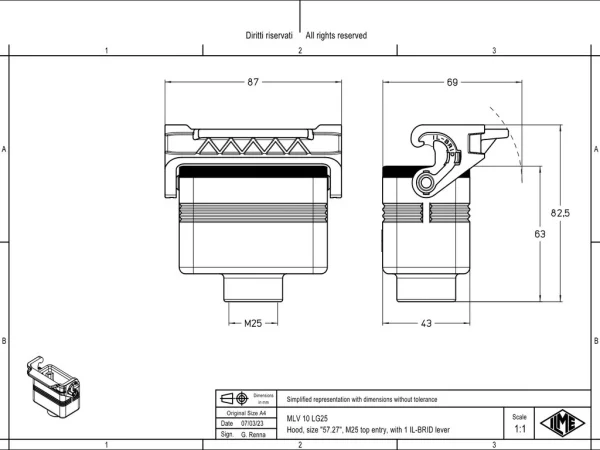

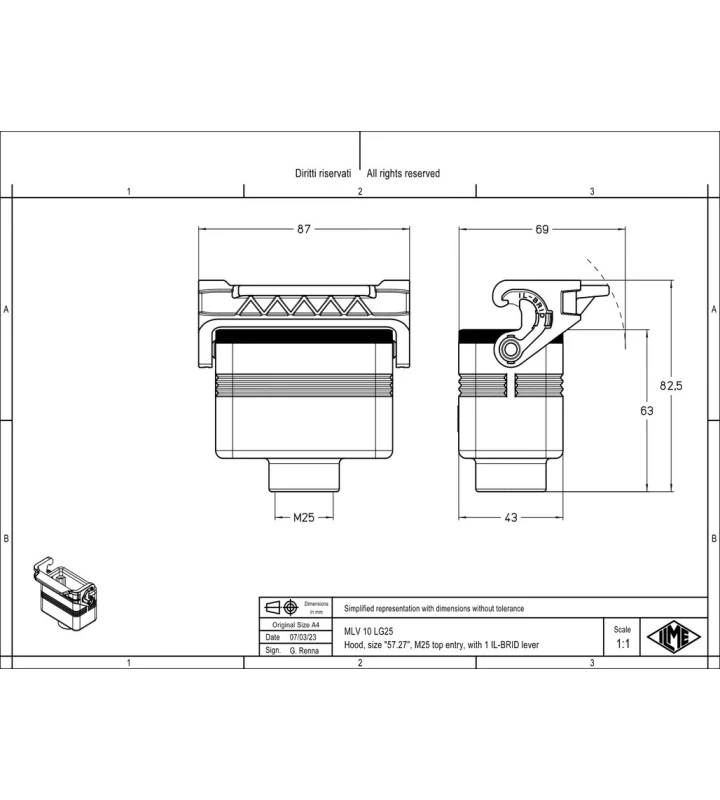

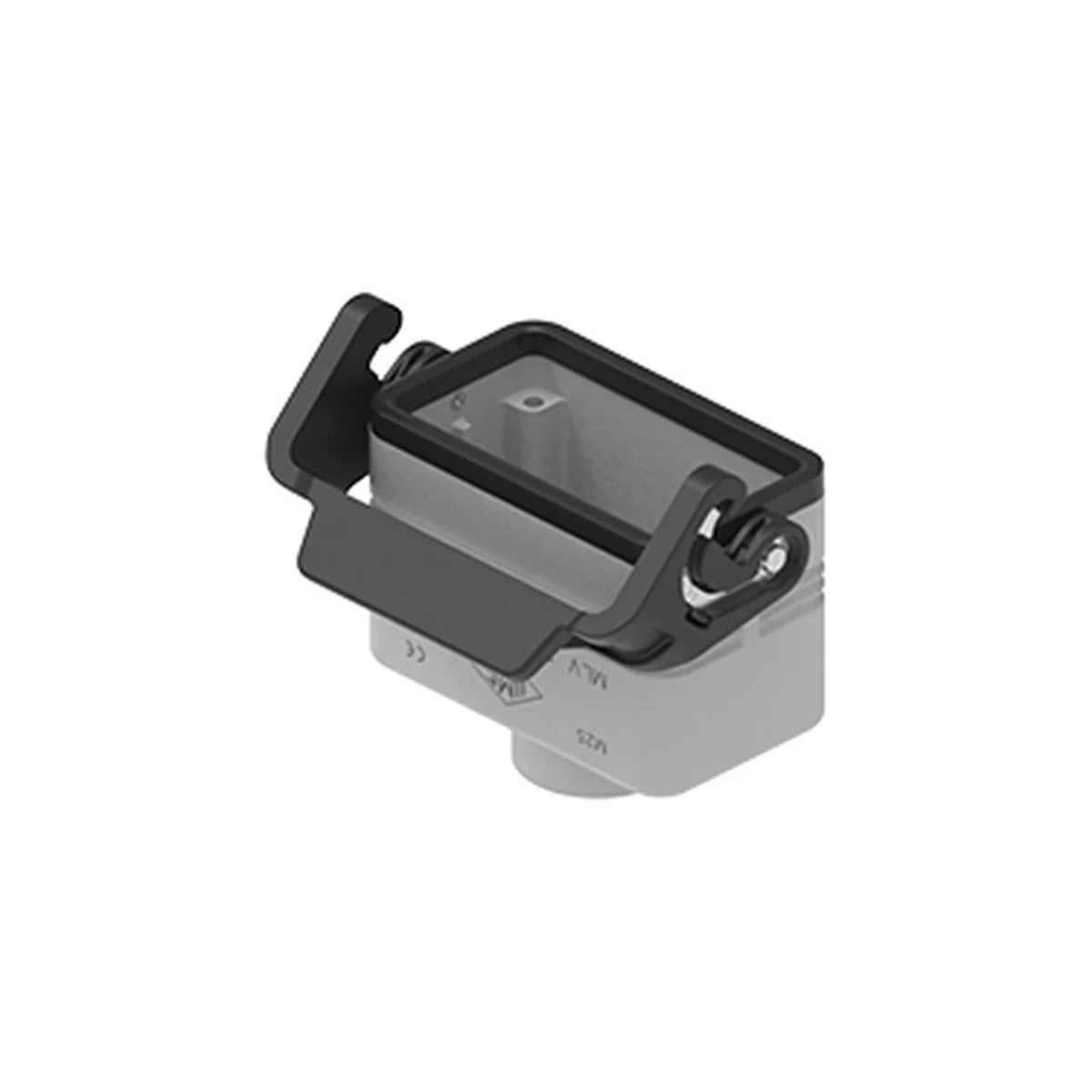

hood, size 57.27, IL-BRID stainless steel, 1 lever, 1xM25 top

MLV 10 LG25

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	57.27
Enclosure series	IL-BRID
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP65 / IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	top cable entry with adapter
Cable entry size	M25
Position cable feed	Top entry
Height	75 mm
Width	43 mm
Length	72.5 mm

Material housing	Stainless steel
