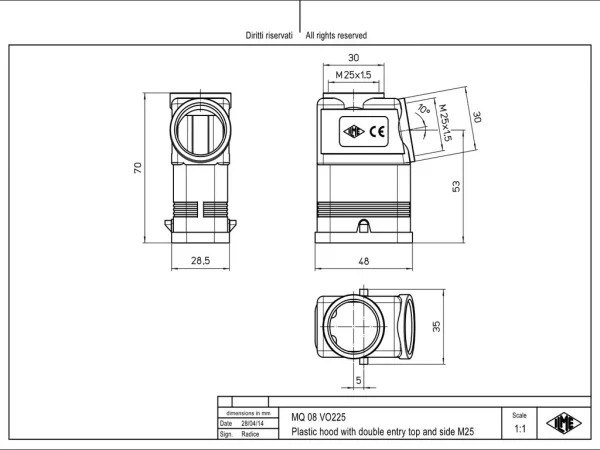

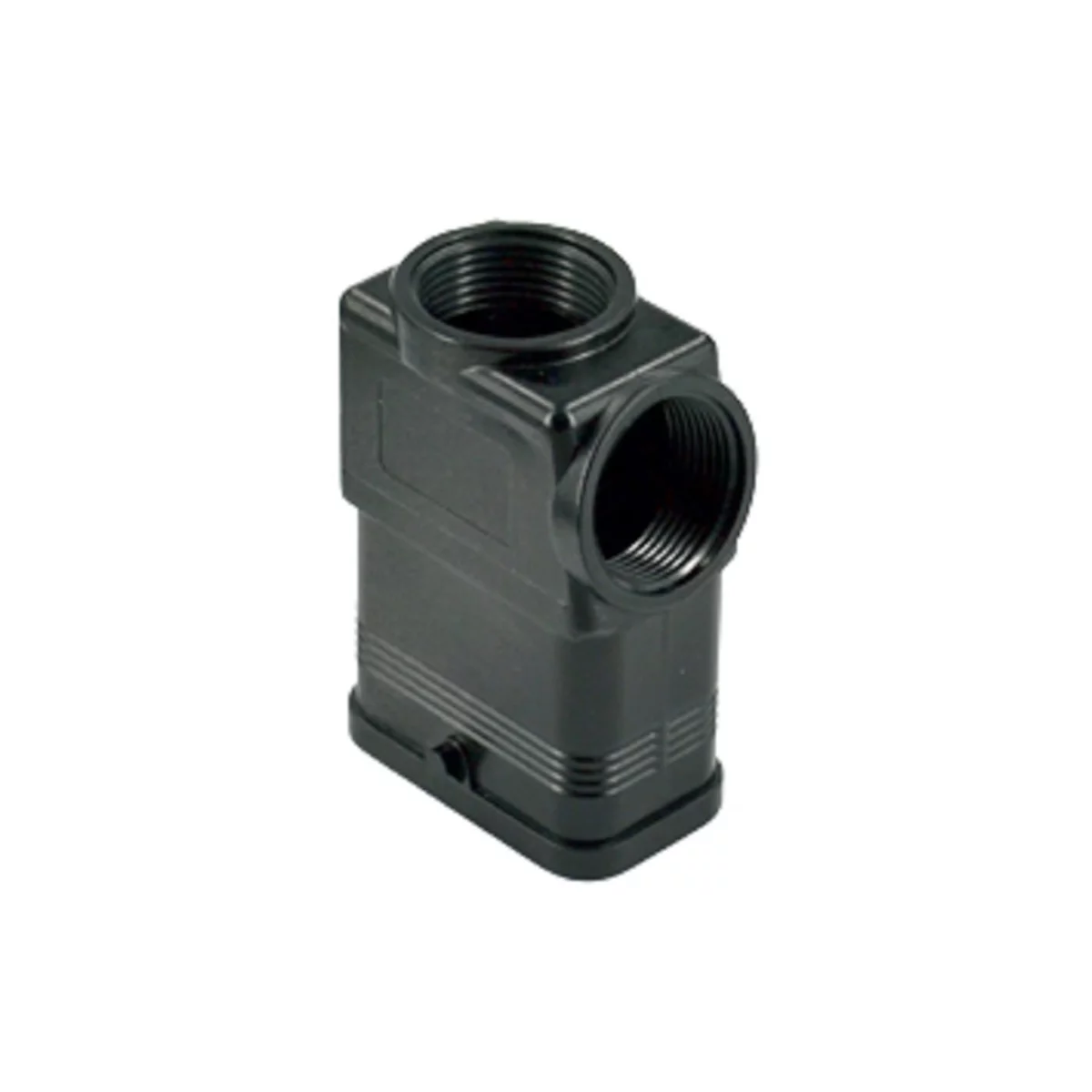

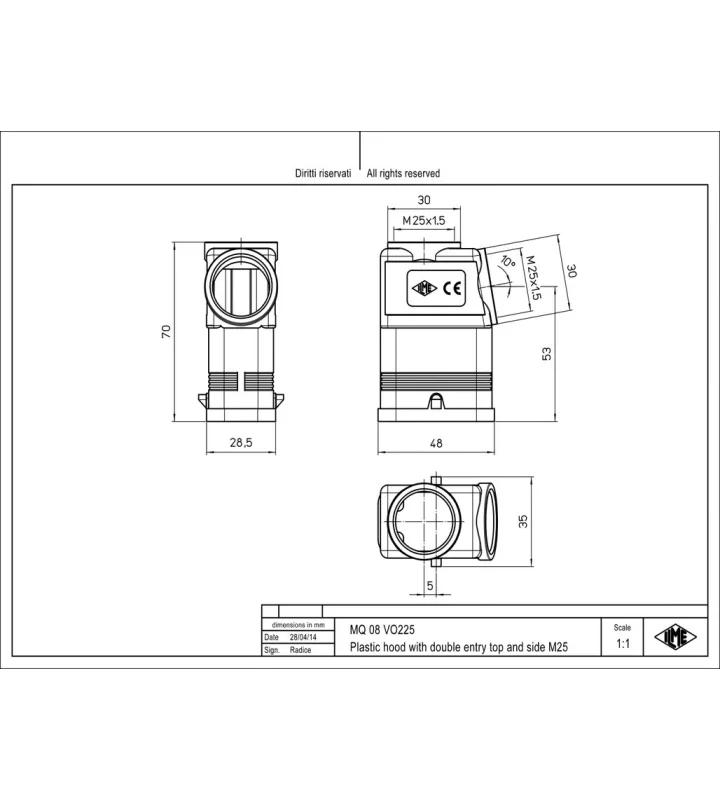

hood, size 32.13, CQ plastic, 2 pegs, 1xM25 top, 1xM25 side
MQ 08 VO225
Continue assembling your connector
Add the desired standard inserts to fully configure your connector.
Specifications
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 32.13 |
| Enclosure series | CQ |
| Closing type | With 2 pegs |
| Locking mechanism | Single locking lever |
| Protection degree | IP66 / IP67 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | top and side cable entry |
| Cable entry size | M25 x 2 |
| Position cable feed | Top and side entry |
| Height | 70 mm |
| Width | 28.5 mm |
| Length | 48 mm |
| Remark | Metric thread on the internal enclosure |
Material
| Material housing | Thermoplastic |
|---|---|
| Coating housing | Uncoated |
| Inflammability class of insulation material acc. with UL94 | V0 |
| Extra information | Corrosion resistant,UV resistant,With interlocking device |
