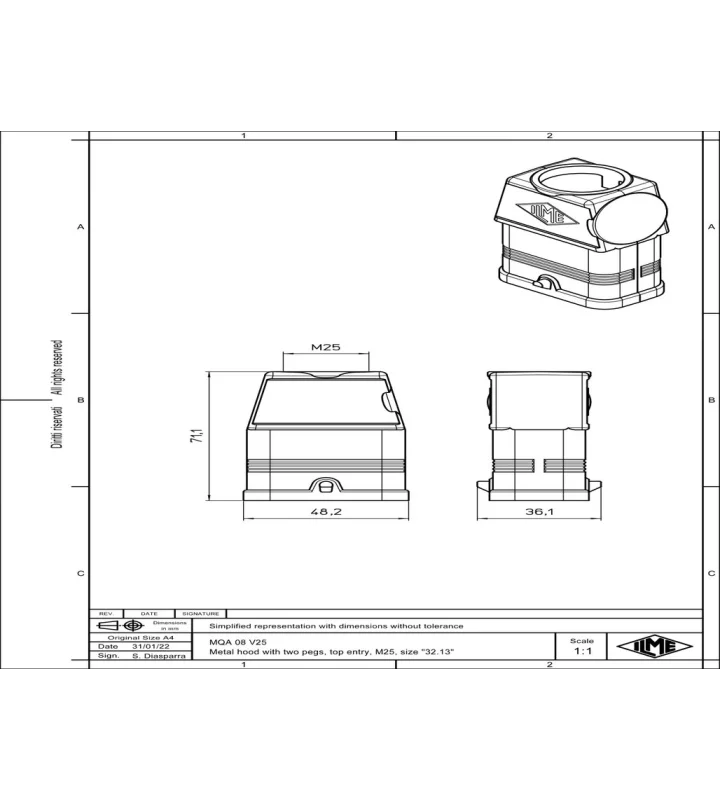

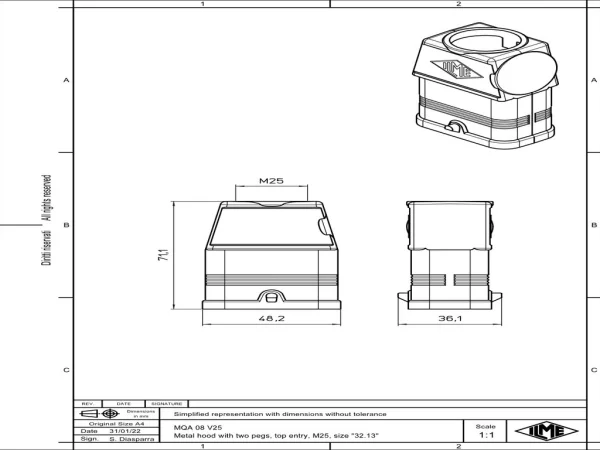

hood, size 32.13, CQ zinc, 2 pegs, 1xM25 top

MQA 08 V25

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	32.13
Enclosure series	CQ
Closing type	With 2 pegs
Locking mechanism	Single locking lever
Protection degree	IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	top cable entry
Cable entry size	M25
Position cable feed	Top entry
Height	71.1 mm
Width	36.1 mm
Length	48.2 mm

Material housing	Zinc die-cast
