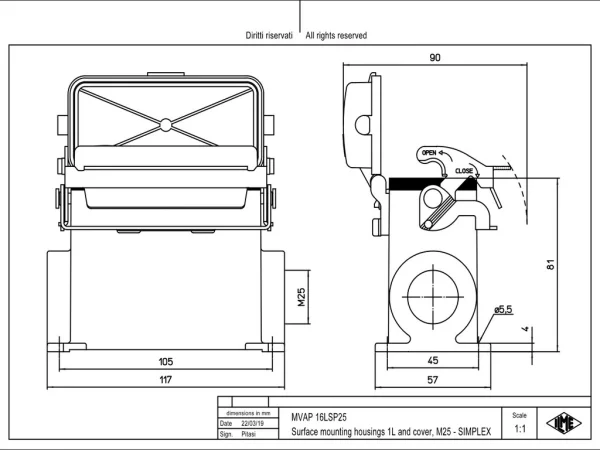

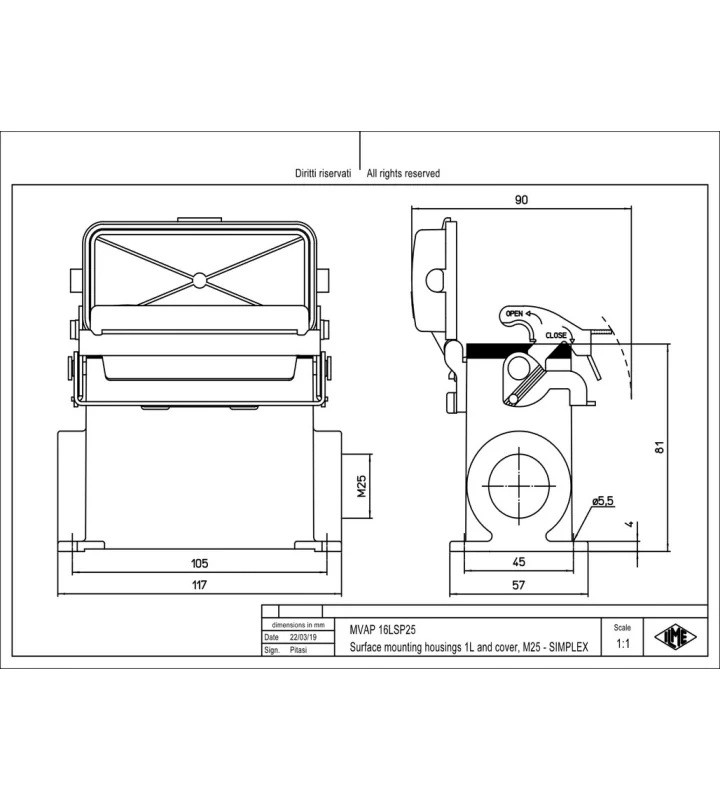

surface mount. hous., high, size 77.27, V-TYPE alu, 1 lever stainl. steel, 1xM25 side, spring cover

MVAP 16LSP25

Add the desired standard inserts to fully configure your connector.

Enclosure type	Surface mounting housing
Size	77.27
Enclosure series	V-TYPE
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP65
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	side cable entry
Cable entry size	M25
Position cable feed	Side entry
Height	81 mm
Width	45 mm
Length	105 mm

Material housing	Die cast aluminium alloy
Coating housing	With epoxy-polyester thermosetting powder coating
Inflammability class of insulation material acc. with UL94	V2
