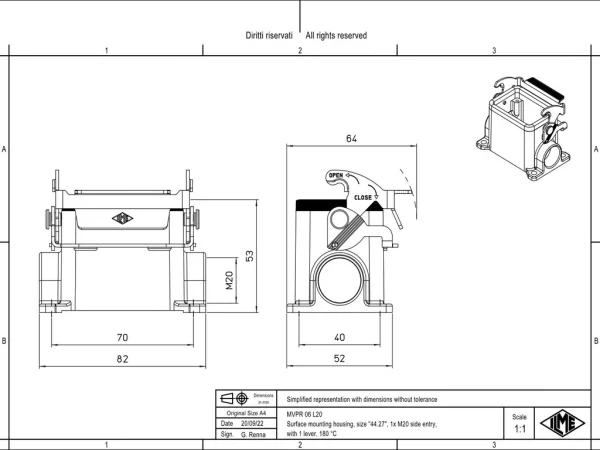

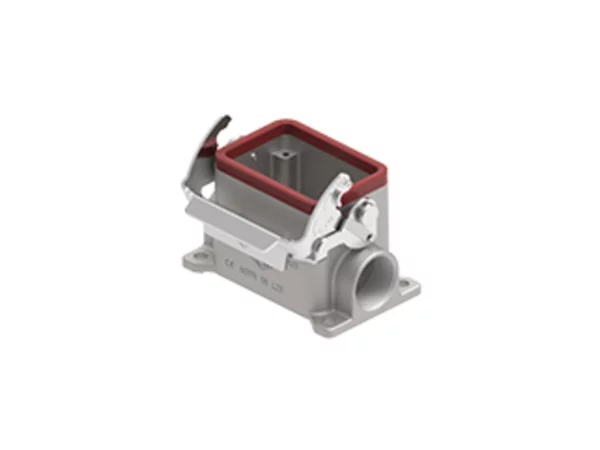

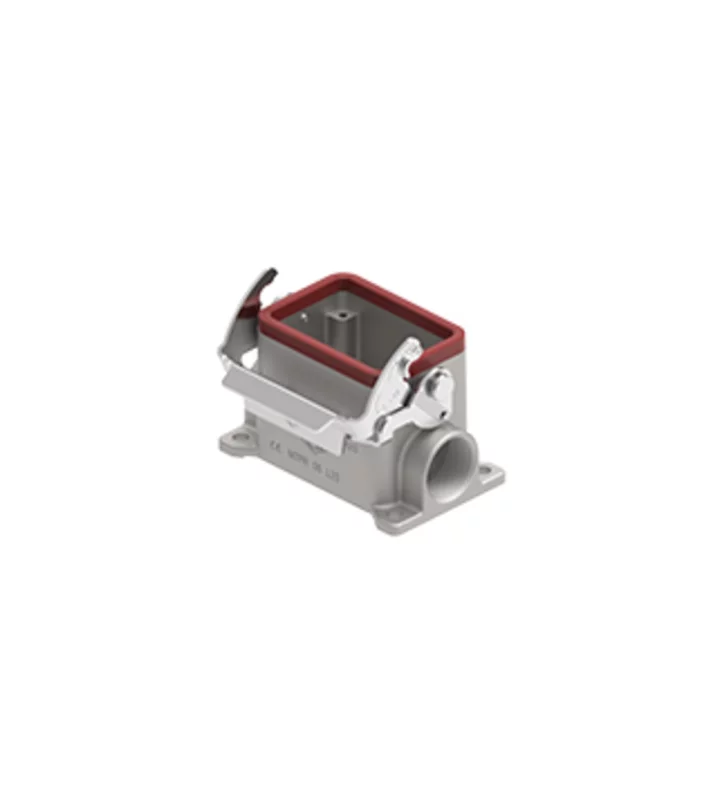

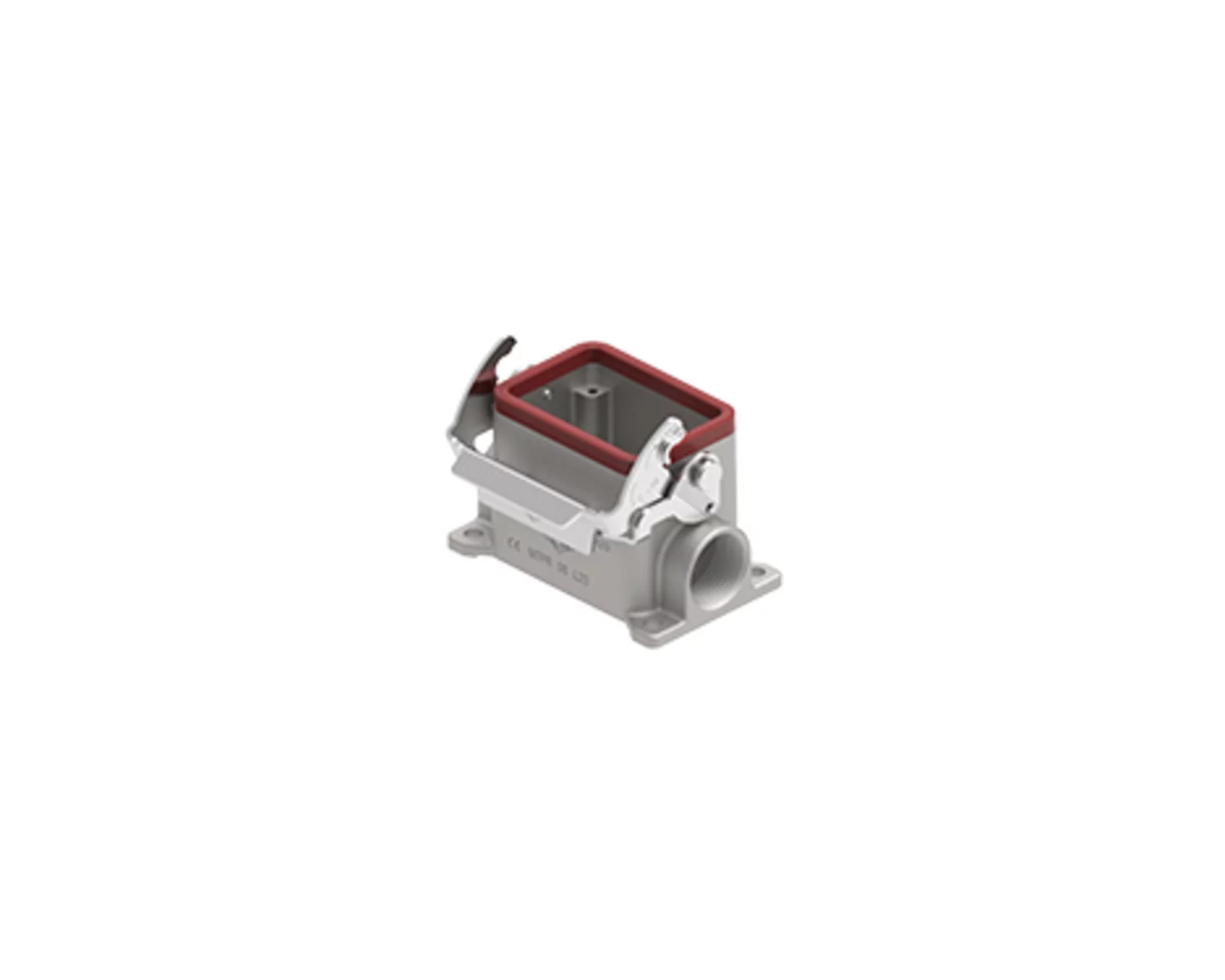

surface mounting housing, size 44.27, 180° alu, 1 lever, 1xM20 side

MVPR 06 L20

Add the desired standard inserts to fully configure your connector.

Enclosure type	Surface mounting housing
Size	44.27
Enclosure series	180°C
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP65
Ambient lower temperature	-40 °C
Ambient upper temperature	180 °C
Operation lower temperature	-40 °C
Operation upper temperature	180 °C
Cable entry type	side cable entry
Cable entry size	M20
Position cable feed	Side entry
Height	53 mm
Width	40 mm
Length	70 mm

Material housing	Die cast aluminium alloy
Coating housing	With special thermosetting powder coating with high resistance to high temperatures
Inflammability class of insulation material acc. with UL94	V2
