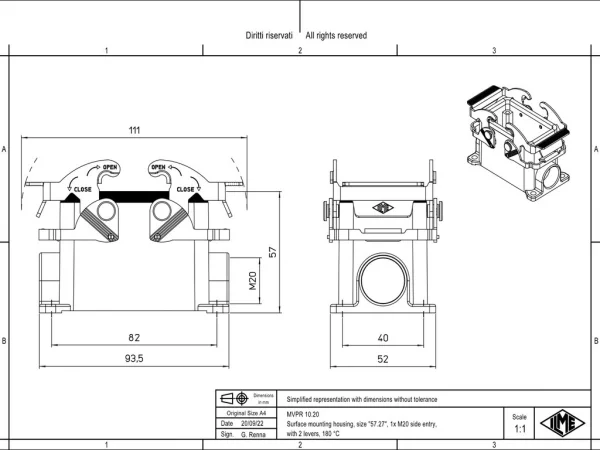

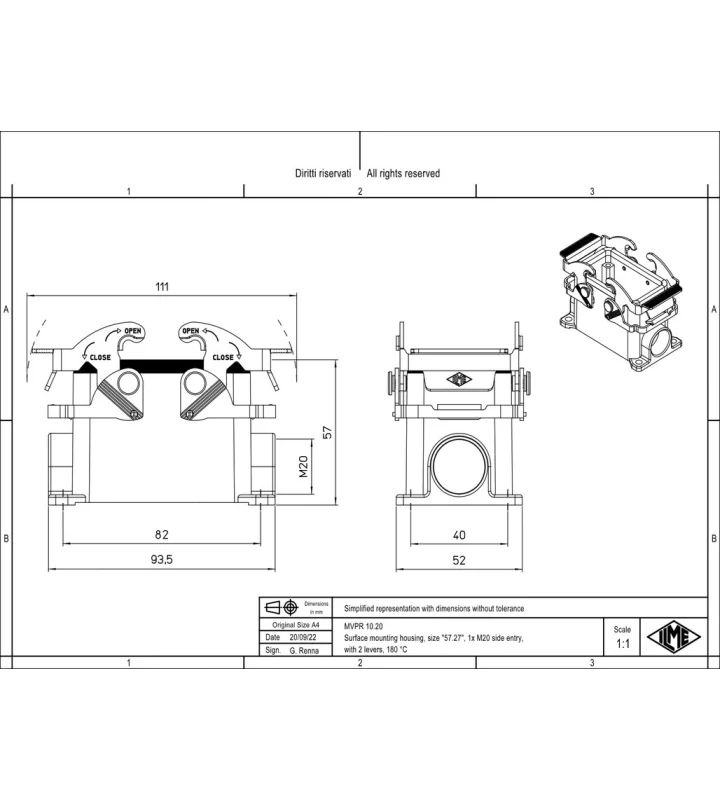

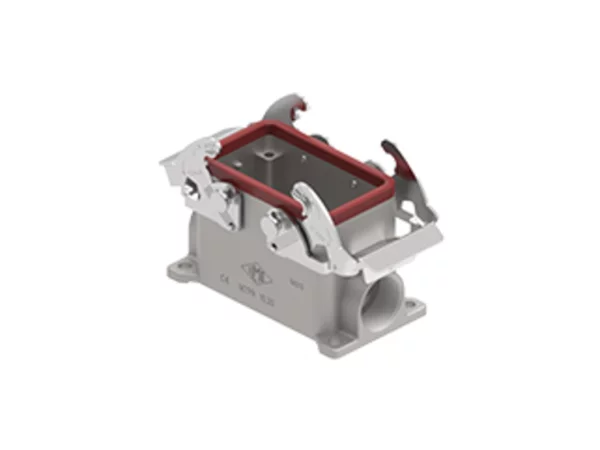

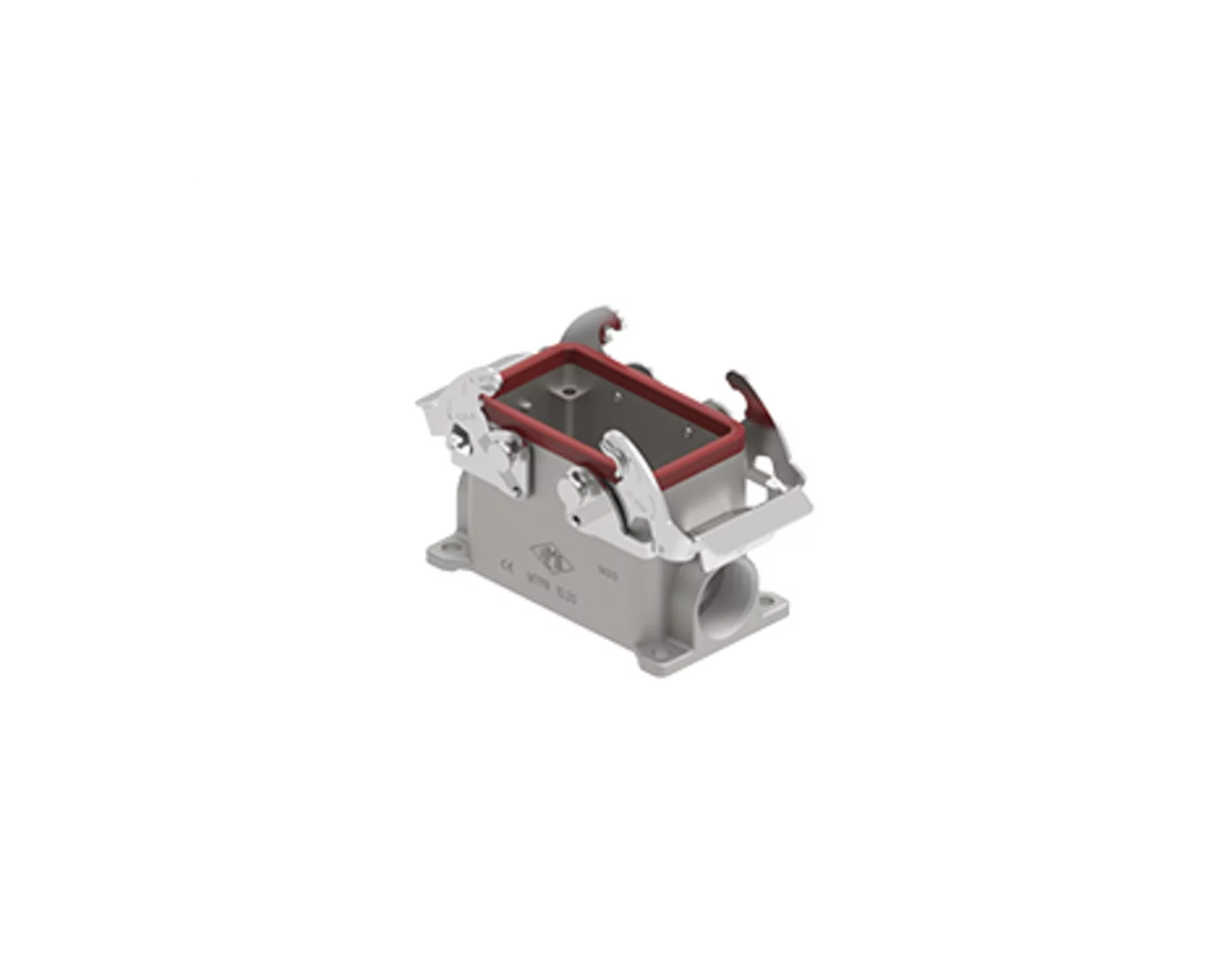

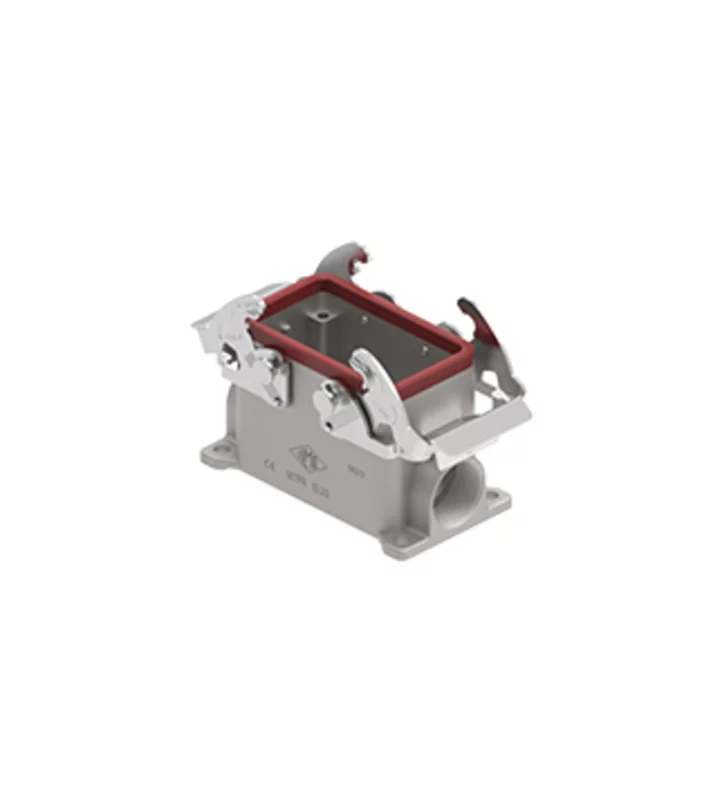

surface mounting housing, size 57.27, 180 °C alu, 2 levers, 1xM20 side

MVPR 10.20

Add the desired standard inserts to fully configure your connector.

Enclosure type	Surface mounting housing
Size	57.27
Enclosure series	180°C
Closing type	With 2 levers
Locking mechanism	Double locking levers
Protection degree	IP65
Ambient lower temperature	-40 °C
Ambient upper temperature	180 °C
Operation lower temperature	-40 °C
Operation upper temperature	180 °C
Cable entry type	side cable entry
Cable entry size	M20
Position cable feed	Side entry
Height	57 mm
Width	52 mm
Length	93.5 mm

Material housing	Die cast aluminium alloy
