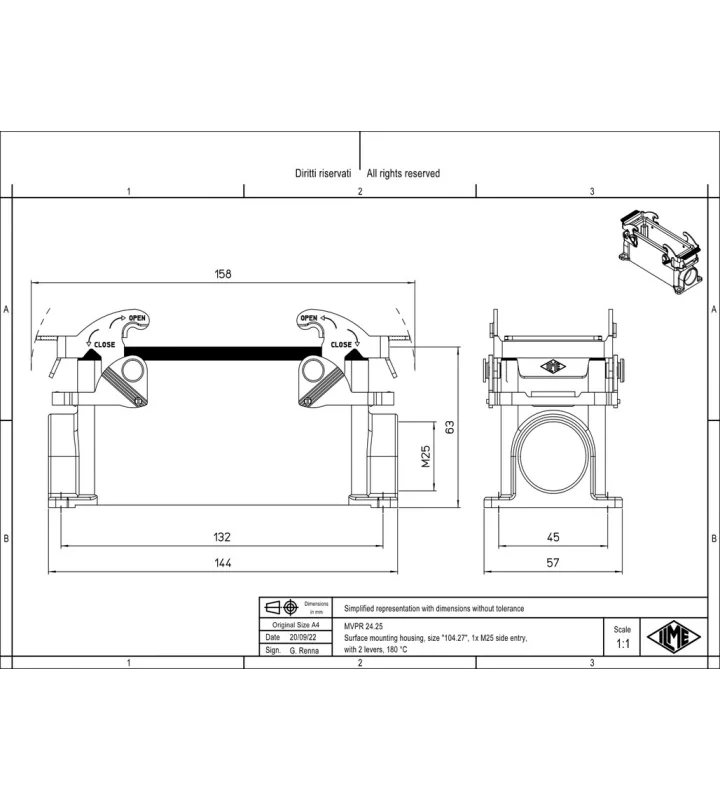

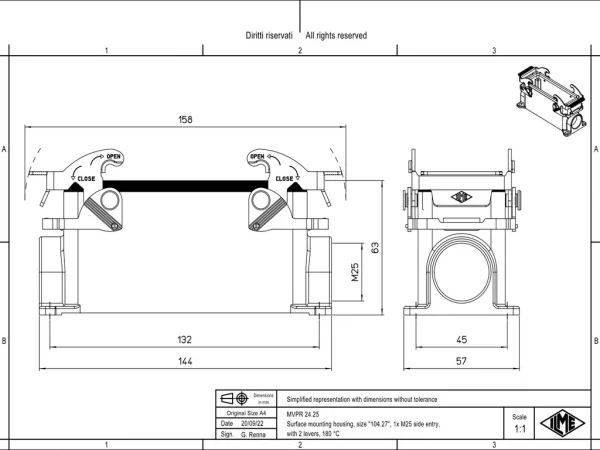

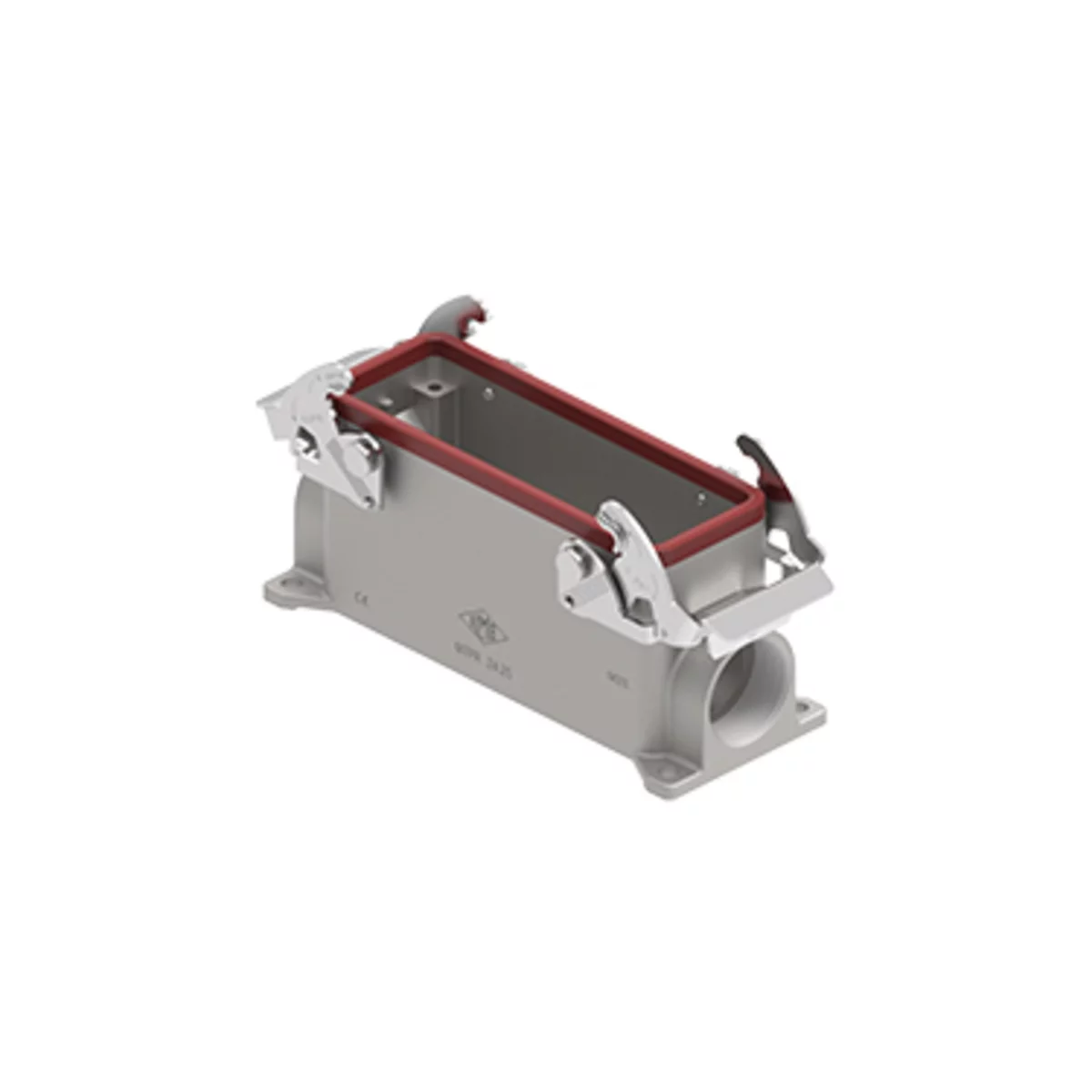

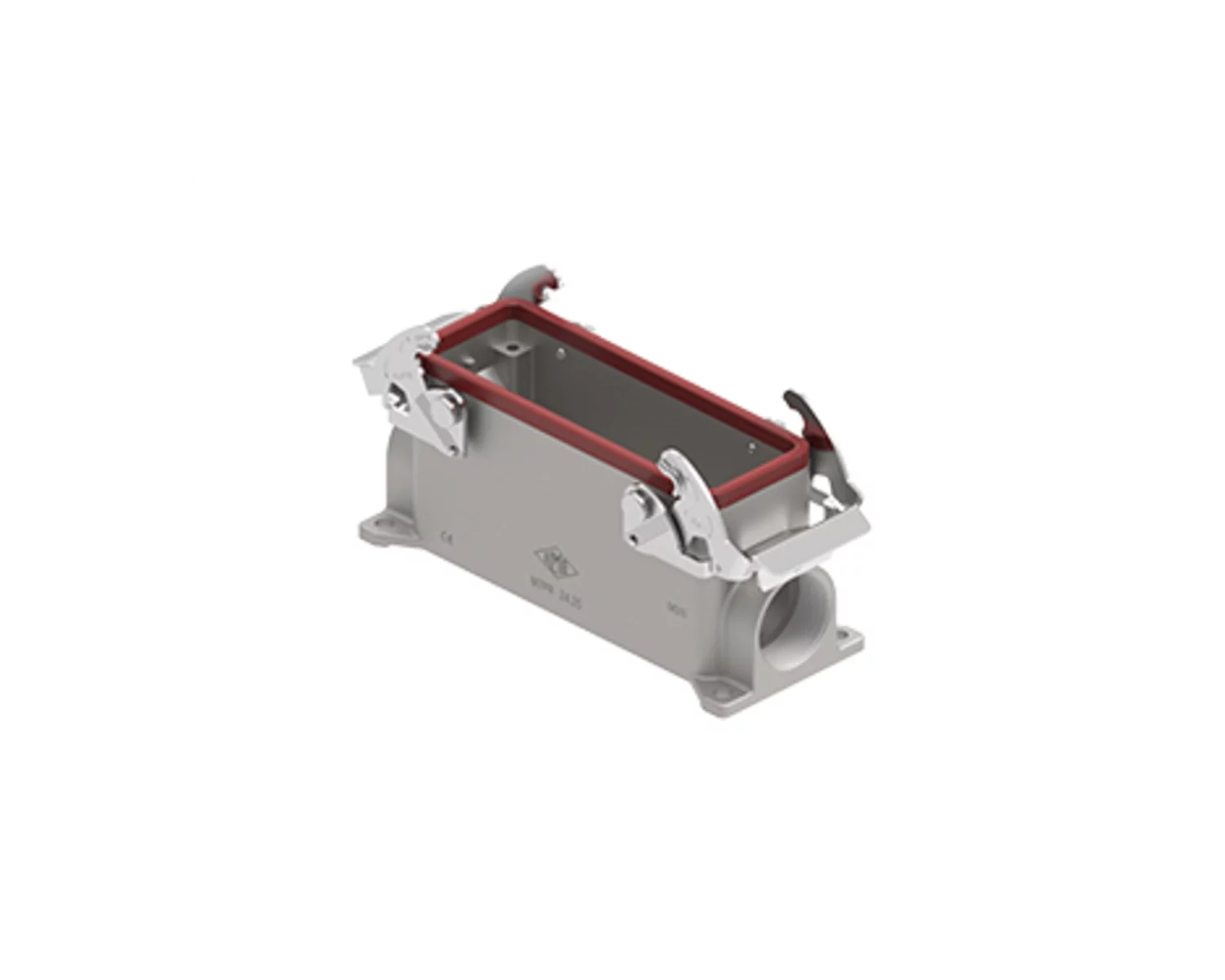

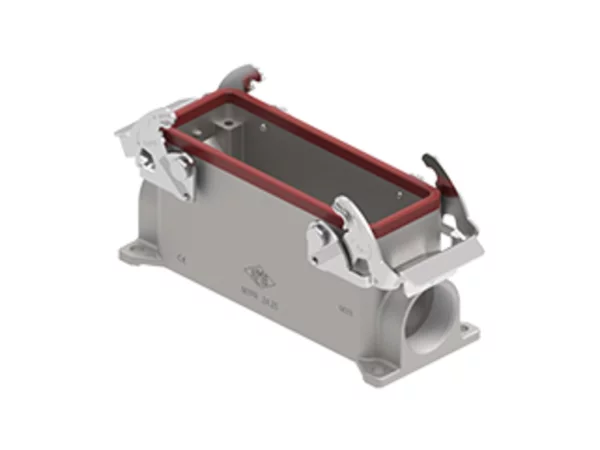

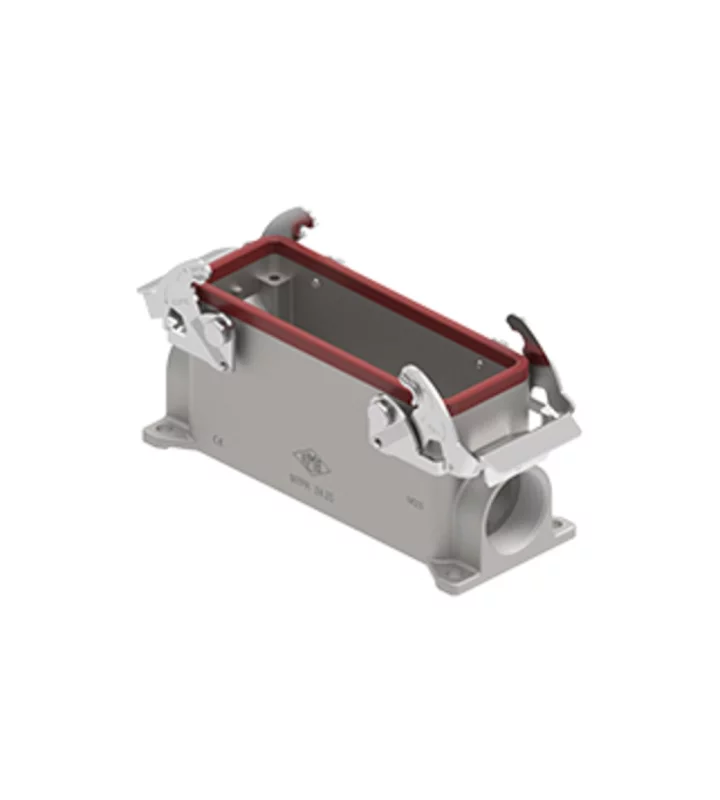

surface mounting housing, size 104.27, 180 °C alu, 2 levers, 1xM25 side

MVPR 24.25

Add the desired standard inserts to fully configure your connector.

Enclosure type	Surface mounting housing
Size	104.27
Enclosure series	180°C
Closing type	With 2 levers
Locking mechanism	Double locking levers
Protection degree	IP65
Ambient lower temperature	-40 °C
Ambient upper temperature	180 °C
Operation lower temperature	-40 °C
Operation upper temperature	180 °C
Cable entry type	side cable entry
Cable entry size	M25
Position cable feed	Side entry
Height	63 mm
Width	57 mm
Length	144 mm

Material housing	Die cast aluminium alloy
