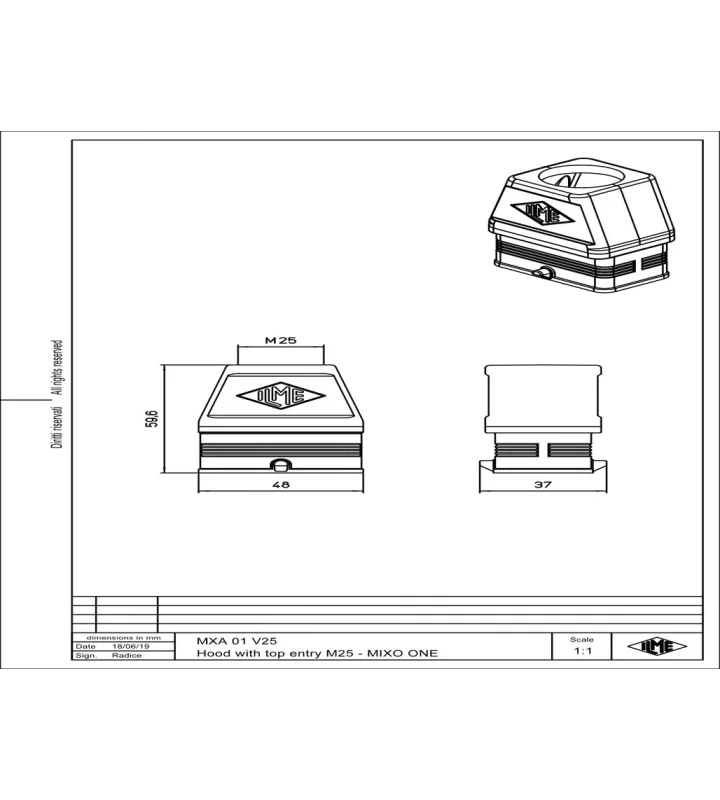

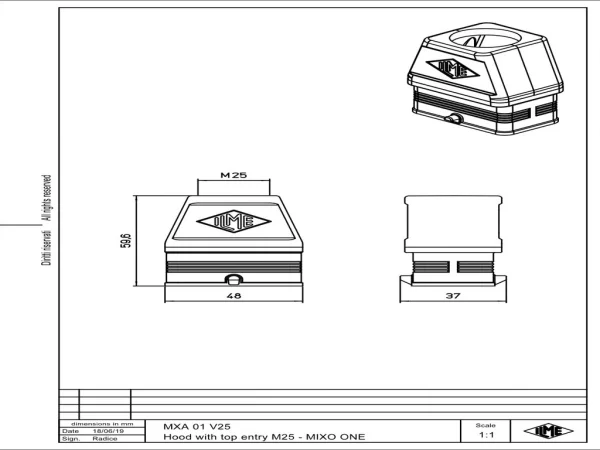

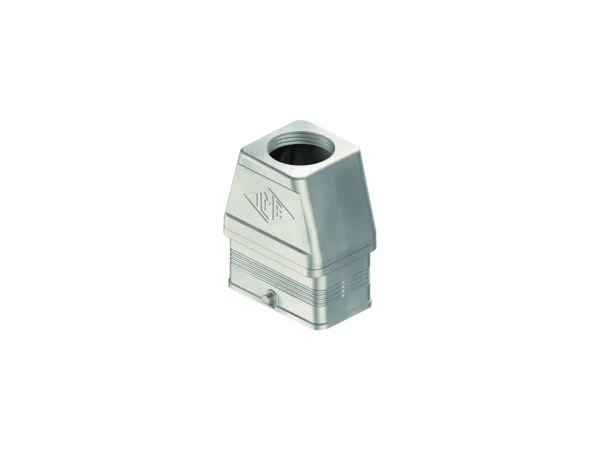

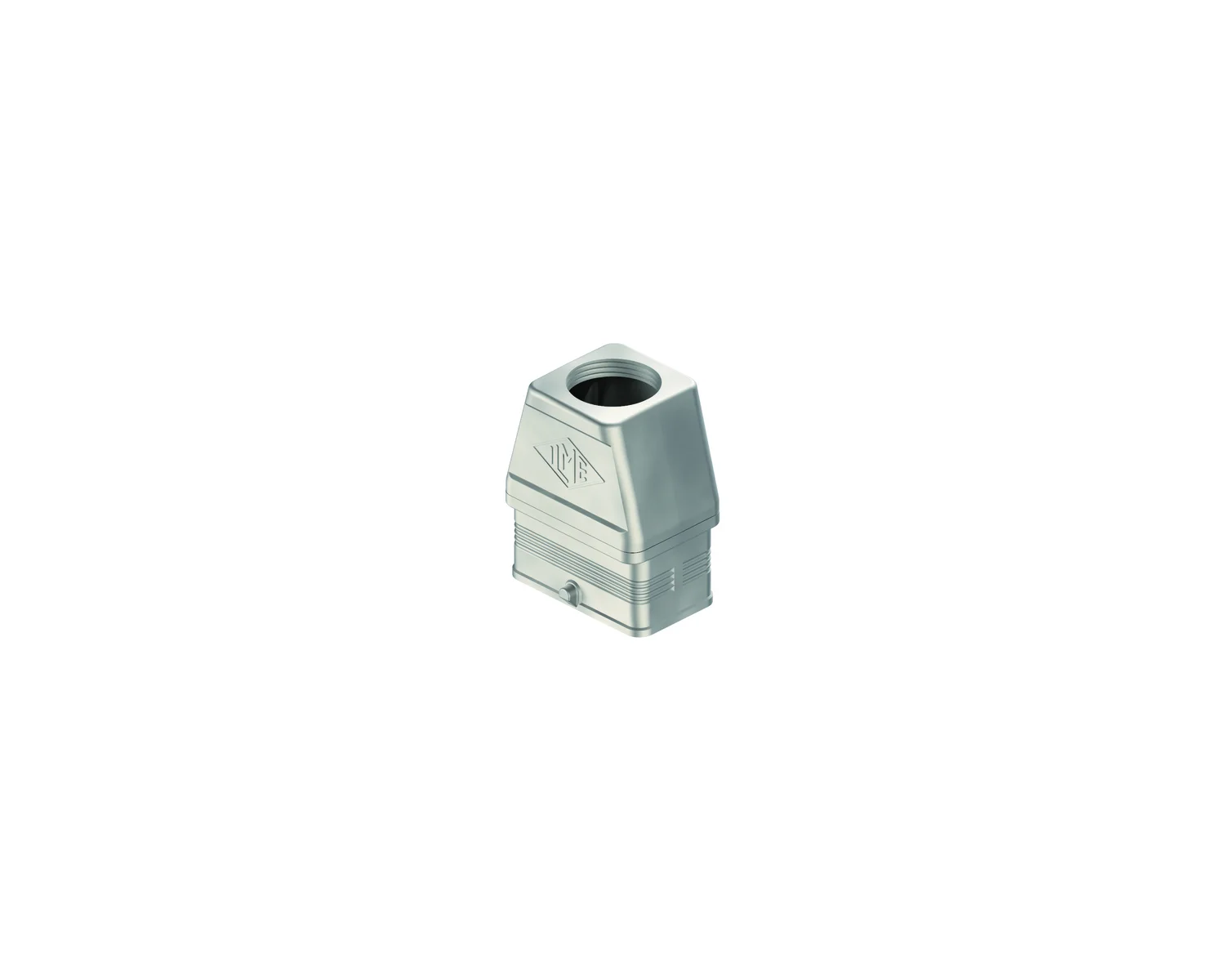

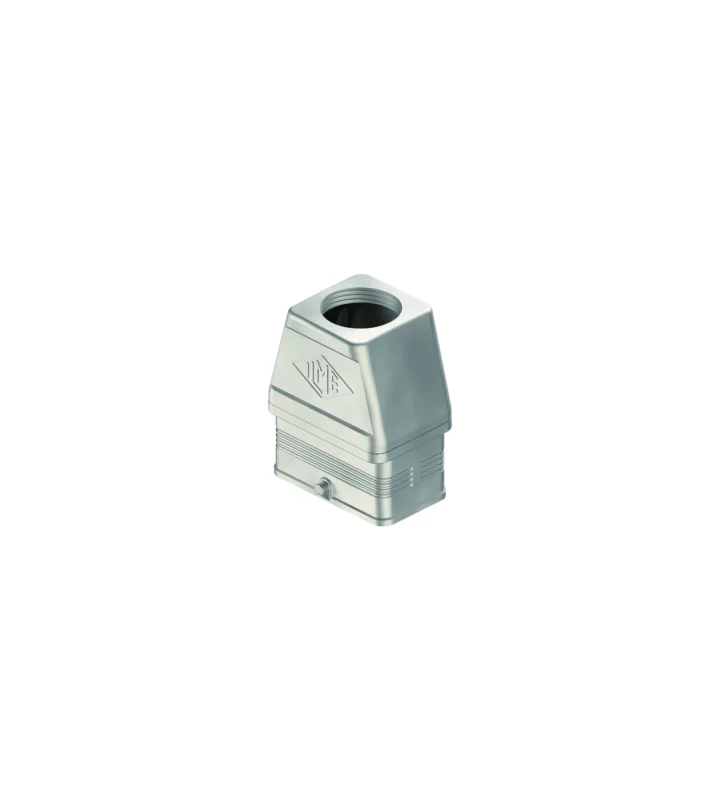

hood, MIXO One, alu, 2 pegs, 1xM25 top, 2-parts, no adaptor

MXA 01 V25

Add the desired accessories and mixo modular inserts to fully configure your connector.

Number of slots	1
Frame type	Enclosure with build-in frame
Enclosure series	MIXO ONE
Enclosure type	Hood
Closing type	With 2 pegs
Cable entry type	top cable entry
Cable entry size	M25
Protection degree	IP65
Locking mechanism	Single locking lever
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Height	59.6 mm
Length	48 mm
Width	37 mm
Position cable feed	Top entry

Coating housing	Nickel plating
Inflammability class of insulation material acc. with UL94	V2
Material housing	Die cast aluminium alloy
