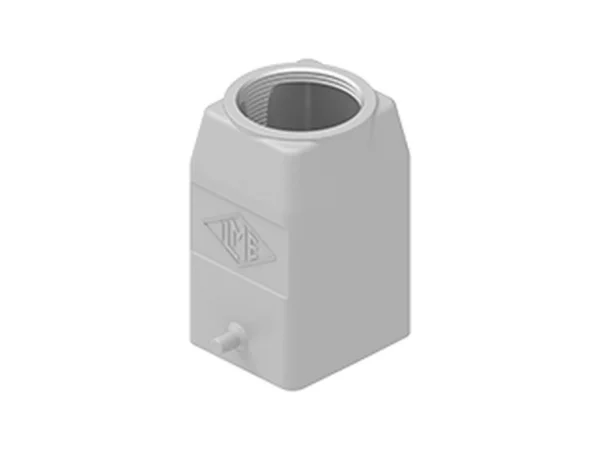

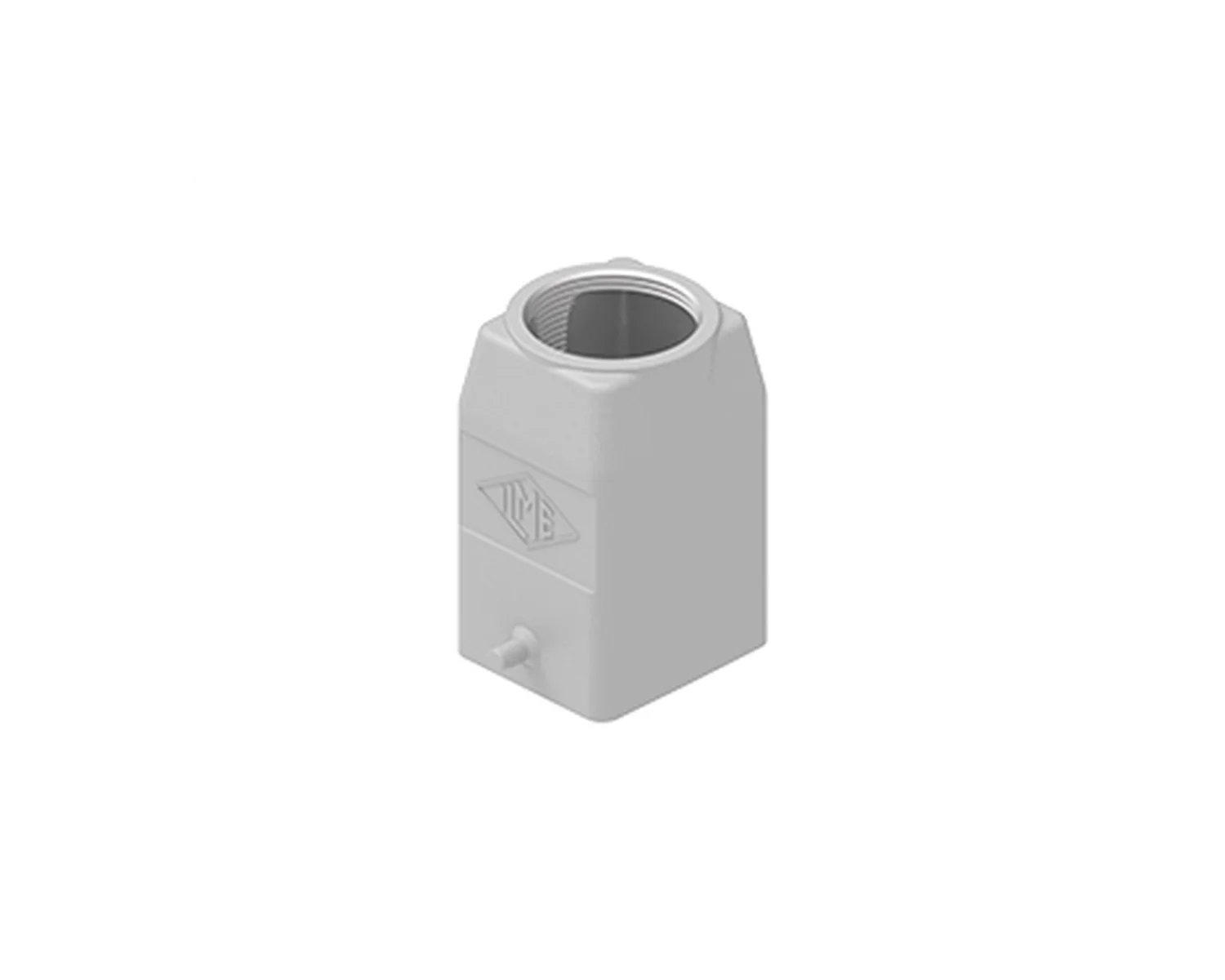

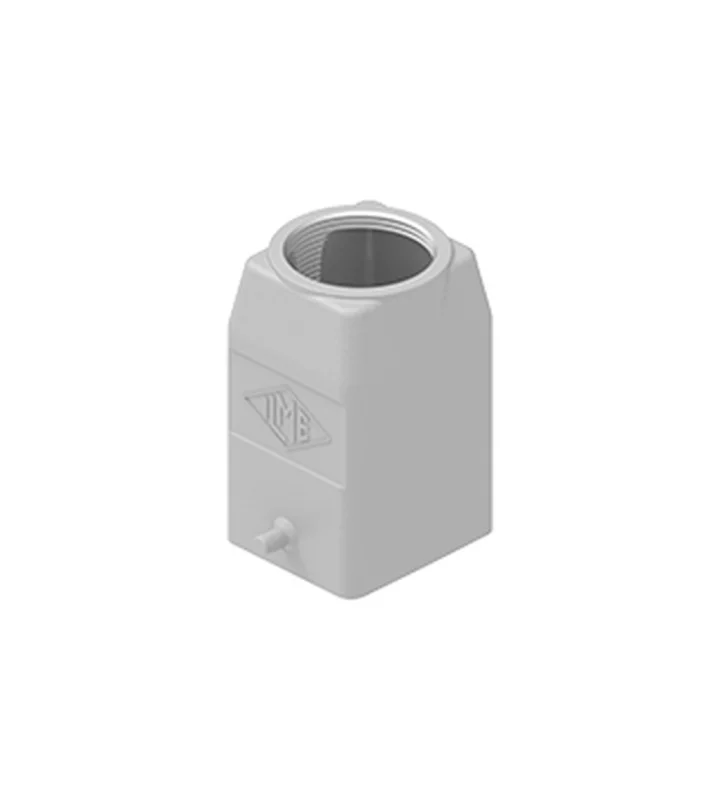

hood, 2 modules, MIXO TWO zinc, 2 pegs, 1xM32 top

MXA 02 V32

Add the desired accessories and mixo modular inserts to fully configure your connector.

Number of slots	2
Frame type	Enclosure with build-in frame
Enclosure series	MIXO TWO
Enclosure type	Hood
Closing type	With 2 pegs
Cable entry type	top cable entry
Cable entry size	M32
Protection degree	IP65
Locking mechanism	Single locking lever
Operation lower temperature	-40 °C
Operation upper temperature	125 °C

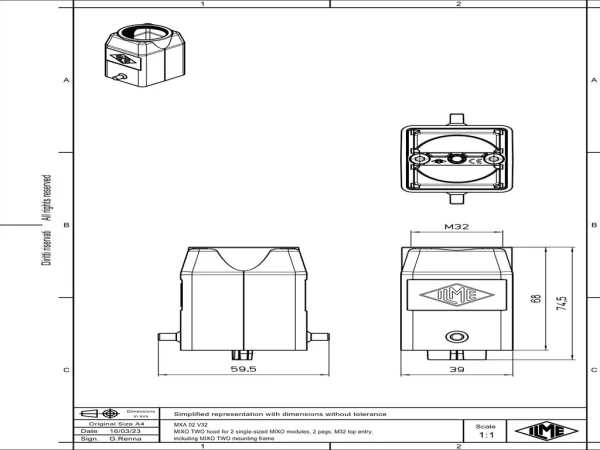

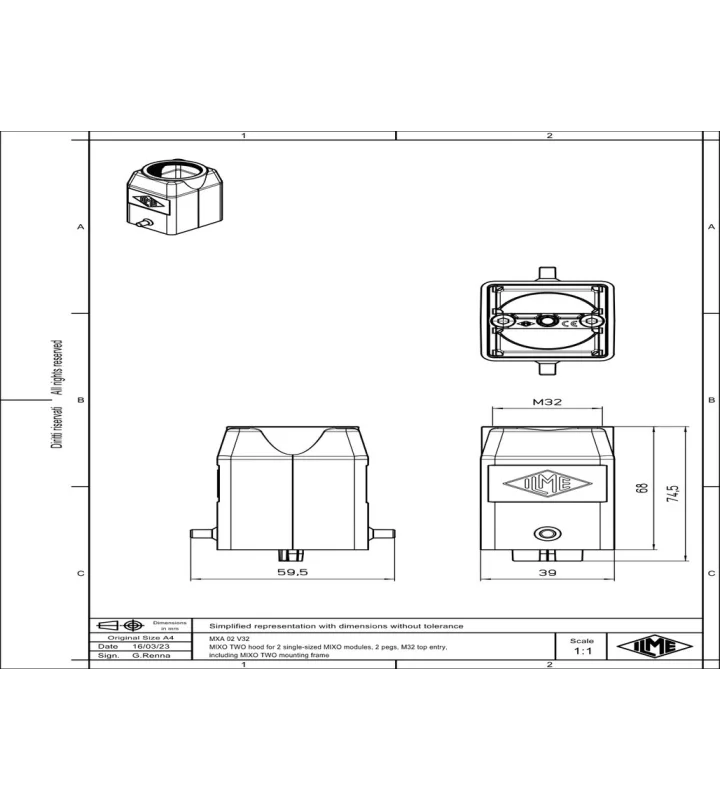

Height	68 mm
Length	59.5 mm
Width	39 mm
Position cable feed	Top entry

Material housing	Zinc die-cast
