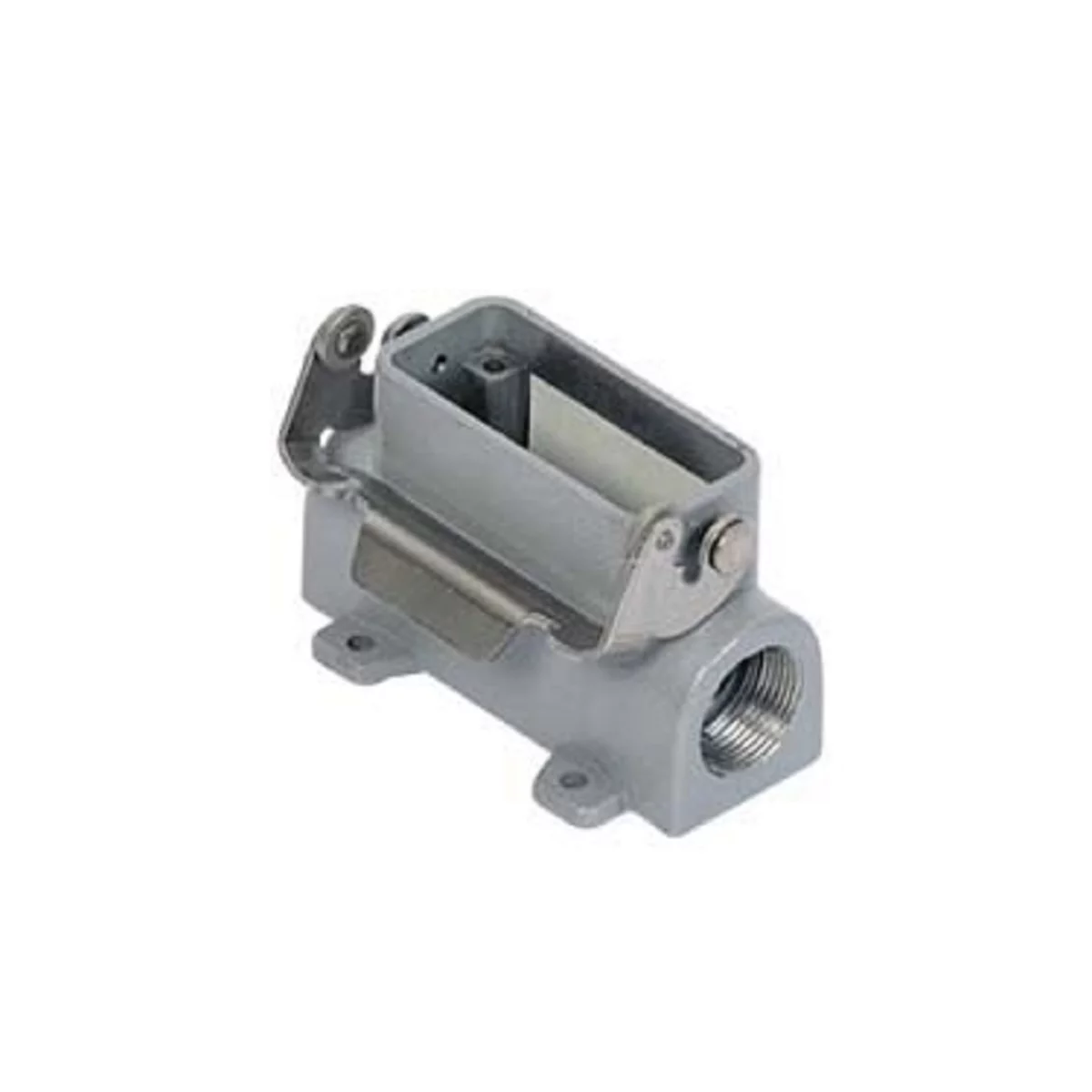

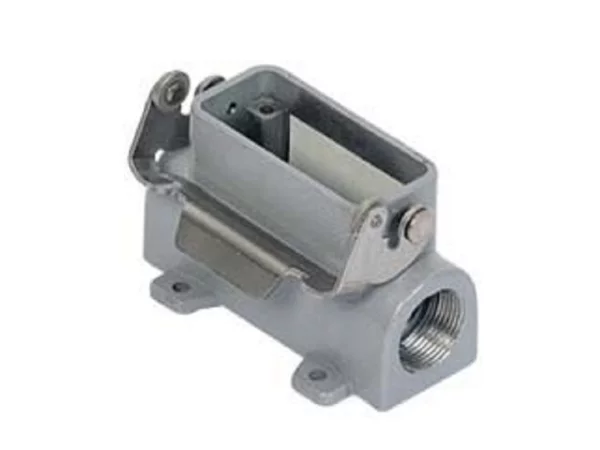

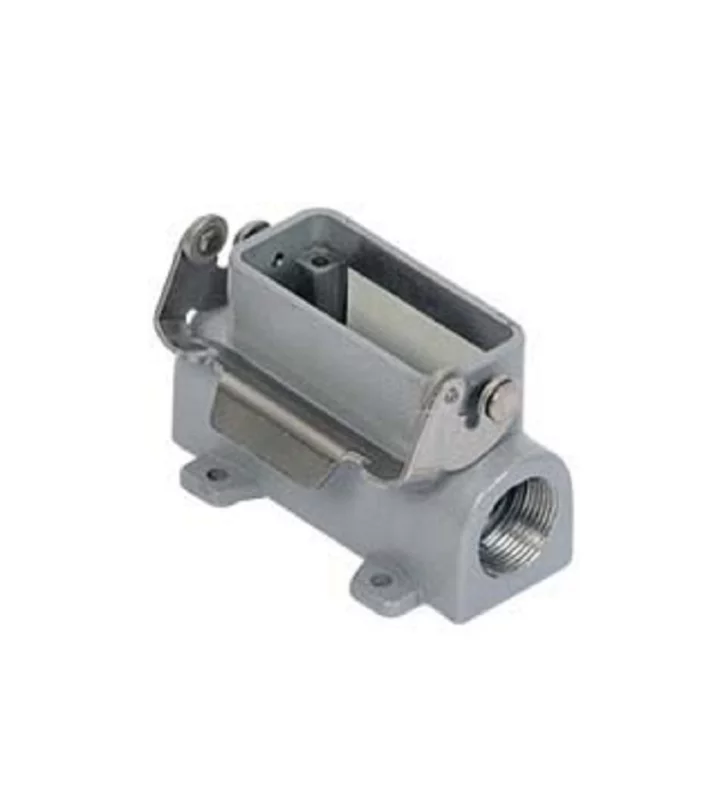

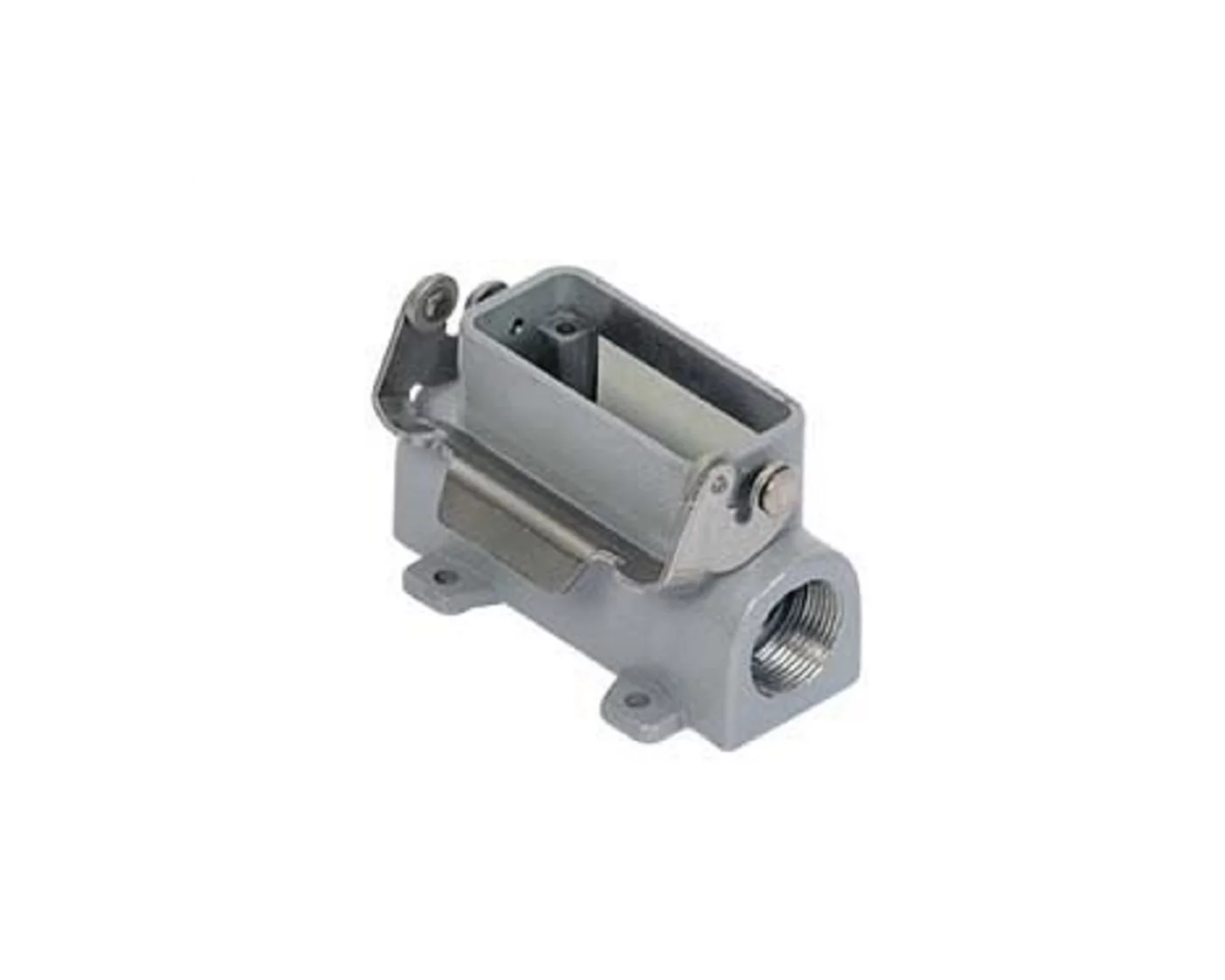

surface mounting housing, size 49.16, CZ7 alu, 1 rigid lever, 1xM25 side

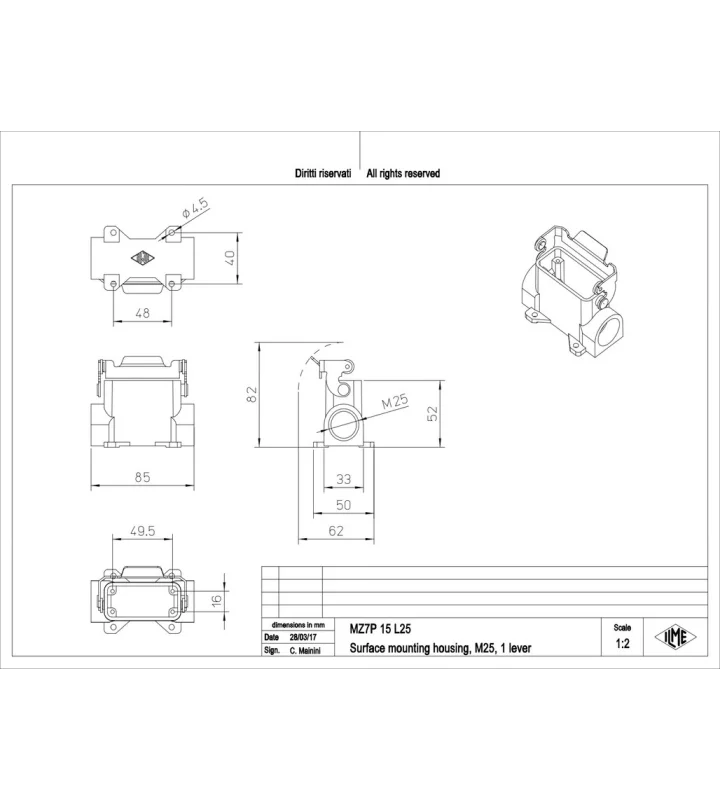

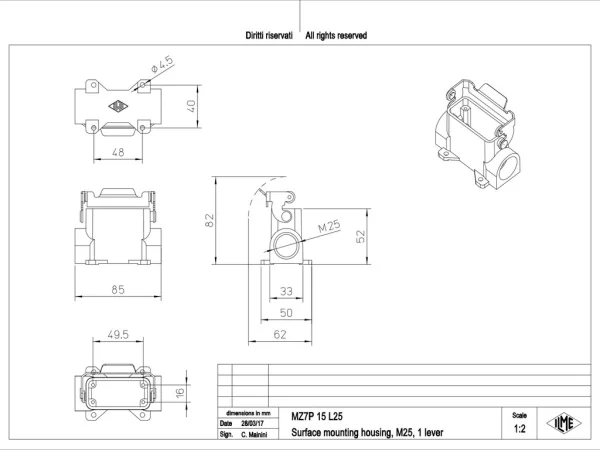

MZ7P 15 L25

Add the desired standard inserts to fully configure your connector.

Enclosure type	Surface mounting housing
Size	49.16
Enclosure series	CZ7
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	side cable entry
Cable entry size	M25
Position cable feed	Side entry
Height	52 mm
Width	40 mm
Length	48 mm

Material housing	Die cast aluminium alloy
Coating housing	With epoxy-polyester thermosetting powder coating
Inflammability class of insulation material acc. with UL94	V2
