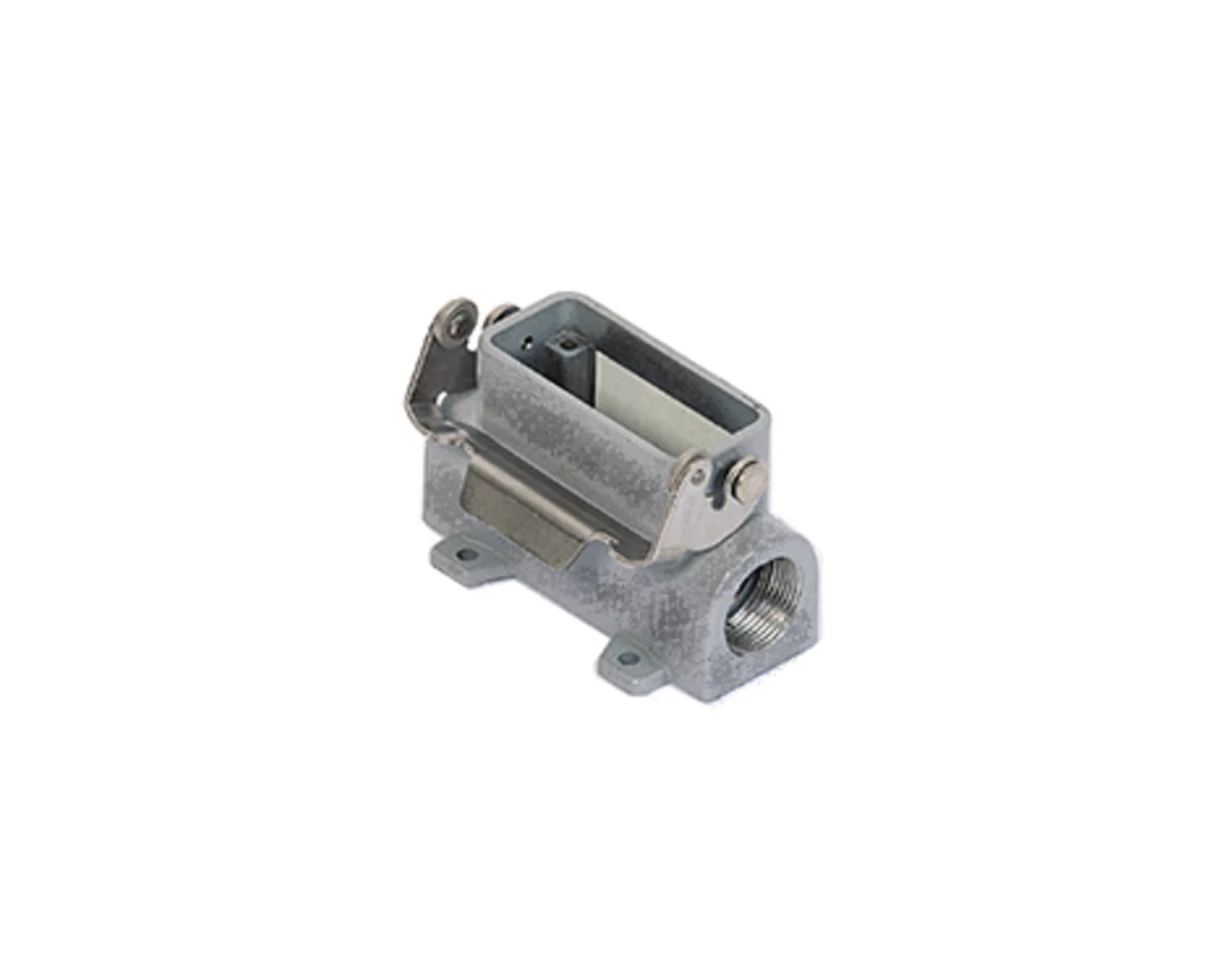

surface mounting housing, size 49.16, EMC alu, 1 rigid lever, 2xM25 side

MZ7PS 15L225

Add the desired standard inserts to fully configure your connector.

Enclosure type	Surface mounting housing
Size	49.16
Enclosure series	EMC
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP66 / IP67
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	side cable entry
Cable entry size	M25 x 2
Position cable feed	Side entry
Height	52 mm
Width	40 mm
Length	48 mm

Material housing	Die cast aluminium alloy
Coating housing	Chromate conversion coating
