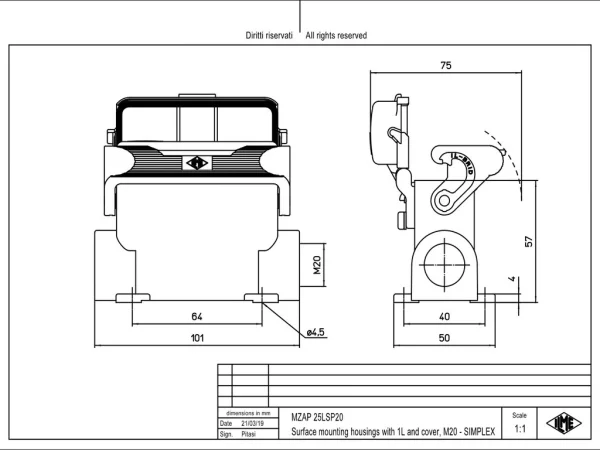

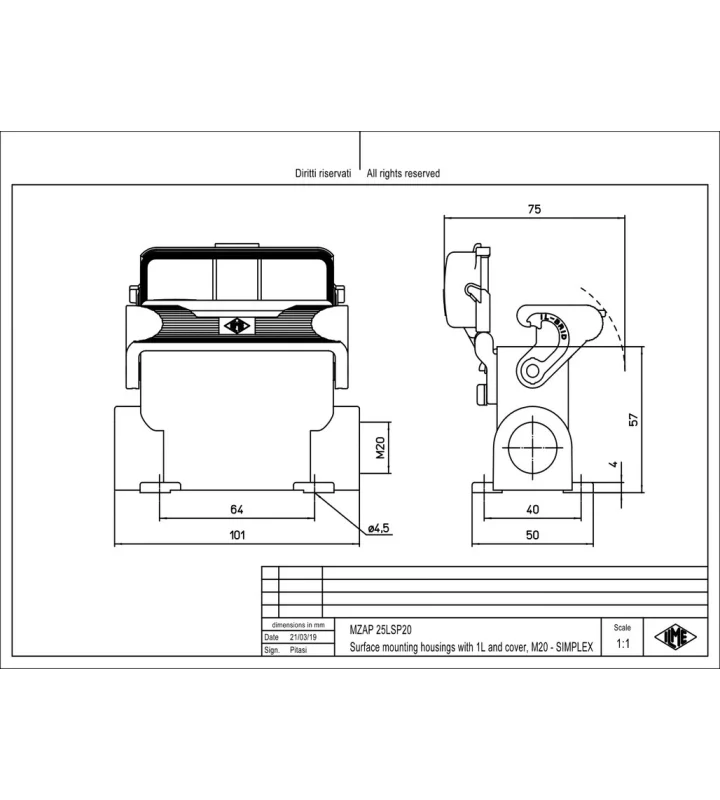

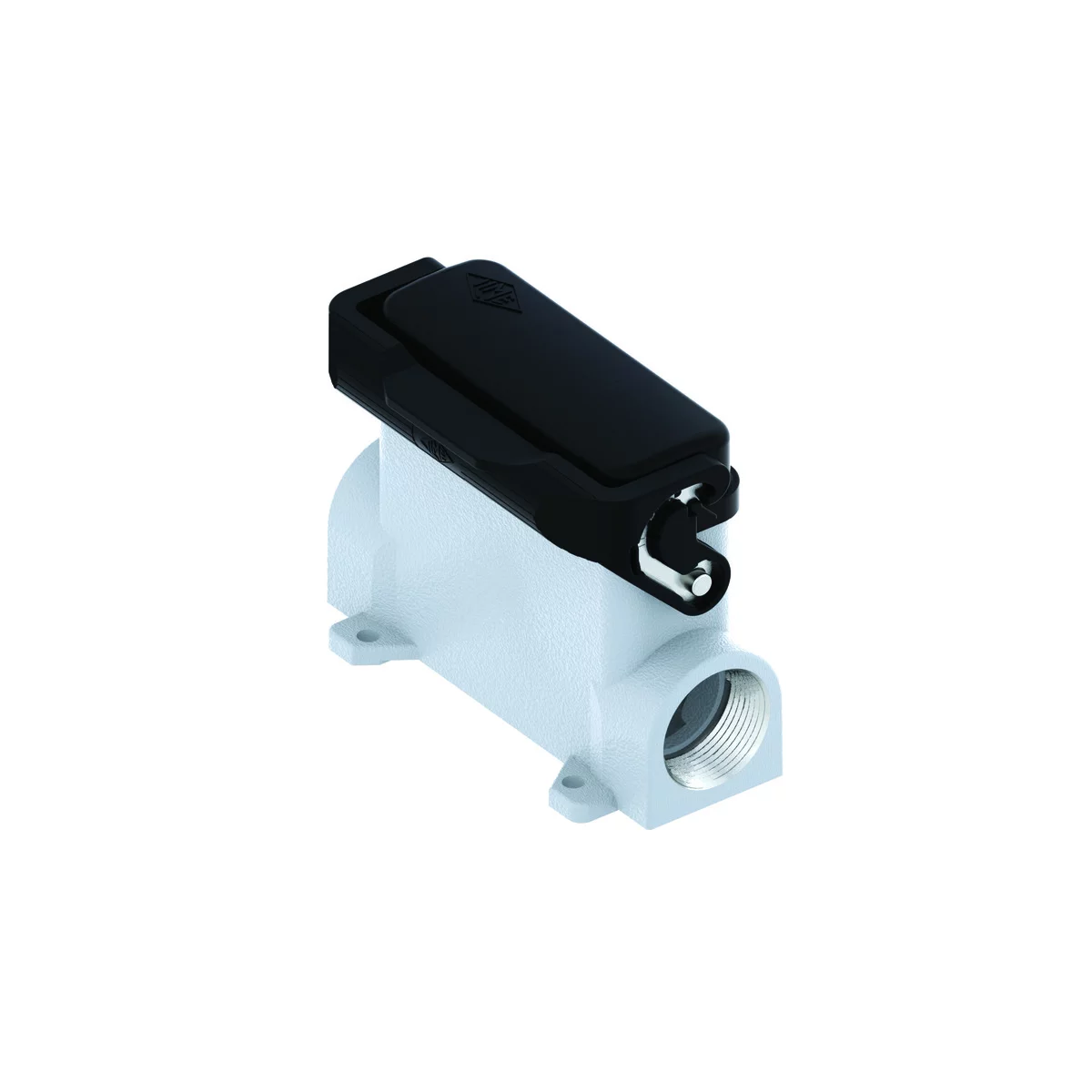

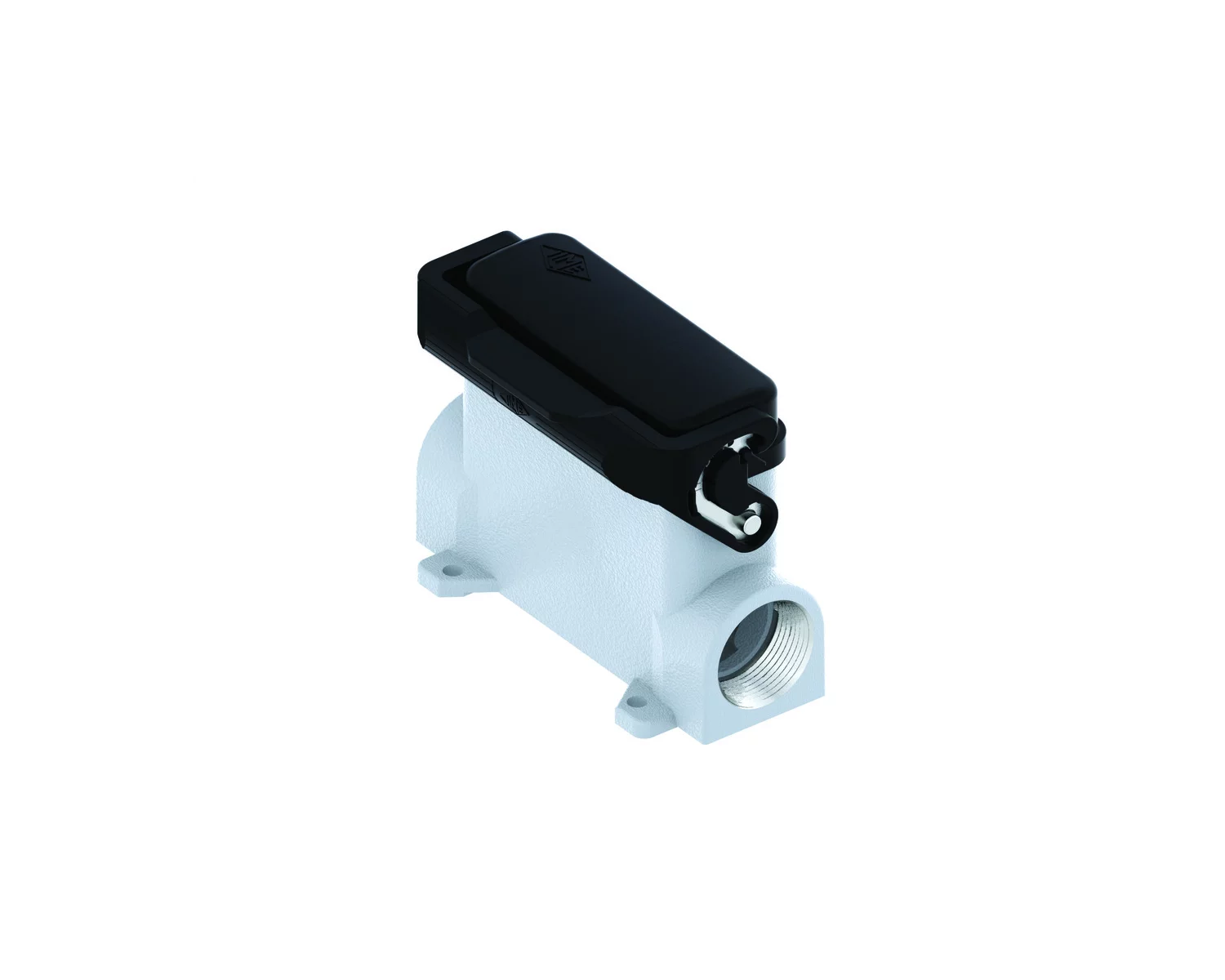

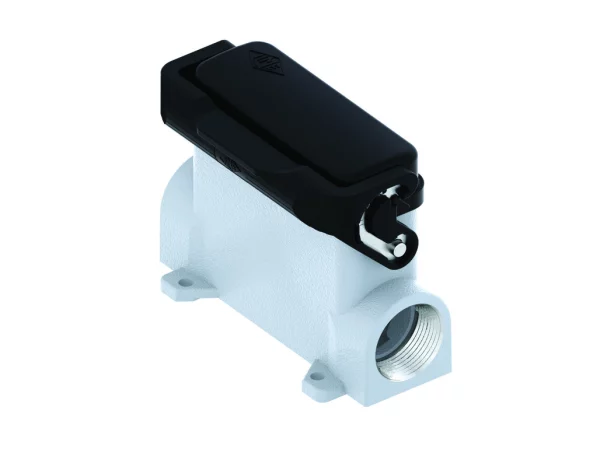

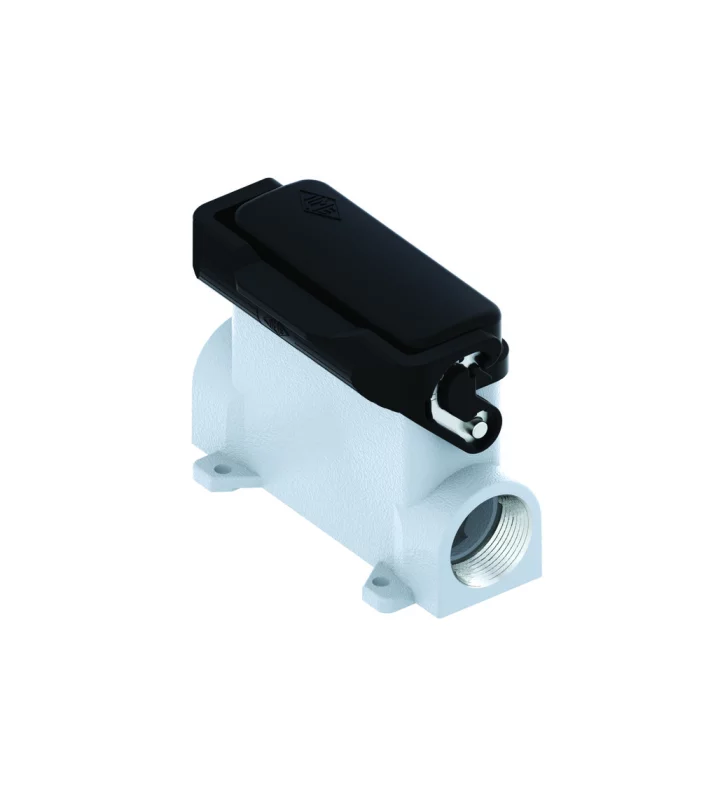

surface mounting housing, high, size 66.16, IL-BRID alu, 1 lever, 1xM20 side, spring cover

MZAP 25LSP20

Add the desired standard inserts to fully configure your connector.

Enclosure type	Surface mounting housing
Size	66.16
Enclosure series	IL-BRID
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP65
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	side cable entry
Cable entry size	M20
Position cable feed	Side entry
Height	57 mm
Width	40 mm
Length	64 mm

Material housing	Die cast aluminium alloy
Coating housing	With epoxy-polyester powder coating
Inflammability class of insulation material acc. with UL94	V2
