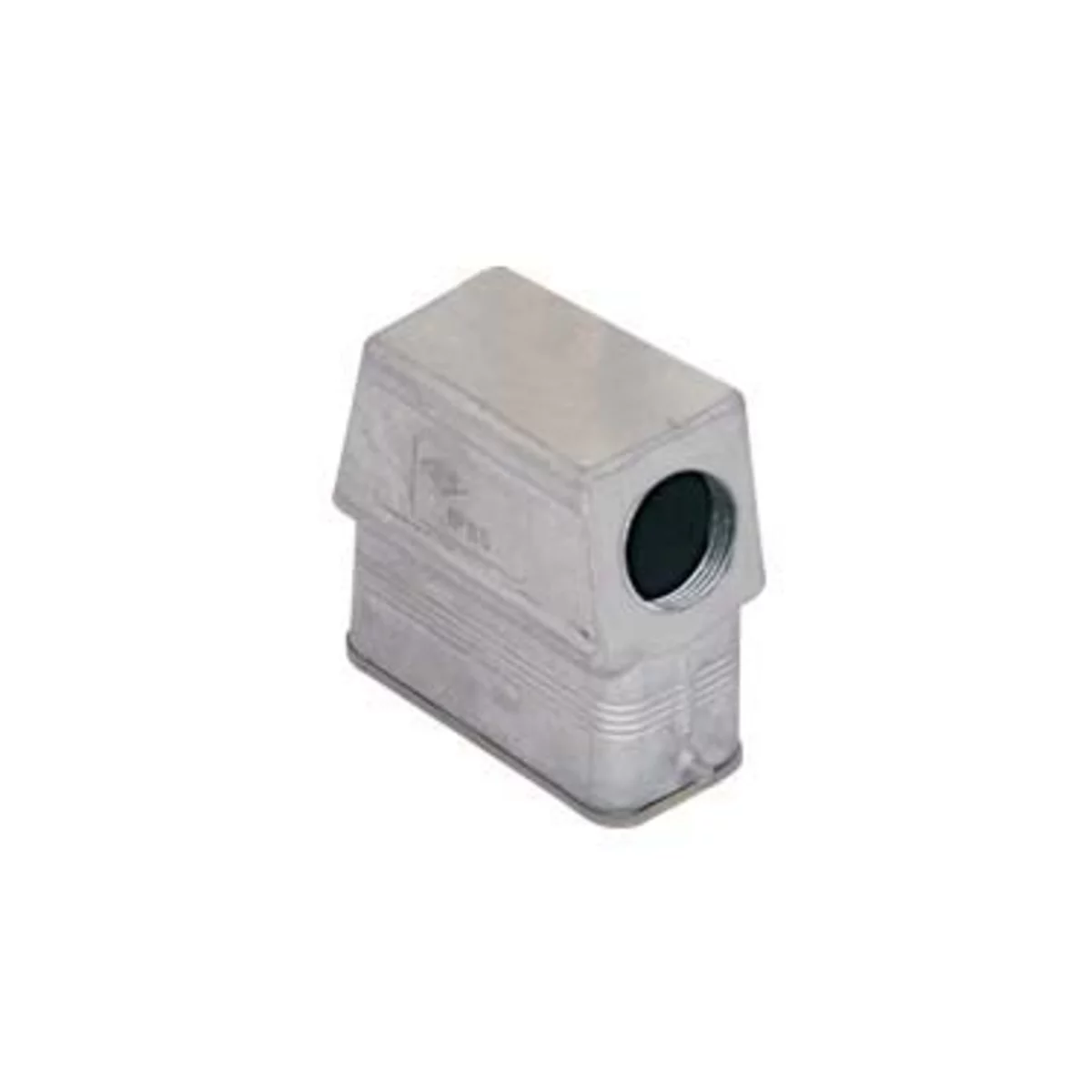

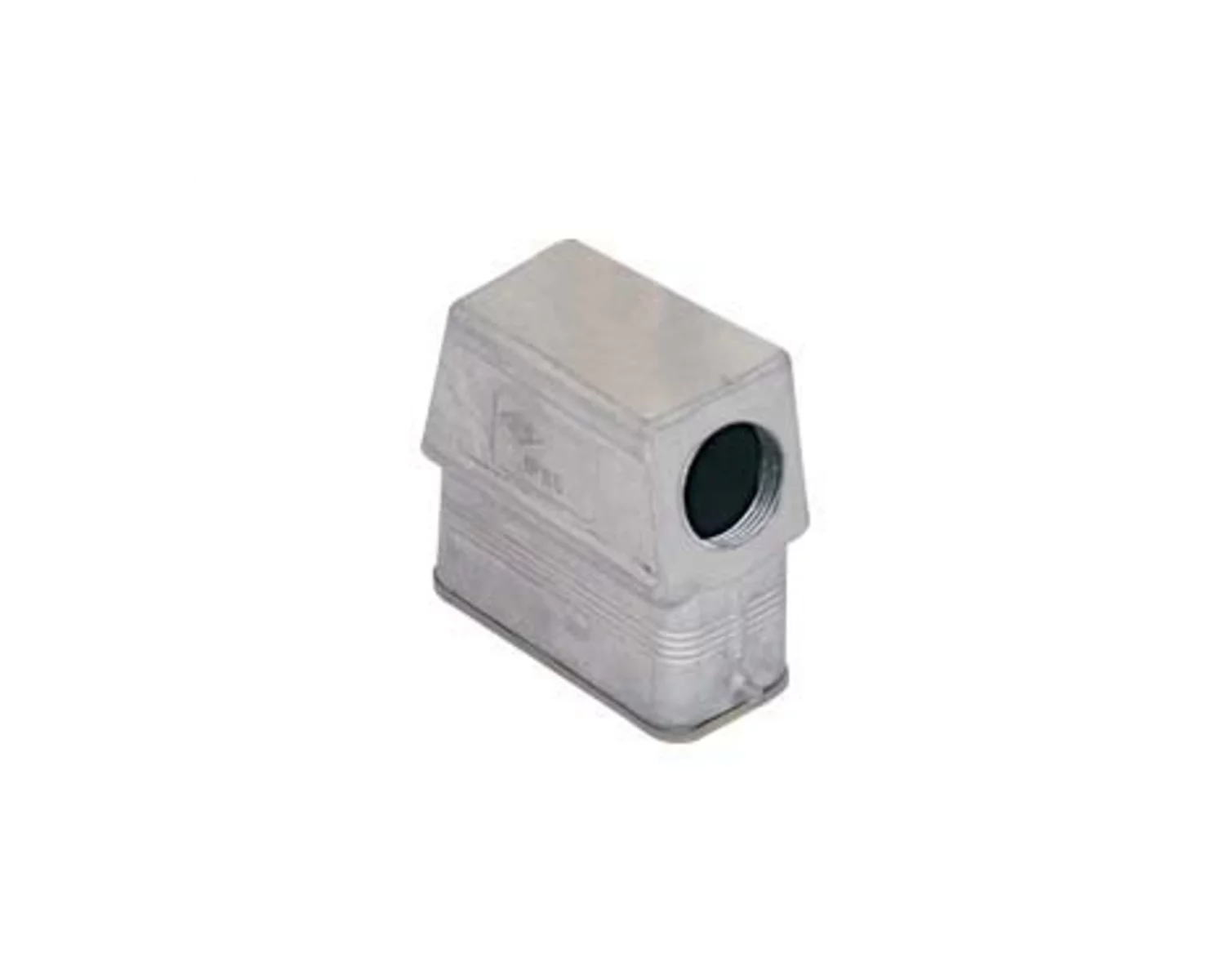

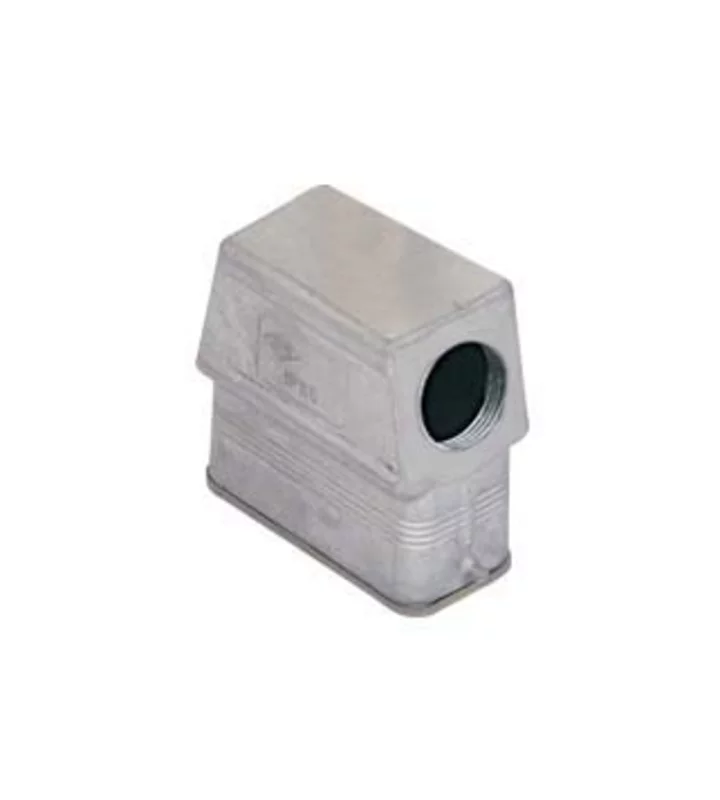

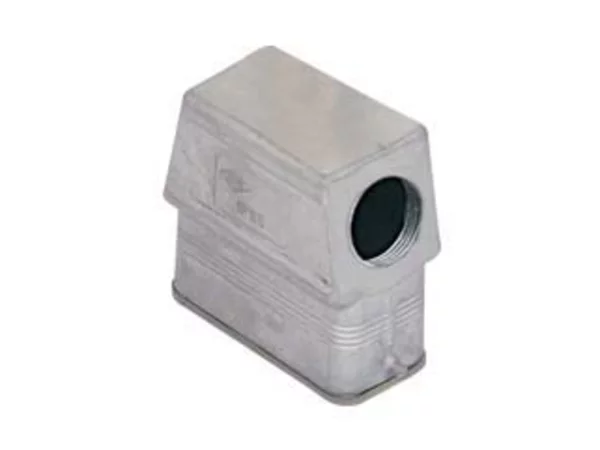

hood, high, size 49.16, EMC alu, 2 pegs, 1xM25 side, no adaptor
MZFOS 15 L25
Continue assembling your connector
Add the desired standard inserts to fully configure your connector.
Specifications
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 49.16 |
| Enclosure series | EMC |
| Closing type | With 2 pegs |
| Locking mechanism | Single locking lever |
| Protection degree | IP65 / IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | side cable entry |
| Cable entry size | M25 |
| Position cable feed | Side entry |
| Height | 64.5 mm |
| Width | 36 mm |
| Length | 63 mm |
| Remark | Enclosure without adaptor, threaded on the enclosure body, to be used with a complete cable gland |
Material
| Material housing | Aluminium |
|---|---|
| Coating housing | With powder coating |
| Extra information | Corrosion resistant,EMC Version,UV resistant,With interlocking device |
