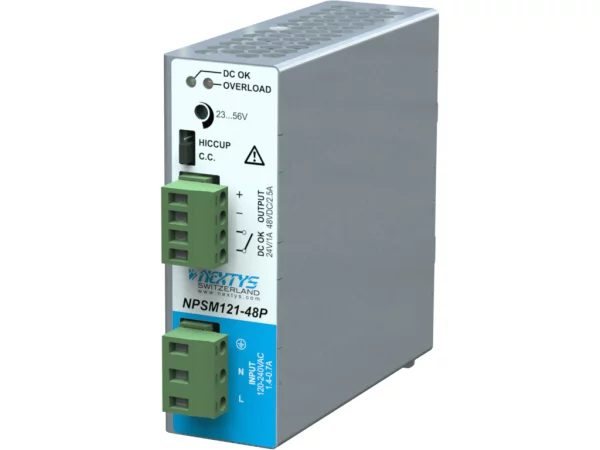

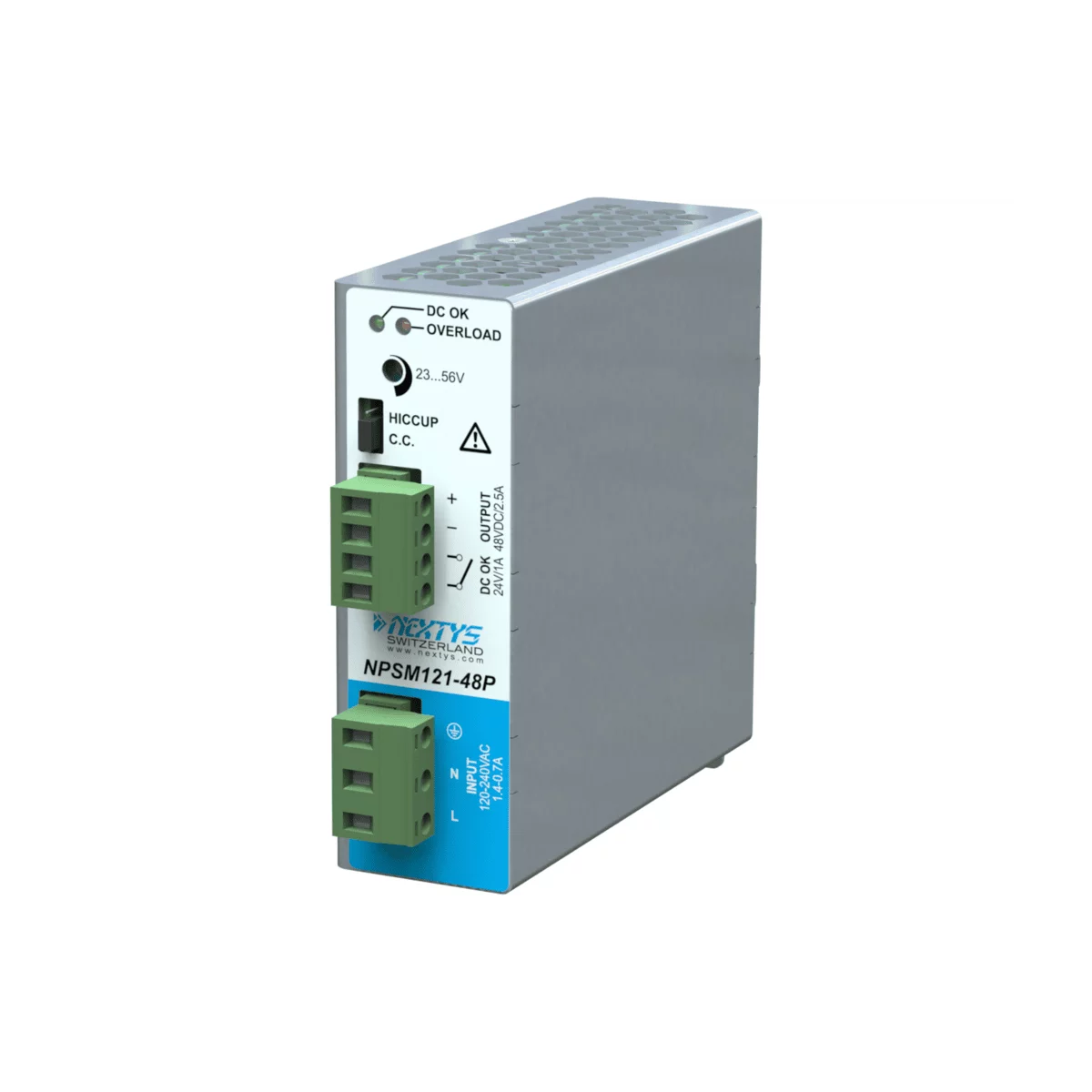

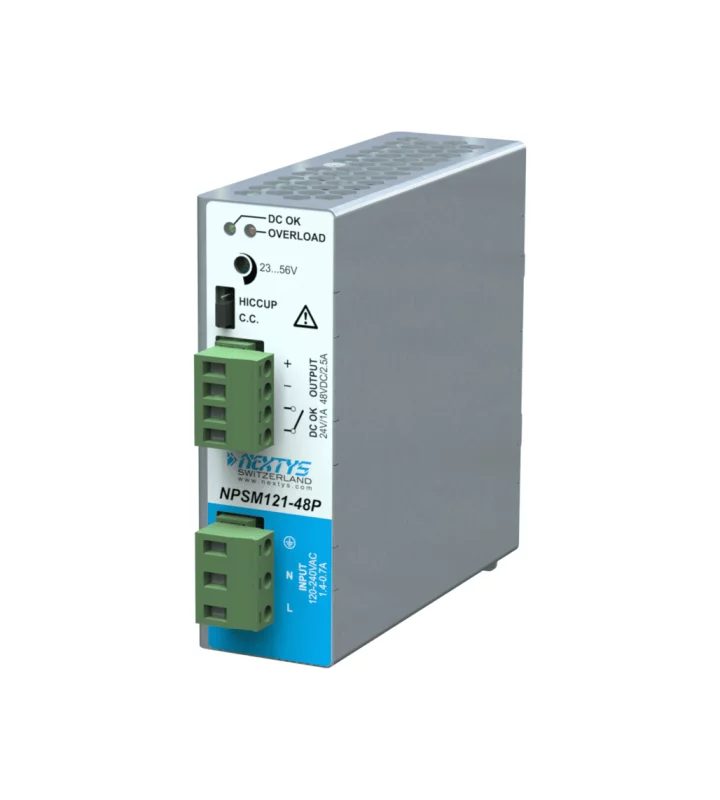

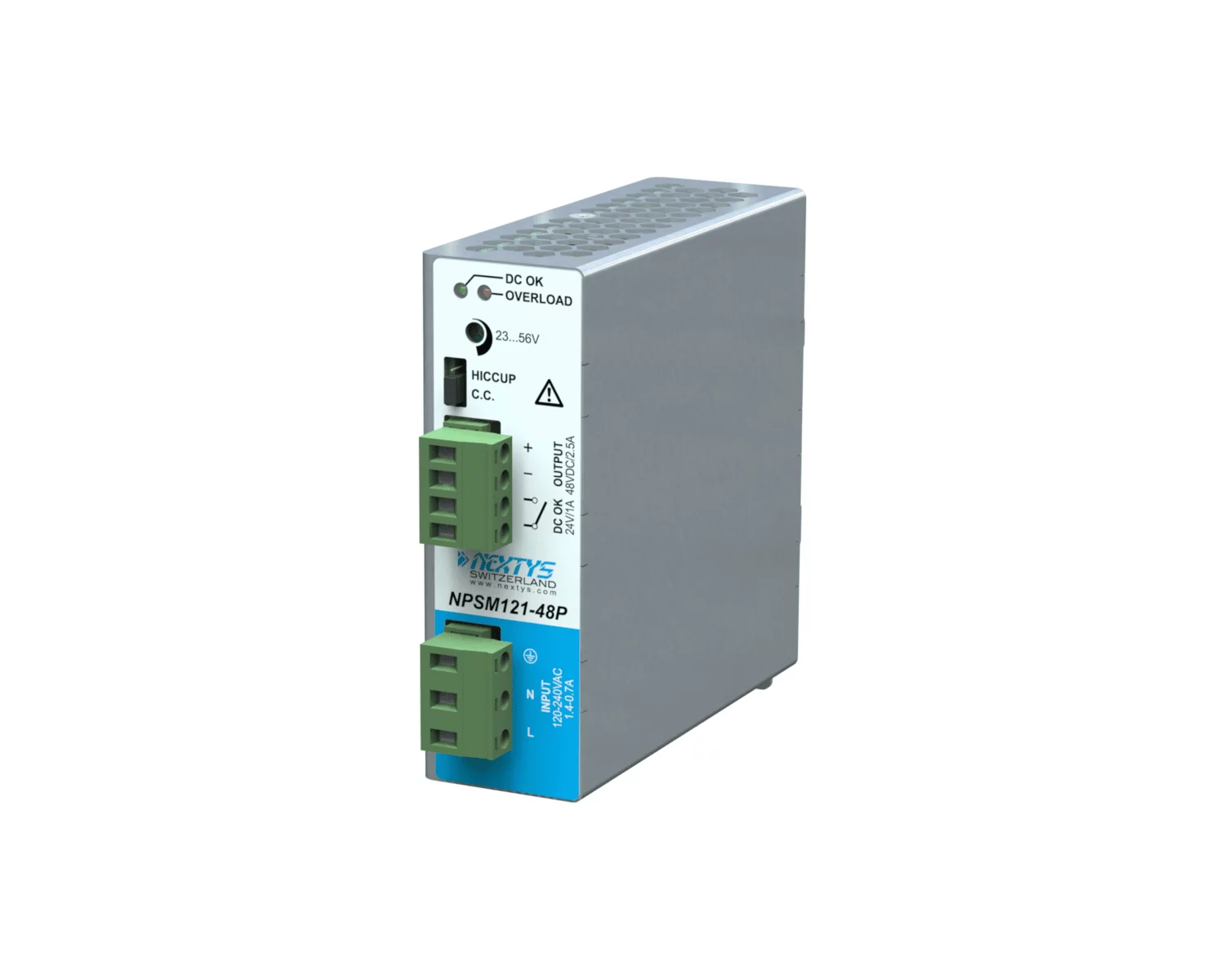

Premium Power Supply 1Ph, 120W Din-Rail AC/DC 48 Vdc 2,5 A
NPSM121-48P
Specifications
General Characteristics
| Power supply series | NPSM |
|---|---|
| Type power supplies | AC/DC |
| Dimensions (WxHxD) | 35,0 x 103,0 x 104,0 |
| Special characteristics | Parallelable |
| Applications | Industrial |
Electrical Parameters
| Adjustable Output Voltage | 23...56 Vdc |
|---|---|
| Output Power | 120 W |
| Output Current | 2.5 A |
| Phases | 1 |
| Input Voltage | 120...240 Vac |
| Input Voltage | 110...345 Vdc |
