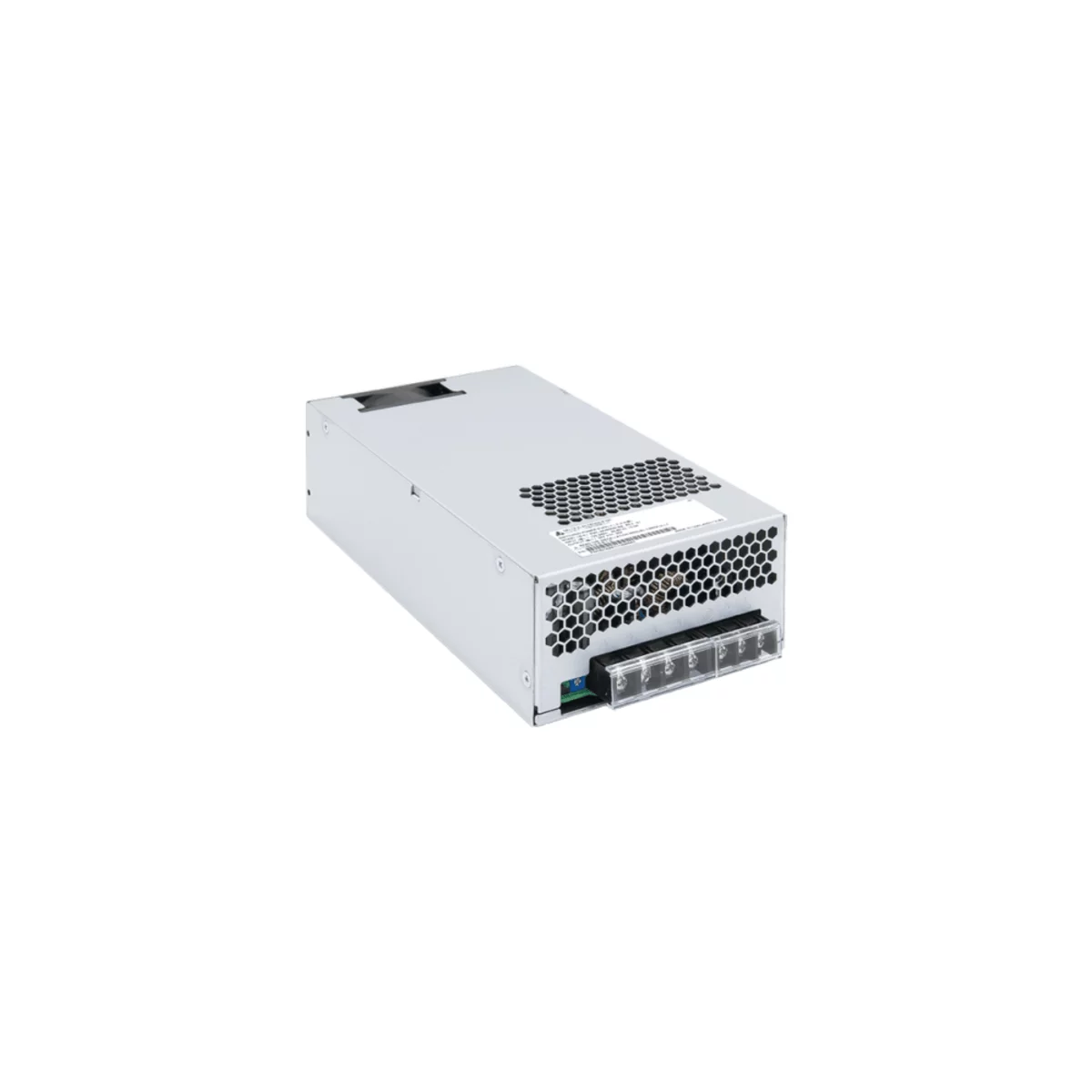

Power supply, 1Ph, 600W, Panel Mount, AC/DC, 24 Vdc, 25 A
PMC-24V600W1BA
Specifications
General Characteristics
| Power supply series | PMC |
|---|---|
| Type power supplies | AC/DC |
| Dimensions (WxHxD) | 120 x 215 x 61 |
| Special characteristics | With PFC, Front Face Connector |
| Applications | Industrial |
Electrical Parameters
| Adjustable Output Voltage | 21,6...27,6 Vdc |
|---|---|
| Output Power | 600 W |
| Output Current | 25 A |
| Phases | 1 |
| Input Voltage | 85…264 Vac |
| Input Voltage | 125…375 Vdc |
