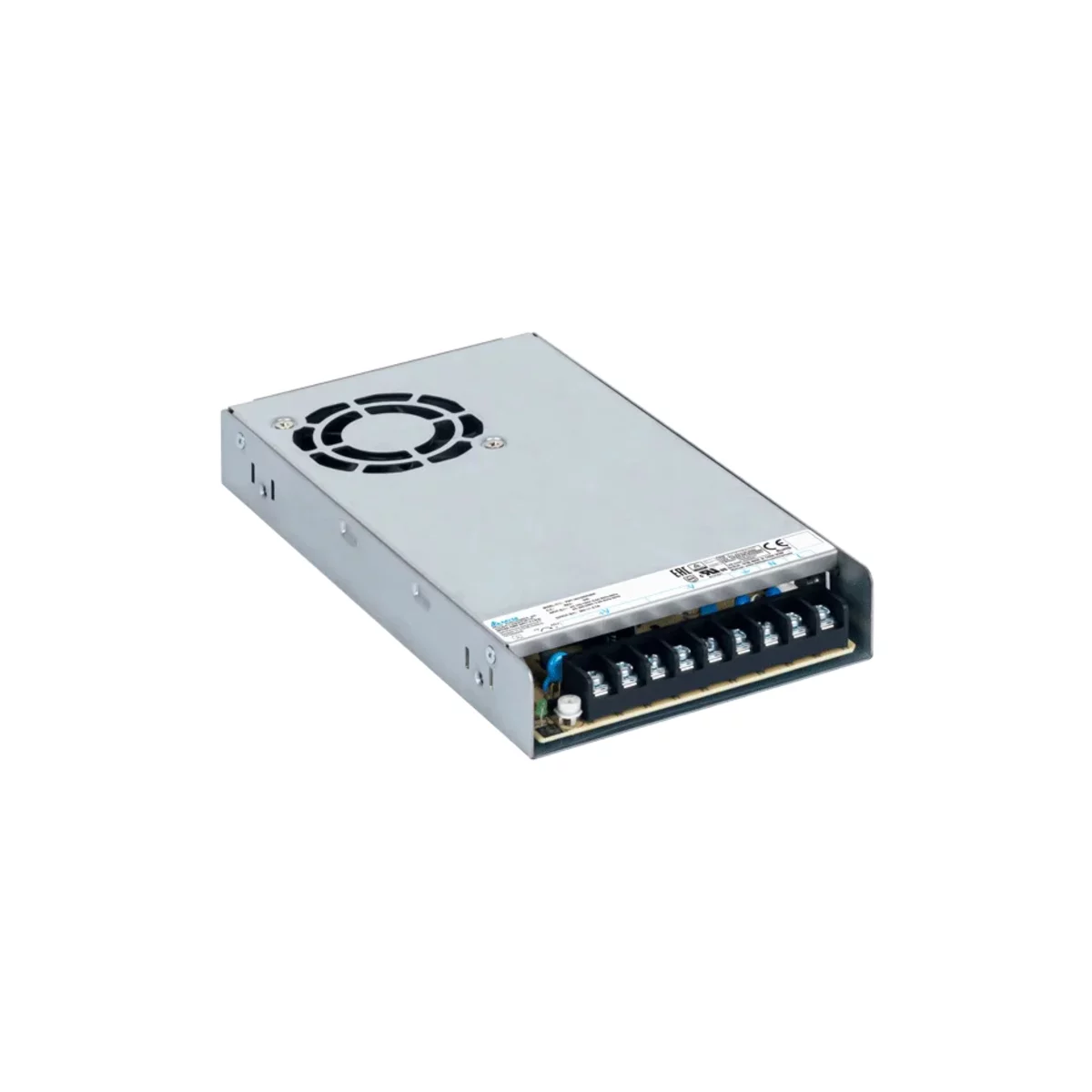

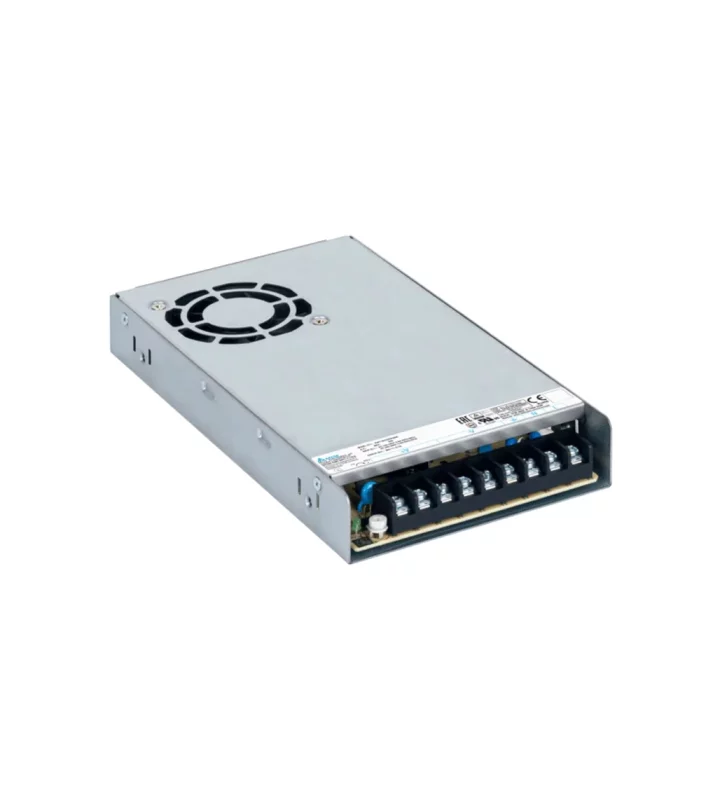

Power supply, 1Ph, 349,2W, Panel Mount, AC/DC, 36 Vdc, 9,7 A
PMT-36V350W2BRB
Specifications
General Characteristics
| Power supply series | PMT2 |
|---|---|
| Type power supplies | AC/DC |
| Dimensions (WxHxD) | 215 x 115 x 30 |
| Applications | Household | Industrial |
Electrical Parameters
| Adjustable Output Voltage | 32,4...39,6 Vdc |
|---|---|
| Output Power | 349.2 W |
| Output Current | 9.7 A |
| Phases | 1 |
| Input Voltage | 90...132, 180...264 (Selectable by Switch) Vac |
| Input Voltage | 127…375 Vdc |
