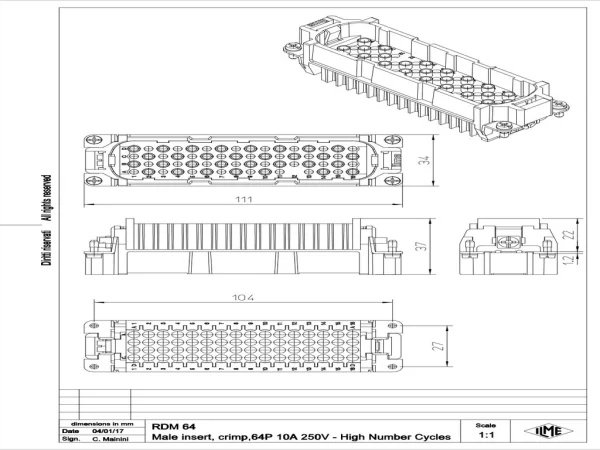

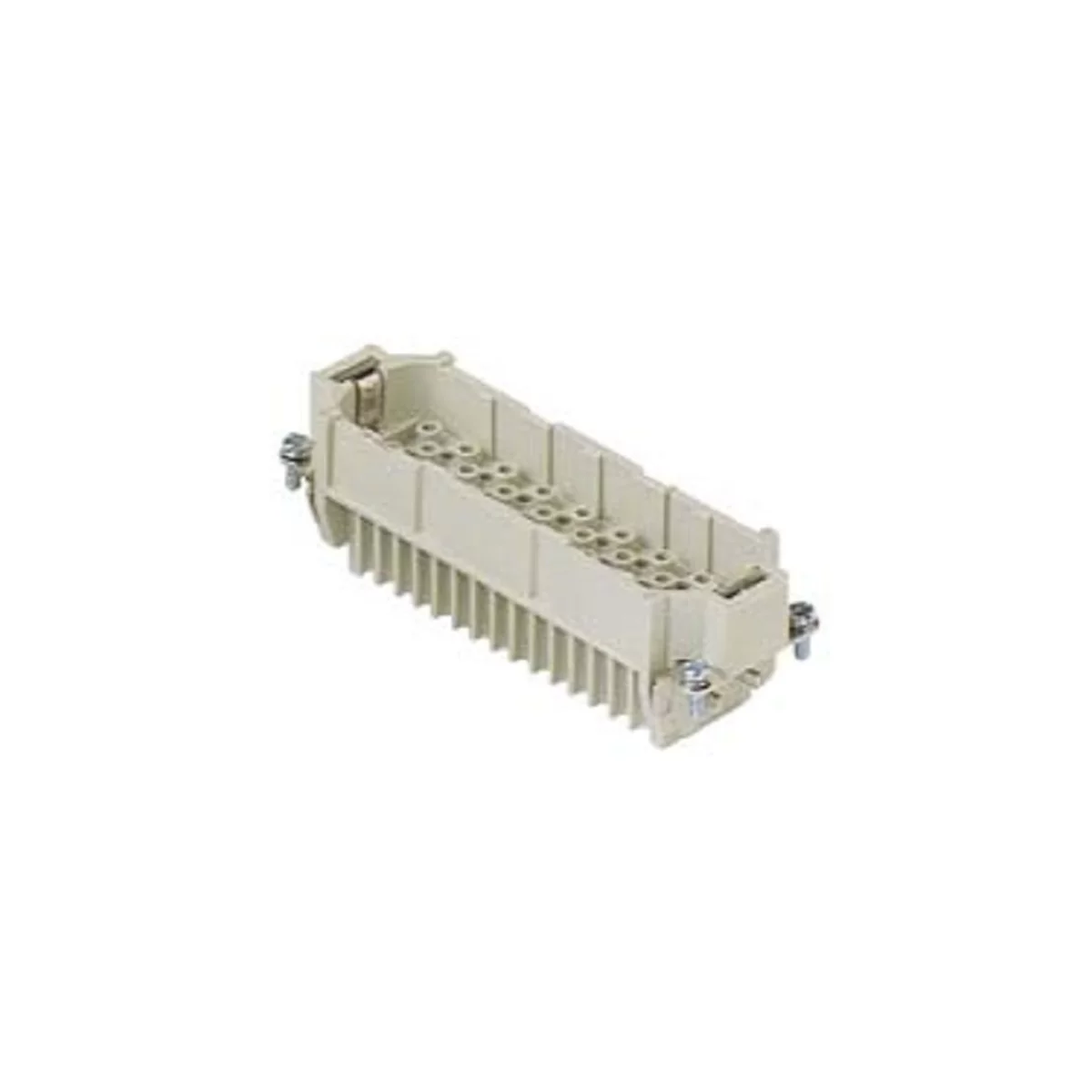

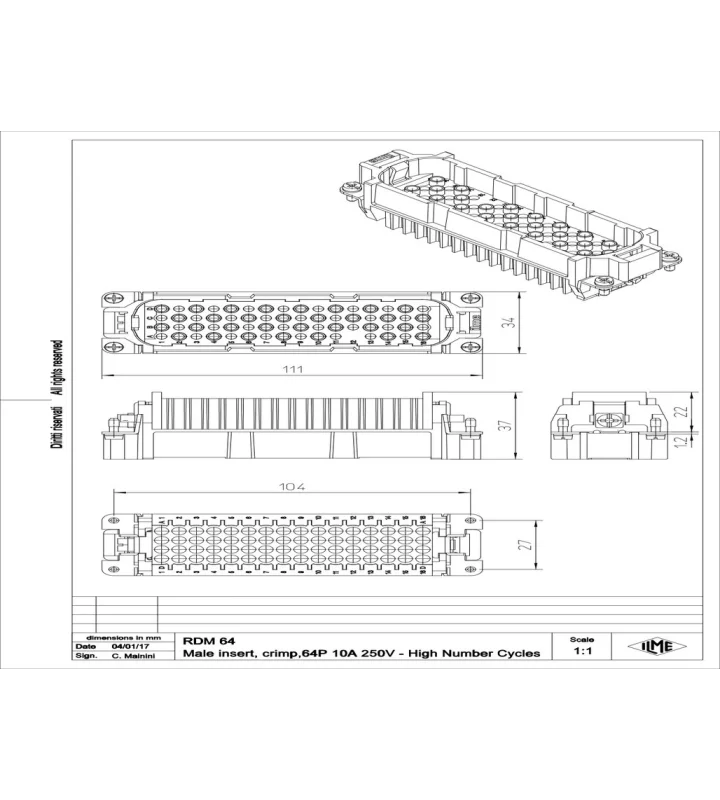

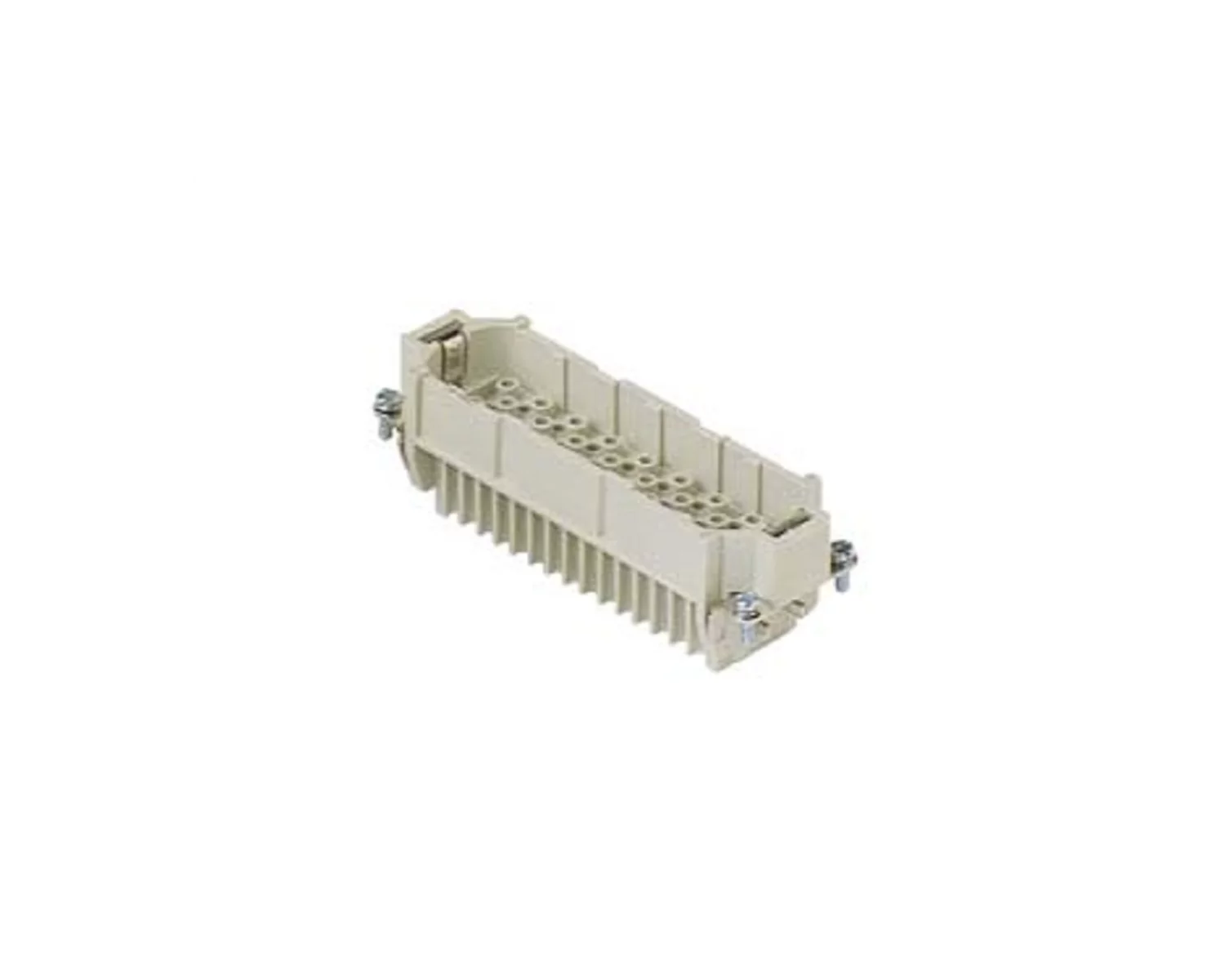

male insert, size 104.27, 64p+PE, crimp, 10A, 250V, HNM
RDM 64
Continue assembling your connector
Add the desired housings and contacts to fully configure your connector.
Specifications
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | RD (HNM) |
| Number of contacts | 64 + PE |
| Number of poles | 64 |
| Connection type | Crimp connection |
| Gender | Male |
| Size | 104.27 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 26 |
| AWG-range 2 | 14 |
| Min. Cross section | 0.14 mm² |
| Max. Cross section | 2.5 mm² |
| Diameter male contact | 1.6 mm |
| Colour | Grey |
| Extra information | Contact inserts without contacts |
| Remark | 10.000 matings with HNM enclosures / 5.000 matings with standard enclosures, single lever |
Electrical parameters
| Max. rated current | 10 A |
|---|---|
| Nominal rated voltage | 250 V |
| Rated surge voltage | 4 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
