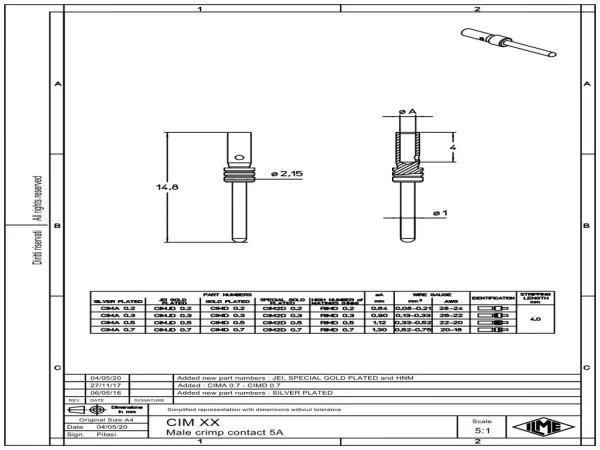

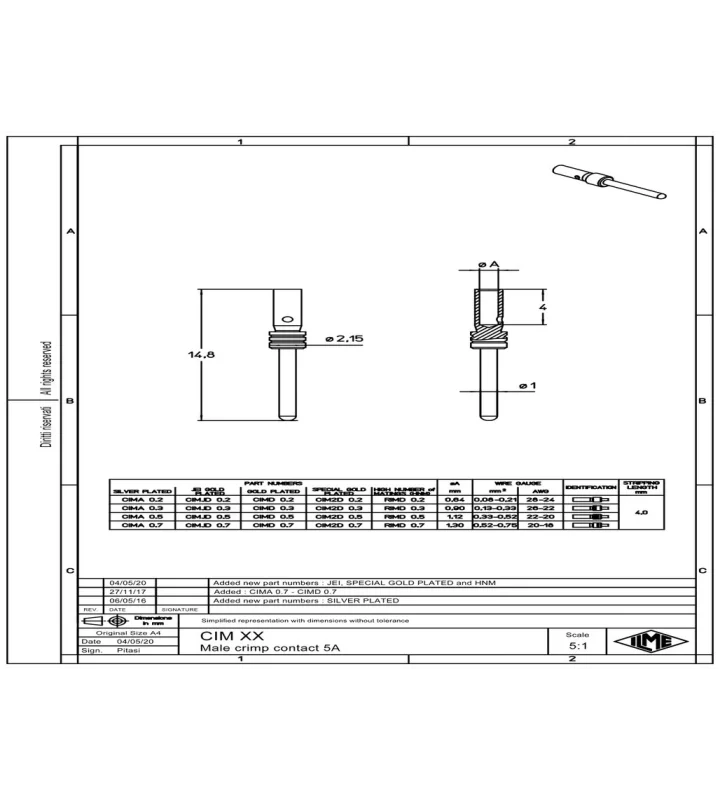

male contact, 0,52-0,75mm², gold HNM, crimp, 5A, series CI
RIMD 0.7
Specifications
General characteristics
| Connection type | Turned crimp |
|---|---|
| Contact type (gender) | Male |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Min. Cross section | 0.52 mm² |
| Max. Cross section | 0.75 mm² |
| AWG size | 20 - 18 |
| Diameter male contact | 1 mm |
| Wire strip length | 4 mm |
Electrical parameters
| Max. rated current | 5 A |
|---|
Material
| Material contact | Brass |
|---|---|
| Plating of contact | Gold |
