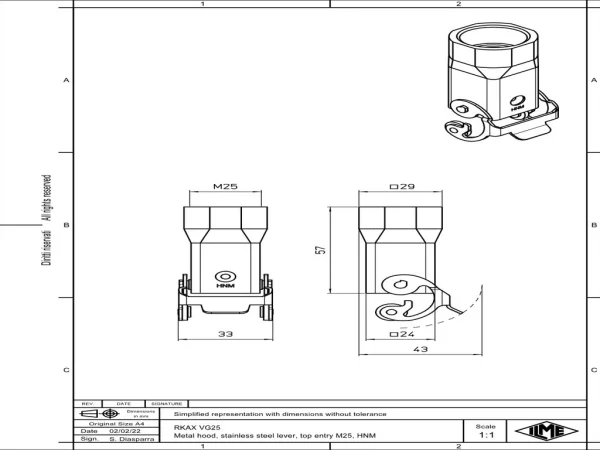

hood, size 21.21, HNM alu, 1 lever stainless steel, 1xM25 top

RKAX VG25

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	21.21
Enclosure series	HNM - High Number of Matings
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	top cable entry
Cable entry size	M25
Position cable feed	Top entry
Height	57 mm
Width	24 mm
Length	33 mm

Material housing	Die cast aluminium alloy
Coating housing	With epoxy-polyester thermosetting powder coating
Inflammability class of insulation material acc. with UL94	V2
