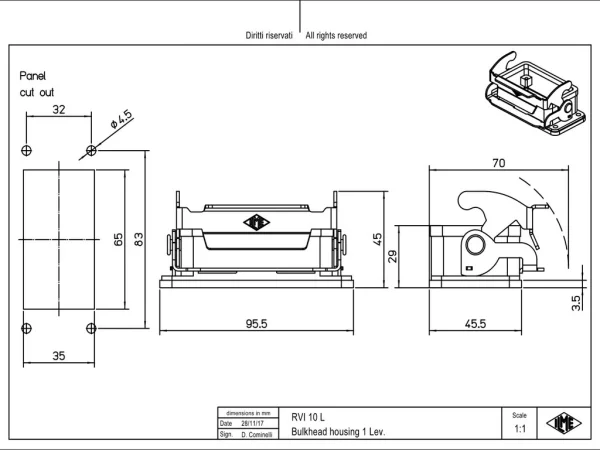

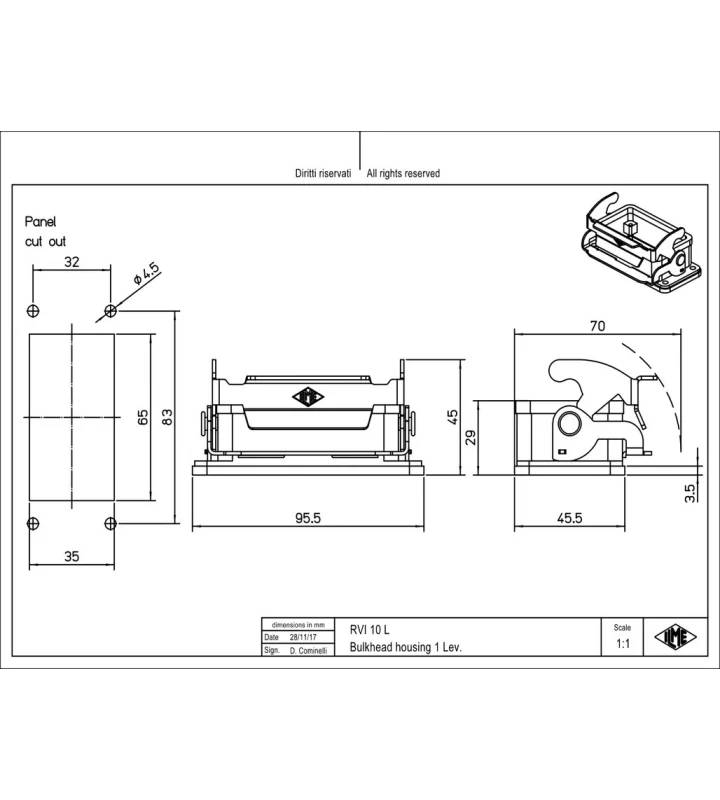

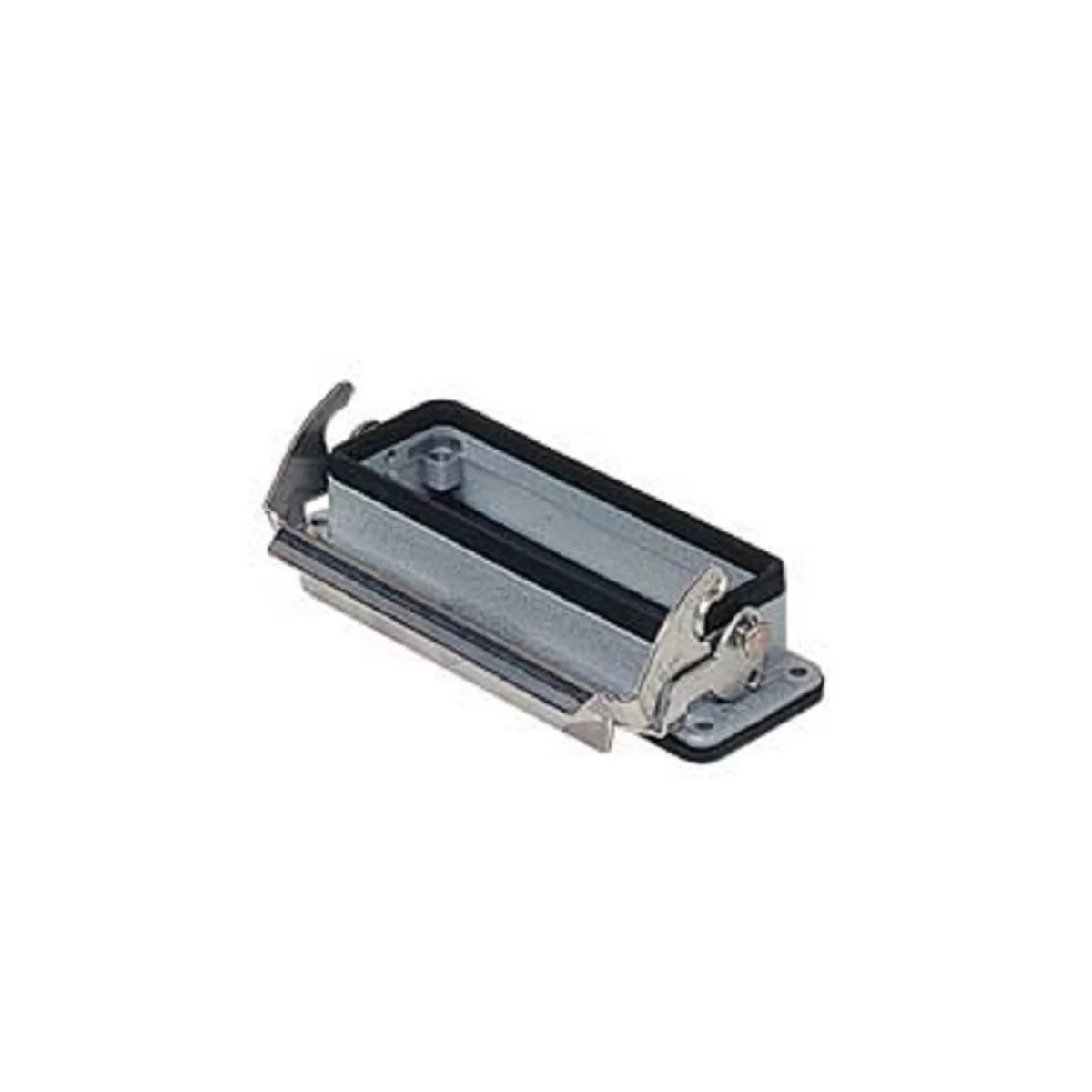

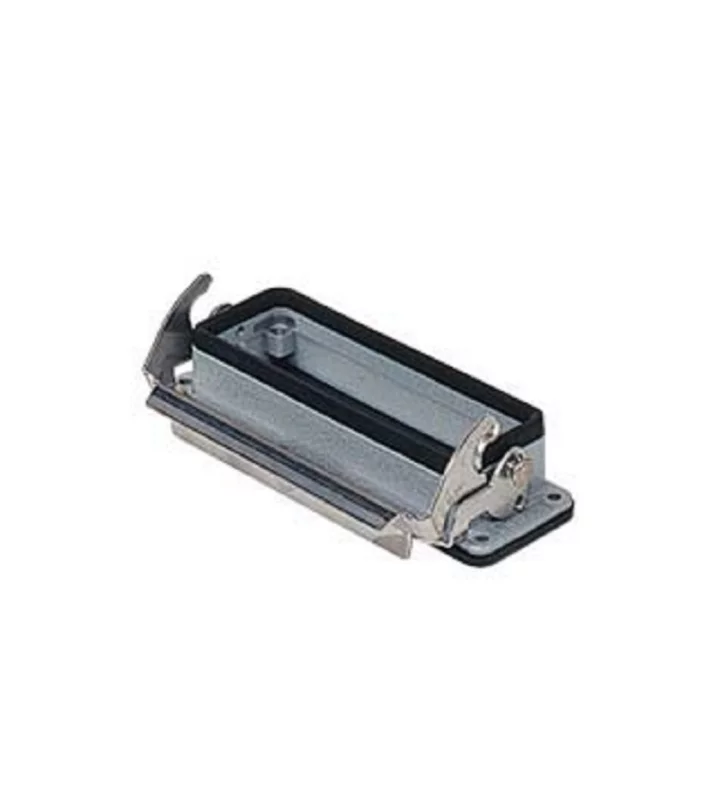

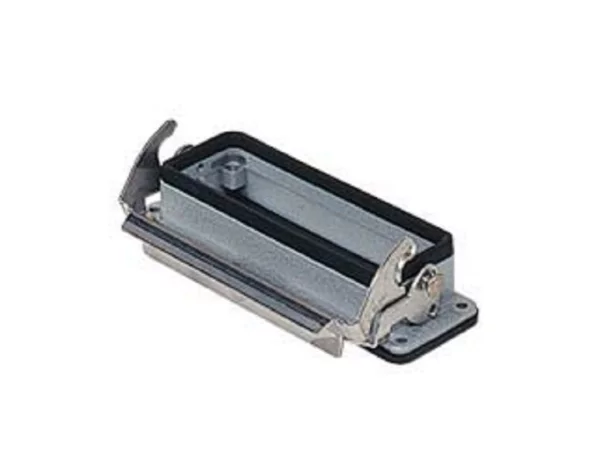

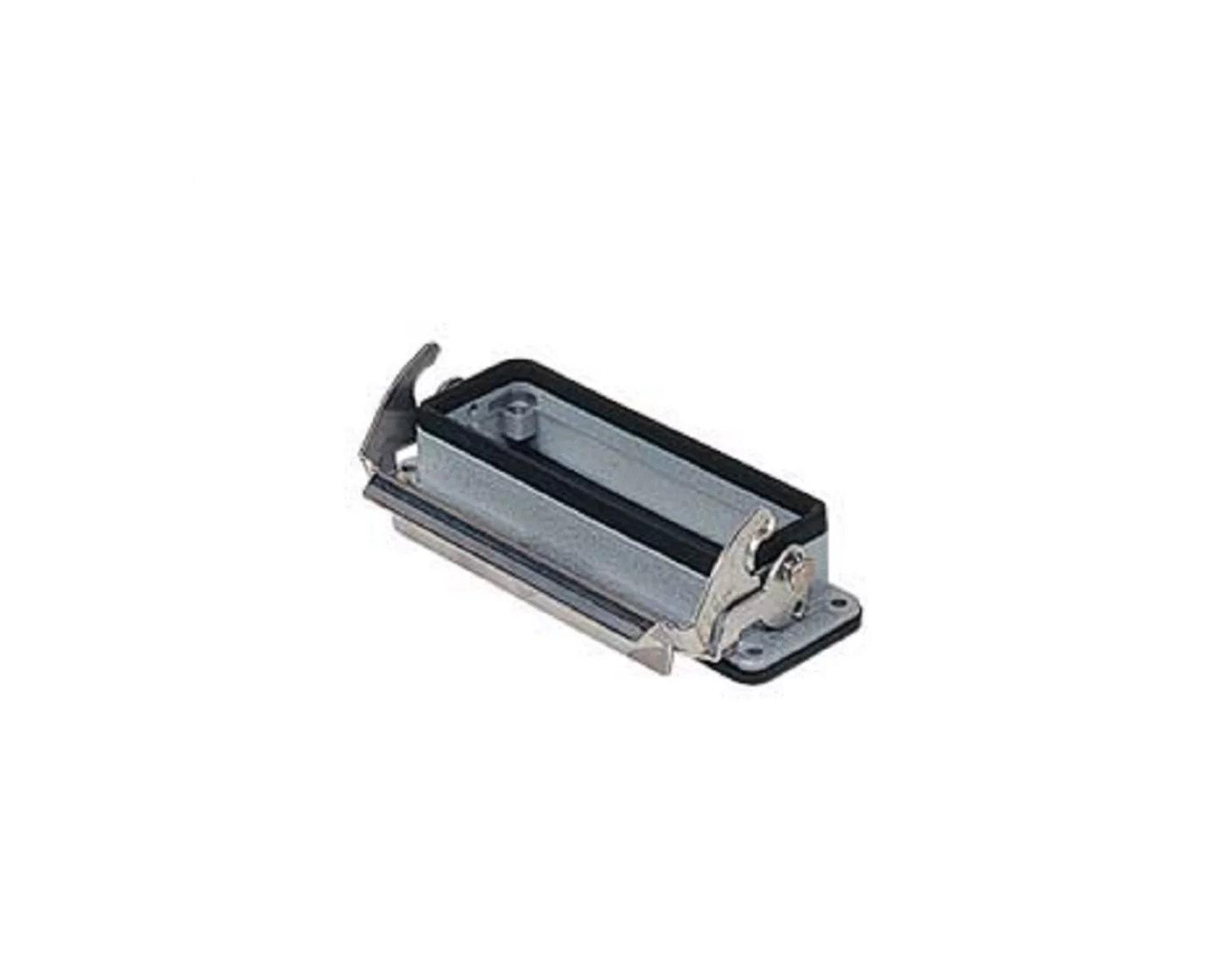

bulkhead mounting housing, size 57.27, HNM alu, 1 lever

RVI 10 L

Add the desired standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	57.27
Enclosure series	HNM - High Number of Matings
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP65 / IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry
Height	29 mm
Width	45.5 mm
Length	95.5 mm
Remark	10.000 mating with HNM inserts

Material housing	Die cast aluminium alloy
Coating housing	With epoxy-polyester thermosetting powder coating
Inflammability class of insulation material acc. with UL94	V2
