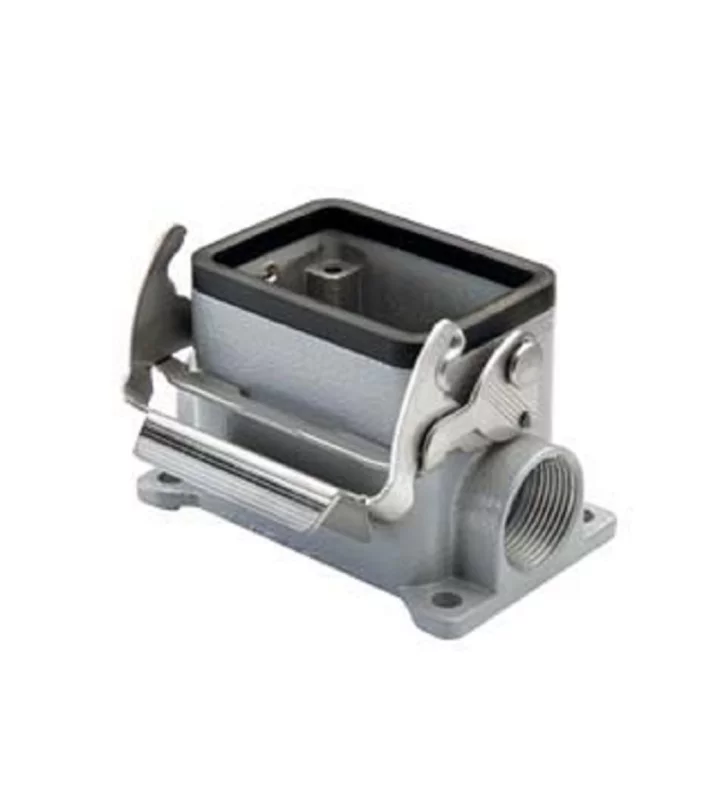

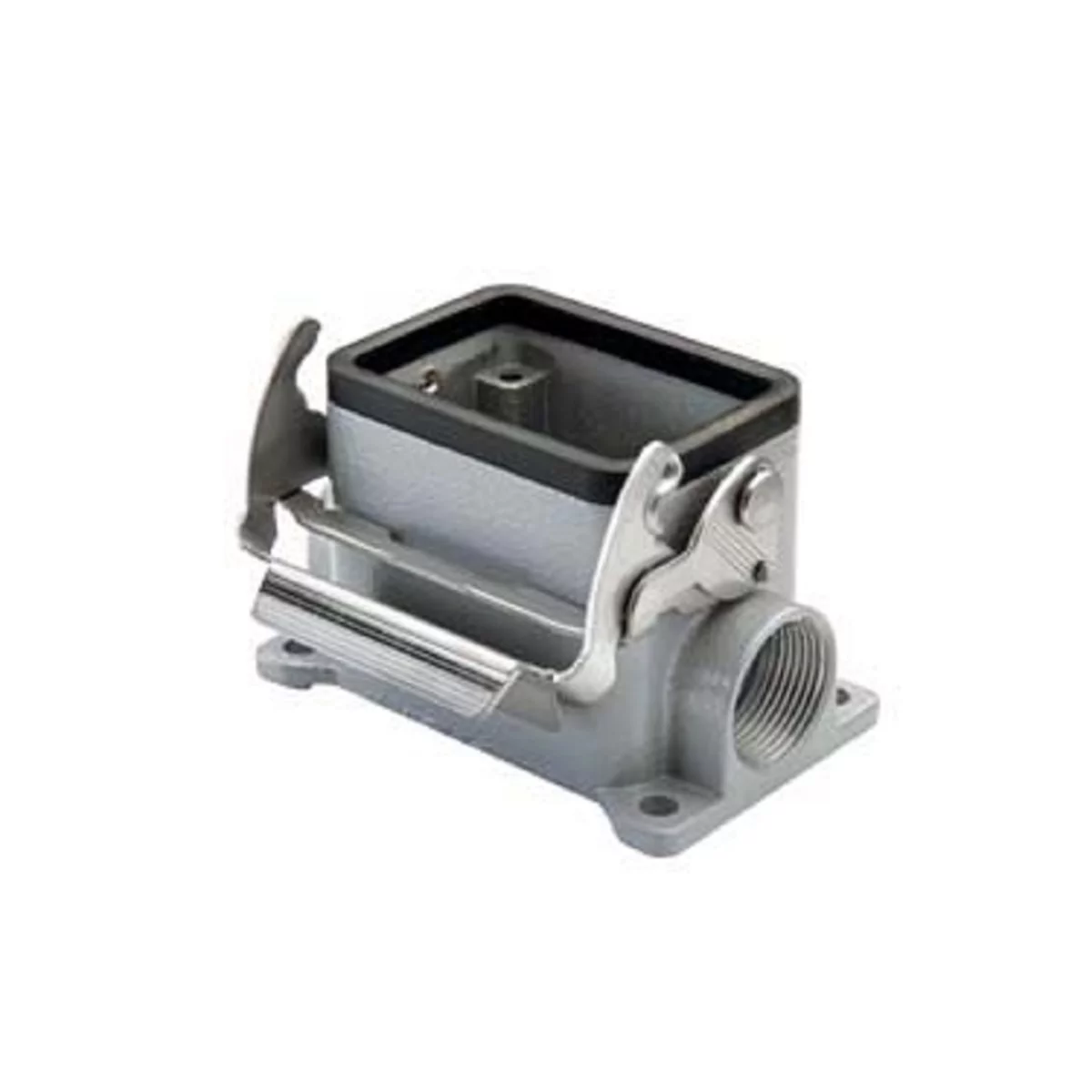

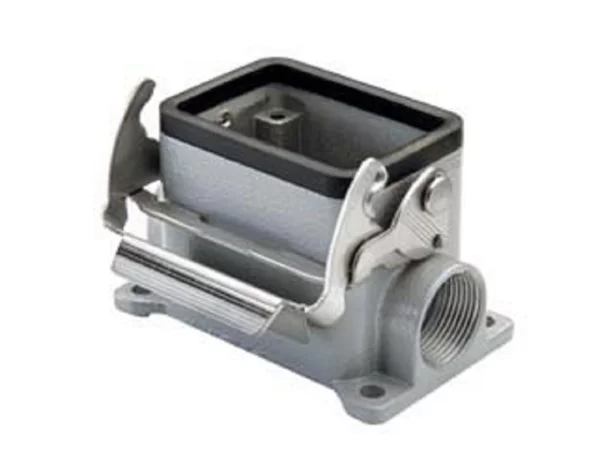

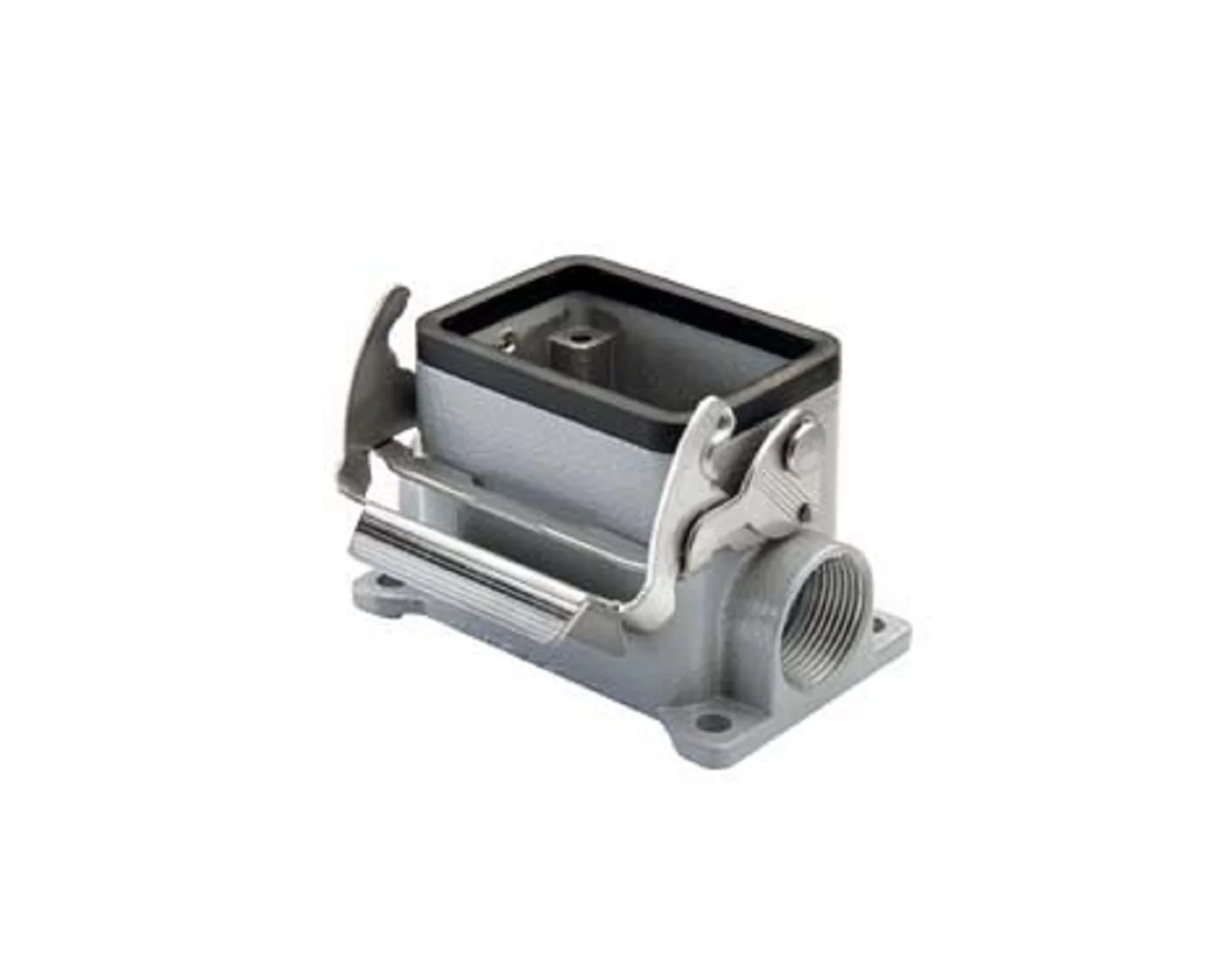

surface mounting housing, size 44.27, HNM alu, 1 lever, 1xM20 side

RVP 06 L20

Add the desired standard inserts to fully configure your connector.

Enclosure type	Surface mounting housing
Size	44.27
Enclosure series	HNM - High Number of Matings
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP65 / IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	side cable entry
Cable entry size	M20
Position cable feed	Side entry

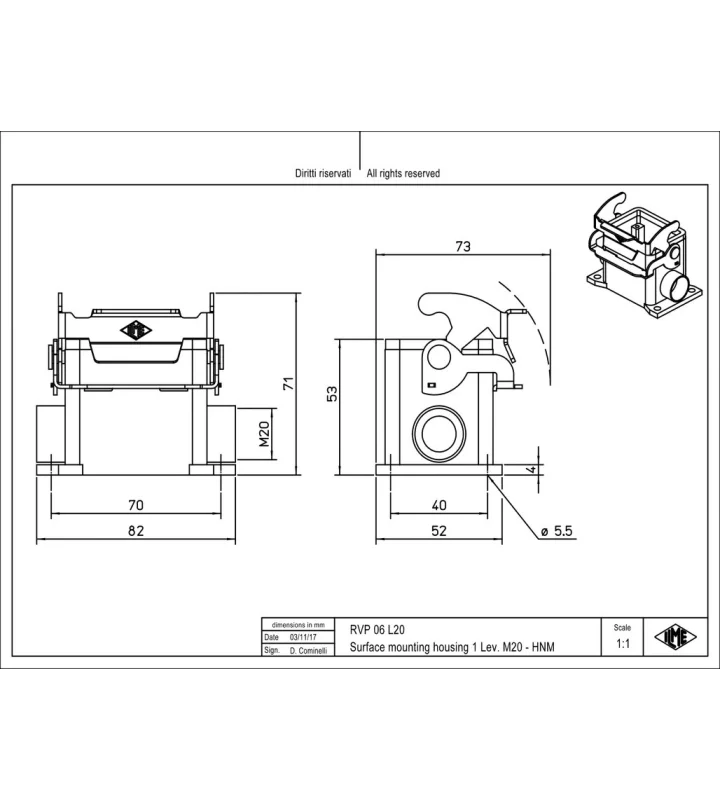

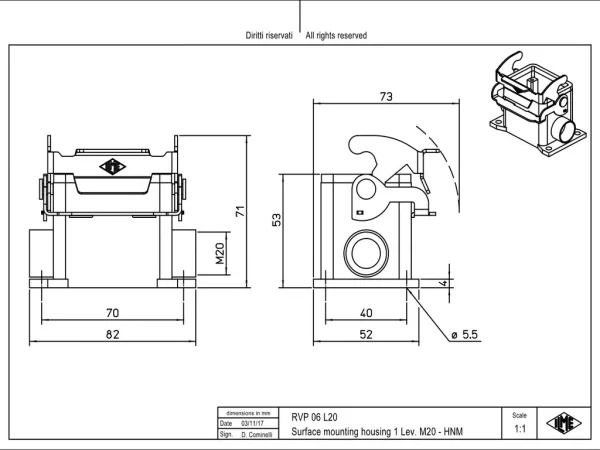

Height	53 mm
Width	52 mm
Length	82 mm
Remark	10.000 mating with HNM inserts

Material housing	Die cast aluminium alloy
Coating housing	With epoxy-polyester thermosetting powder coating
Inflammability class of insulation material acc. with UL94	V2
