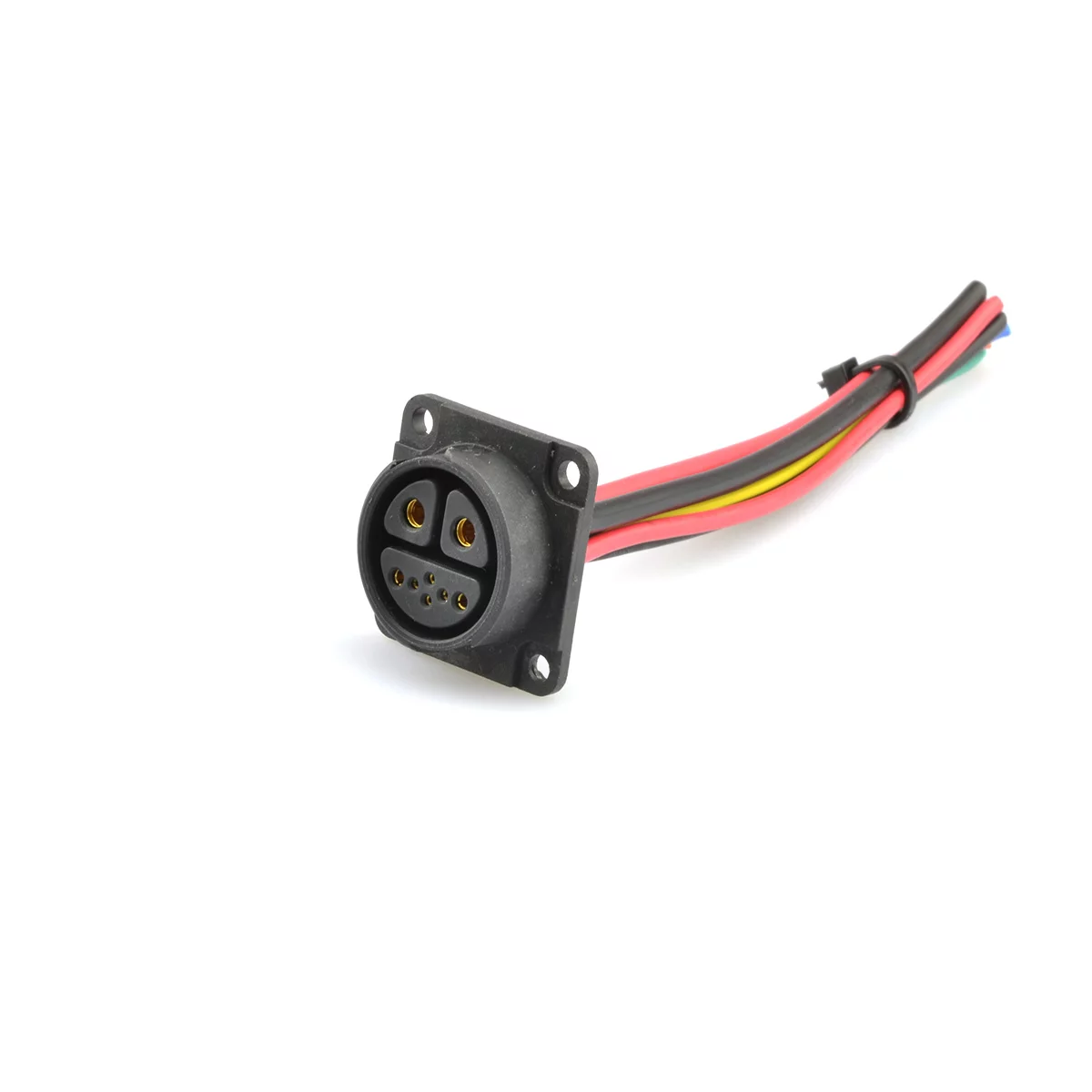

Female panel mount connector, self-locking
S828AM C 03 FN 0300
Specifications
General Characteristics
| Number of contacts | 8 (2+2+4) |
|---|---|
| Connector shape | Panel mount |
| Gender | Female |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IP67 |
| Mating cycles | 3000 Times |

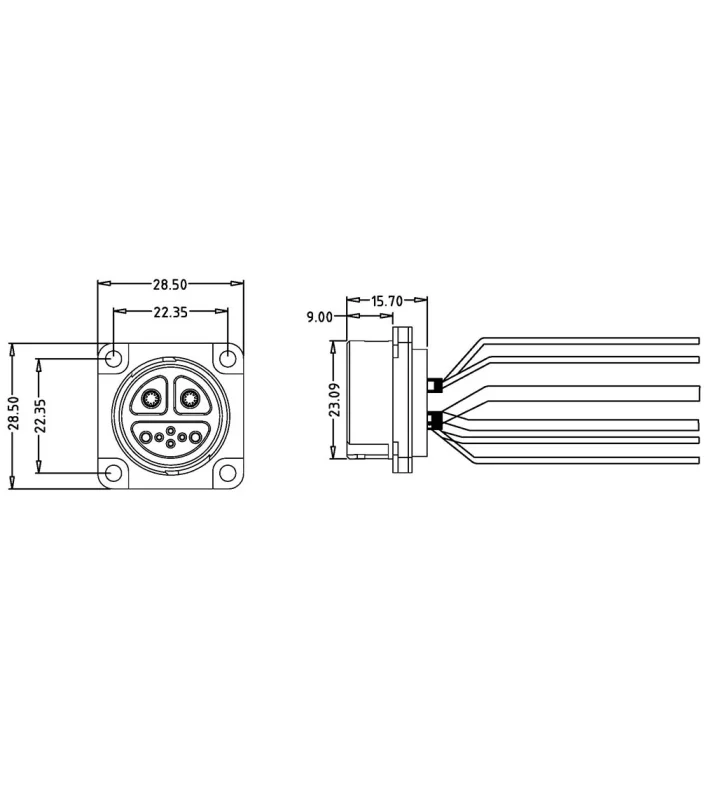

| Connector diameter | 28,5 mm |
| Cable Length | 300 mm |
| Wire section | 2 x 2,5 + 2 x 1,3 + 4 x 0,2 |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 25 / 10 / 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 mΩ |
Material
| Material of contact | Phosphor Bronze |
|---|---|
| Contact plating | Gold over Nickel |
