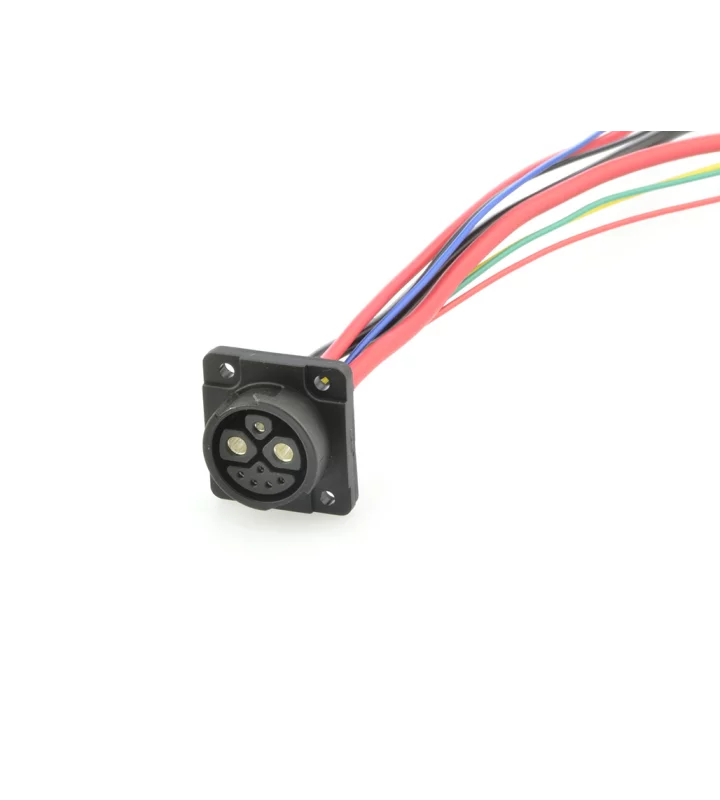

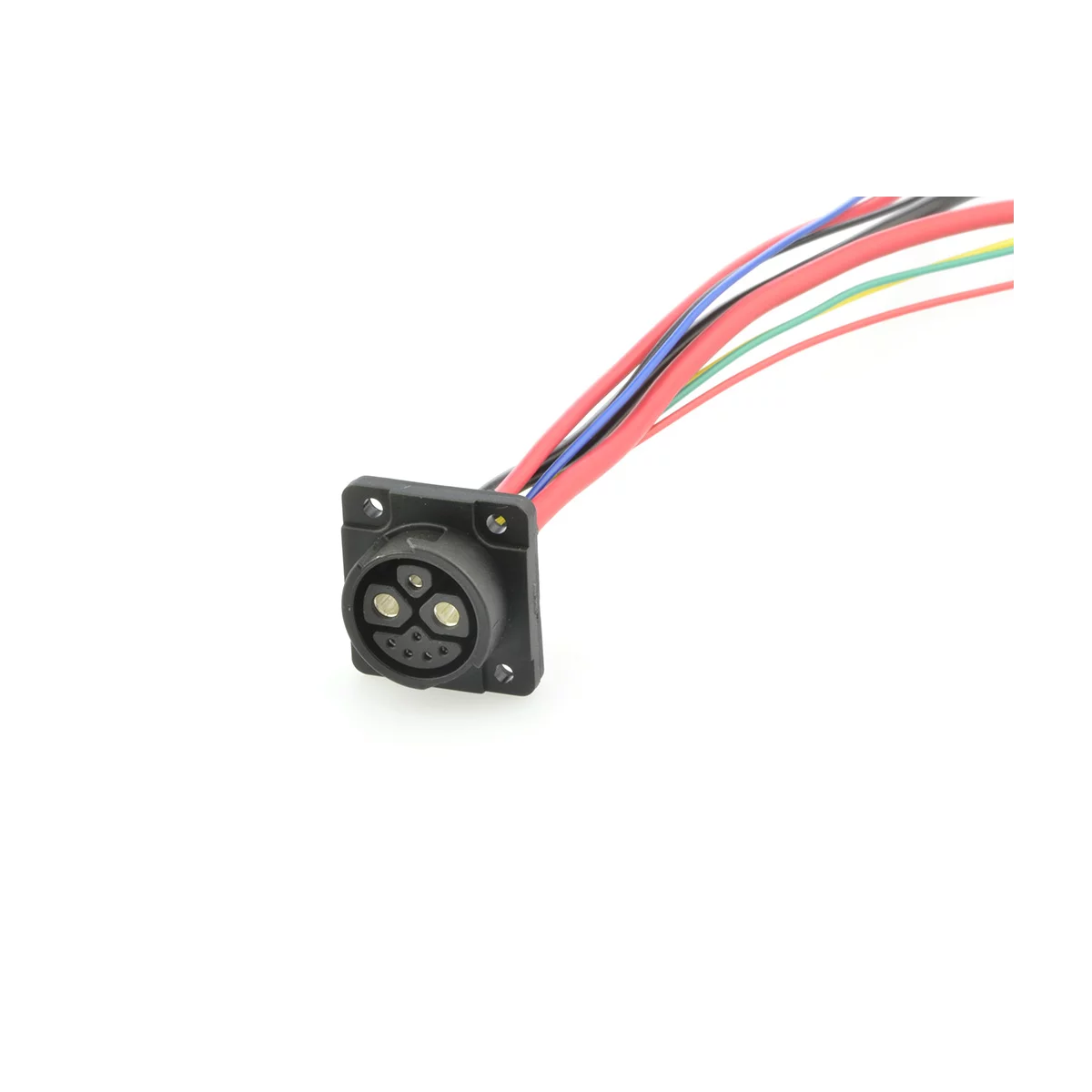

Female panel mount connector
Charging & discharging in 1
S828BM C 03 GX 0300
Specifications
General Characteristics
| Connector shape | Panel mount |
|---|---|
| Gender | Female |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IP67 |
| Locking | Self-locking |
| Mating cycles | 3000 Times |

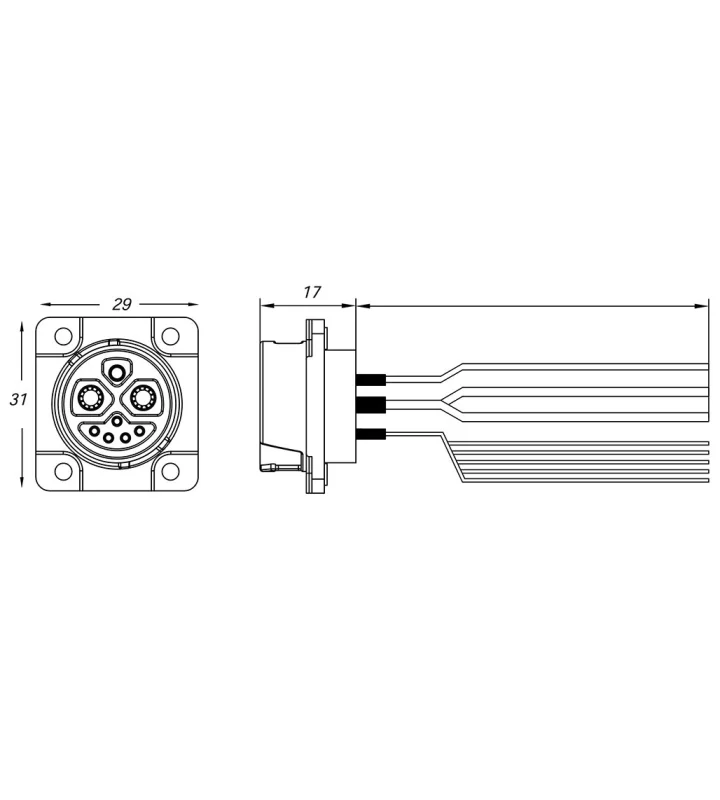

| Connector diameter | 29,0 x 31,0 mm |
| Cable Length | 300 mm |
| Wire section | 2 x 5.0 + 1 x 0.82 + 5 x 0.3 |
Electrical Parameters
| Rated current | 50 / 12 /2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 mΩ |
Material
| Insulation wire | PVC |
|---|---|
| Material of contact | 8 (2+1+5) Phosphor Bronze |
| Contact plating | Silver plated |
Variations
| Item number | Terminal type | Wire section | Application | Remark |
|---|---|---|---|---|
| S828BM C 03 GM 0300 | 2 x 4,0 + 1 x 0,82 + 5 x 0,2 | E-Bike | E-Cargo Bike | E-Moped | E-Scooter | Other cable length/type on request |
